Airstream 2015 Flying Cloud - Page 96

Maintenance
8-26 Flying Cloud
25 Flying Cloud

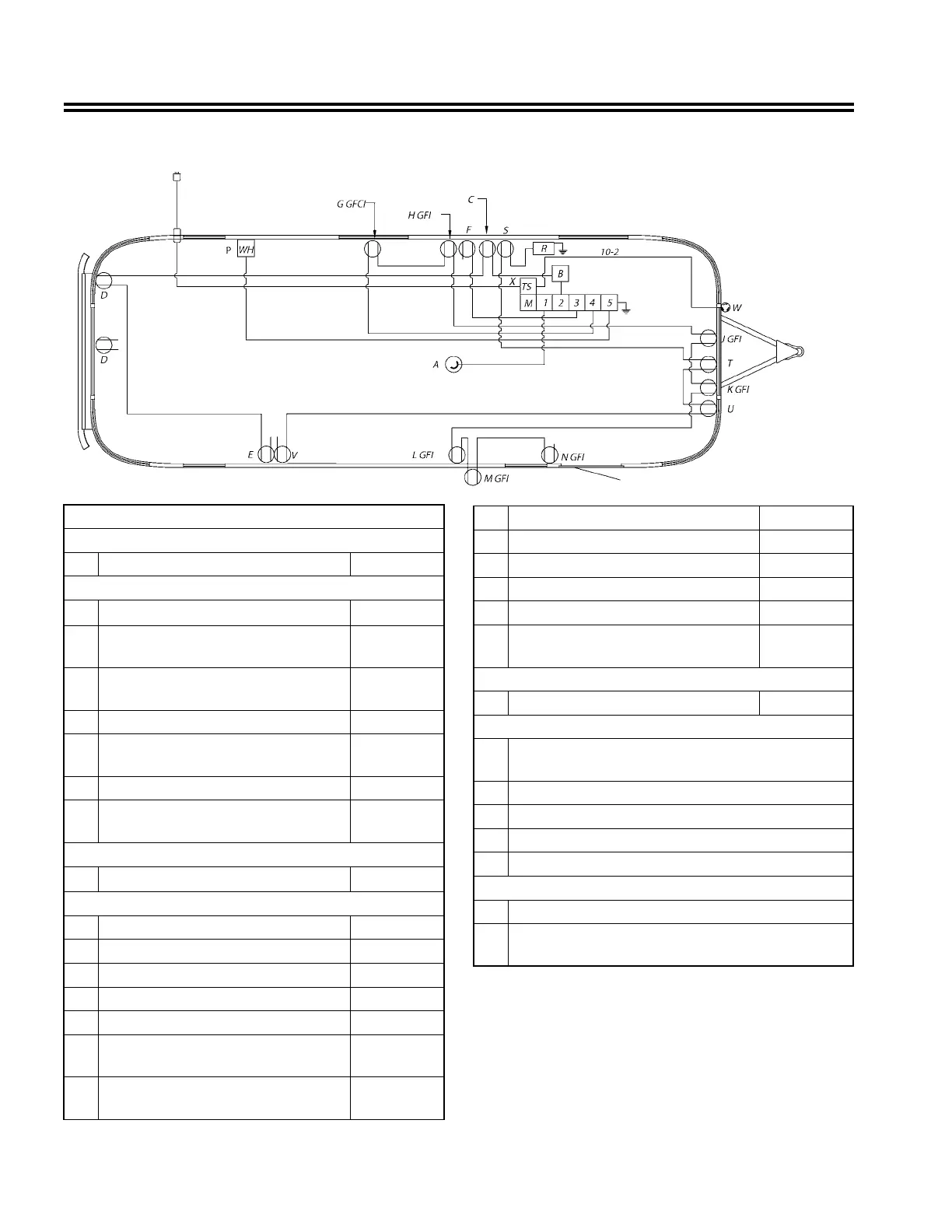

Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
C Lounge Area TV Receptacle
(Single)
1.5 Amps
C Lounge Area TV Receptacle
(Single) - CSA
1.0 Amps
D Roadside Bedroom Receptacle 1.5 Amps
D Curbside Bedroom Receptacle -
CSA
1.0 Amps
E Curbside Bedroom Receptacle 1.5 Amps
E Roadside Bedroom Receptacle -
CSA
1.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
F Microwave Receptacle 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
G Bathroom Receptacle (GFI) 1.5 Amps
G Bathroom Receptacle (GFI) - CSA 1.0 Amps
H Refer Receptacle (Single) 2.7 Amps
J Dinette Receptacle 1.5 Amps
J Dinette Receptacle - CSA 1.0 Amps
K Ded. Blu-Ray Disc Player
Receptacle
1.5 Amps
K Ded. Blu-Ray Disc Player
Receptacle - CSA
1.0 Amps
L Galley End Panel Receptacle 1.5 Amps
L Galley Receptacle - CSA 1.0 Amps
M Galley Receptacle 1.5 Amps
M Outside Receptacle - CSA 1.0 Amps
N Outside Receptacle 1.5 Amps
N Galley End Panel Receptacle -
CSA
1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
P Water Heater (Wired Direct) 12.0 Amps
Optional 5 Amp DC to AC Inverter Circuit
R 600 Watt Inverter, 7 Amp Breaker, 10 Amp
Transfer Switch
S Inverted TV Receptacle (Single)
T Inverted Dinette Receptacle
U Ded. Blu-Ray Disc Player Receptacle
V Inverted Bedroom TV Receptacle (Single)
Remote Generator Hookup Circuit
W 30 Amp Power Inlet
X 30 Amp Transfer Switch UL - CSA Rated
(Attached to back of Power Center)
