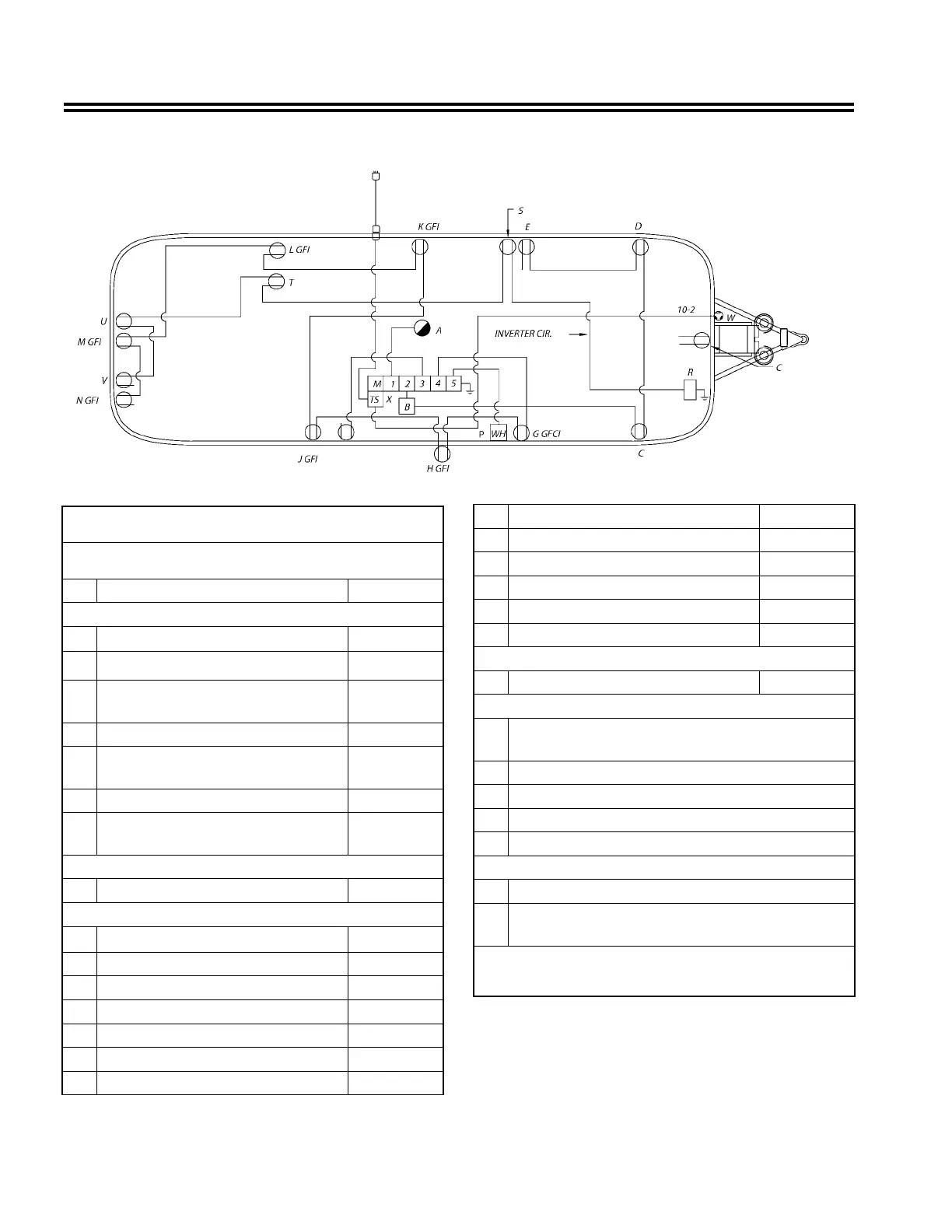

Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
C Curbside Bedroom Receptacle* 1.5 Amps
C Curbside Bedroom Receptacle -
CSA*
1.0 Amps
D Roadside Bedroom Receptacle* 1.5 Amps
D Roadside Bedroom Receptacle*
- CSA
1.0 Amps
E Roadside Bedroom TV Receptacle 1.5 Amps
E Roadside Bedroom TV Receptacle
- CSA
1.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
F Microwave Receptacle (Single) 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
G Bathroom Receptacle (GFI) 1.5 Amps
G Bathroom Receptacle (GFI) - CSA 1.0 Amps
H Outside Receptacle 1.5 Amps
H Outside Receptacle - CSA 1.0 Amps
J Galley Receptacle 1.0 Amps
J Galley Receptacle - CSA 1.5 Amps
K Refer. Receptacle (Single) 2.7 Amps
L Lounge Area TV Receptacle 1.5 Amps
L Lounge Area TV Receptacle - CSA 1.0 Amps
M Dinette Receptacle 1.5 Amps
M Dinette Receptacle - CSA 1.0 Amps
N Blu-Ray Player Receptacle 1.5 Amps
N Blu-Ray Player Receptacle - CSA 1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
P Water Heater (Wired Direct) 12.0 Amps
Optional 5 Amp DC to AC Inverter Circuit
R 600 Watt Inverter, 7 Amp Breaker, 10 Amp
Transfer Switch
S Inverted Bedroom TV Receptacle (Single)
T Inverted TV Receptacle (Single)
U Inverted Dinette Receptacle
V Inverted Blu-Ray Player Receptacle
Remote Generator Hookup Circuit
W 30 Amp Power Inlet
X 30 Amp Transfer Switch UL - CSA Rated
(Attached to back of Power Center)
*Not On Twin Models
(Forward Center C For Twin Model Only)
