Page 12

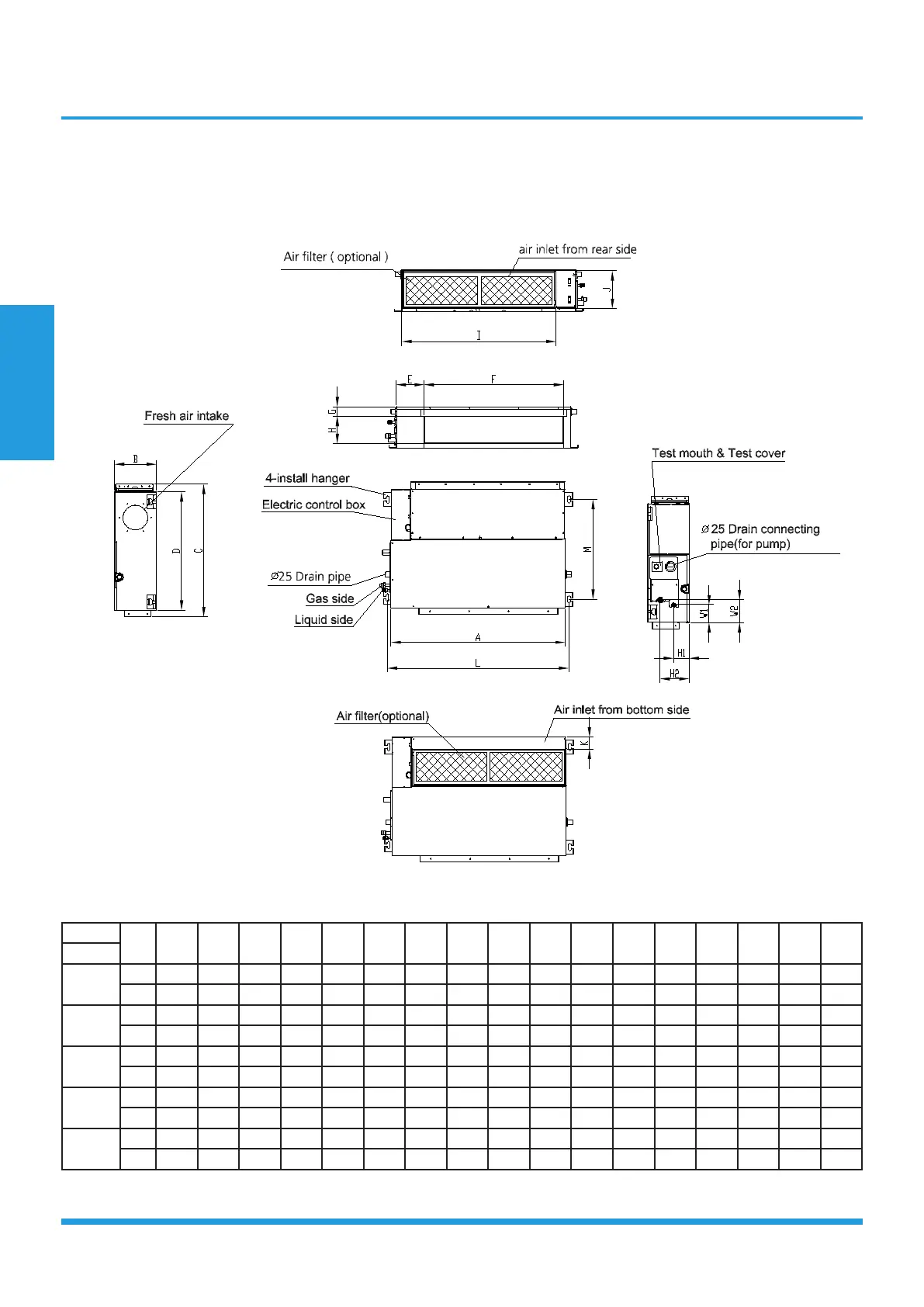

3. Dimensional Drawings
3.1 Indoor Unit
Model
unit A B C D E F G H I J K L M H1 H2 W1 W2
(KBtu/h)
12
mm 700 200 506 450 137 537 30 152 599 186 50 741 360 84 140 84 84
inch 27.6 7.9 19.9 17.7 5.4 21.1 1.2 6.0 23.6 7.3 2.0 29.2 14.2 3.3 5.5 3.3 3.3
18
mm 880 210 674 600 140 706 50 136 782 190 40 920 508 78 148 88 112
inch 34.65 8.27 26.54 23.62 5.51 27.8 1.97 5.35 30.79 7.48 1.57 36.22 20 3.07 5.83 3.46 4.41
24
mm 1100 249 774 700 140 926 50 175 1001 228 5 1140 598 80 150 130 155
inch 43.31 9.80 30.47 27.56 5.51 36.46 1.97 6.89 39.41 8.98 0.2 44.88 23.54 3.15 5.91 5.12 6.10
30/36
mm 1360 249 774 700 140 1186 50 175 1261 228 5 1400 598 80 150 130 155
inch 53.54 9.80 30.47 27.56 5.51 46.69 1.97 6.89 49.65 8.98 0.2 55.12 23.54 3.15 5.91 5.12 6.10
42-60
mm 1200 300 874 800 123 1044 50 227 1101 280 5 1240 697 80 150 185 210
inch 47.24 11.81 34.41 31.5 4.84 41.1 1.97 8.94 43.35 11.02 0.2 48.82 27.44 3.15 5.91 7.28 8.27
