3

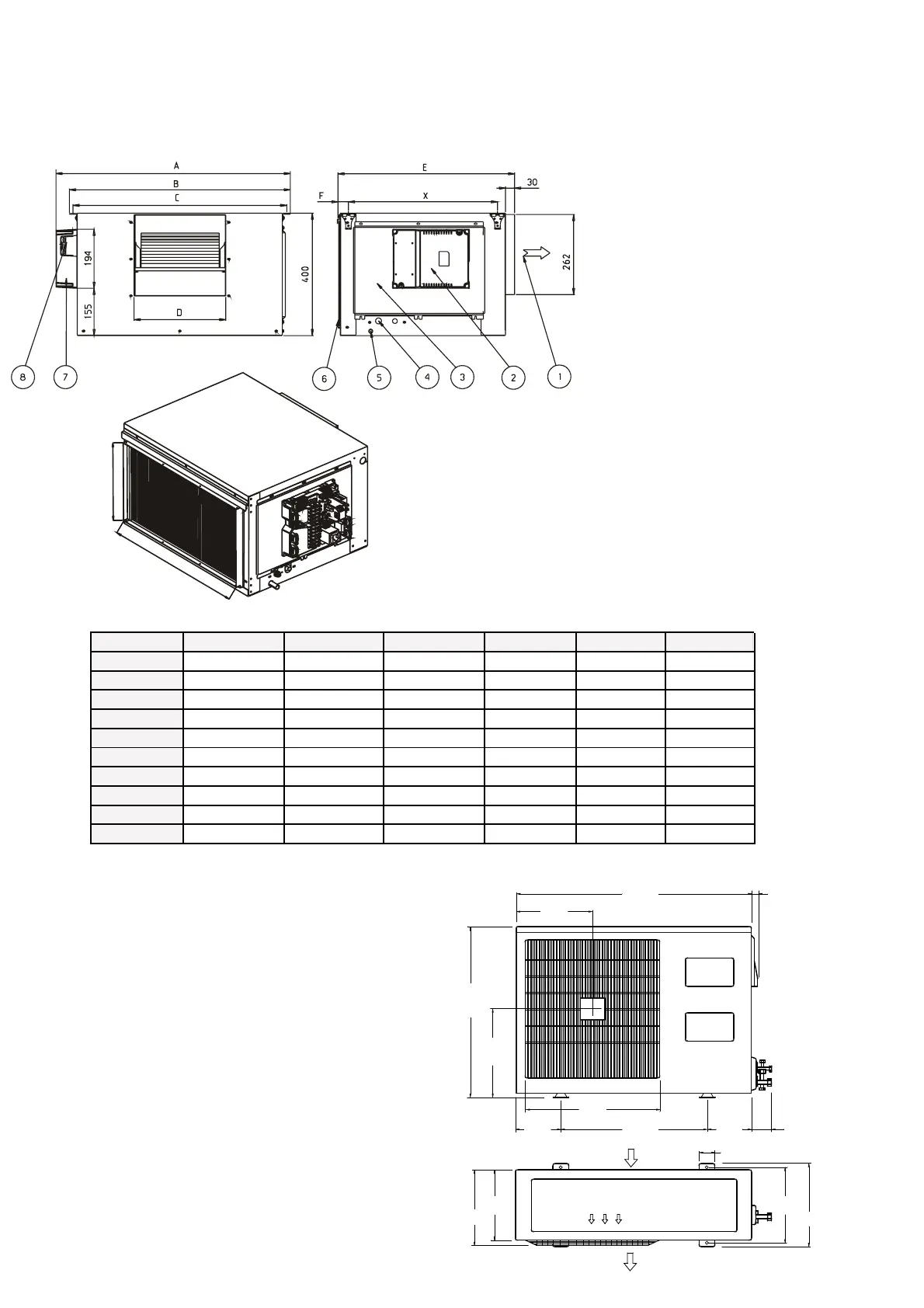

3. DIMENSIONAL DRAWINGS
INDOOR UNIT (Evaporator) - right side connection
1. Air Supply
2. Electrical Box
3. Access Panel
4. Refrigeration Tubing
Port
5. Drain Port - G (OD)
6. Return air spigots
7. Control Unit Port
8. Main Power Port
Figure 1. Indoor Unit Outline Dimensions & Return Air Spigot Connection Size
OUTDOOR UNIT (Condenser)
W
H
GC 24RCC-S
Dimensions DS 28 RCFA DS 30 RCFA DS 30 RCG DS 35 RCF DS 55 RCF
A 785 785 785 785 1140
B 755 755 755 755 1115
C 710 710 710 710 1085
D 300 300 300 300 335
E 595 595 595 595 680
F 25 25 25 25 340
G 3/4" 3/4" 3/4" 3/4" 3/4"
H 325 325 325 325 325
W 608 608 608 608 1021
X 490 490 490 490 340
DS 26 RCG
785
755
710
300
595
25
3/4"
325
608
490
845
690
545
490
AIR INTAKE
AIR OUTLET
330
50
302
350
151.5 151.5
370
300
325
15
45
DS 28 RCFA / GC 28 RCFA
DS 26
RCG / GC 24 RCC-S
DS 30 RCFA / GC 30 RCFA
DS 30 RCG / GC 30 RCC
DS 35 RCF / GC 34 RCC
DS 55 RCF / GC 55 RCFX
DS MAN. MENU
