Airwell RC4 User Manual

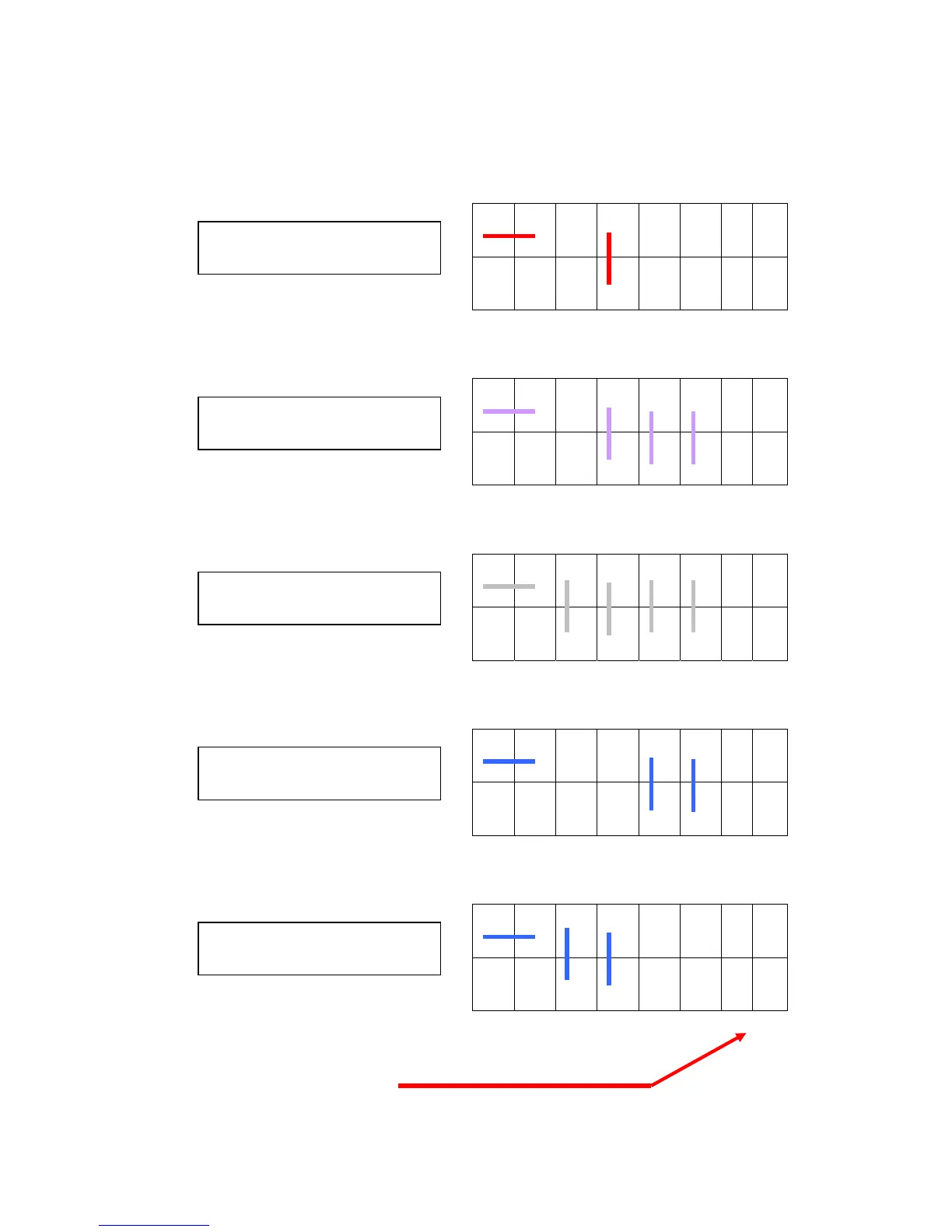

MODEL PLUGS
Unit types
J1
• • • • • • • •
• • • • • • • •
J7 J5 J4 J3 J8 J6 J2
J1
• • • • • • • •
• • • • • • • •
J7 J5 J4 J3 J8 J6 J2
J1
• • • • • • • •
• • • • • • • •
J7 J5 J4 J3 J8 J6 J2
J1
• • • • • • • •
• • • • • • • •
J7 J5 J4 J3 J8 J6 J2
J1
• • • • • • • •
• • • • • • • •
J7 J5 J4 J3 J8 J6 J2
J2 is Cooling Only – Reverse Cycle Designation!
J2 Shorted = Cooling Only.
J2 Opened = Reverse Cycle.
WS & WMN Wall Split
Red Loops J1-J7 & J4
DS & EMD Ducted Split
Purple Loops J1-J7, J4, J3 & J8
UA, K & ECF Cassette Split
Grey Loops J1-J7, J5, J4, J3 & J8
GS, PX & PRX Floor Console Split
Blue Loops J1-J7, J3 & J8
SX Floor Console Split
Blue Loops J1-J7, J5 & J4
Page 26
