Airwheel H3TS+ - User Instructions; Joystick Installation

- 3 -
1-1
User Instructions:

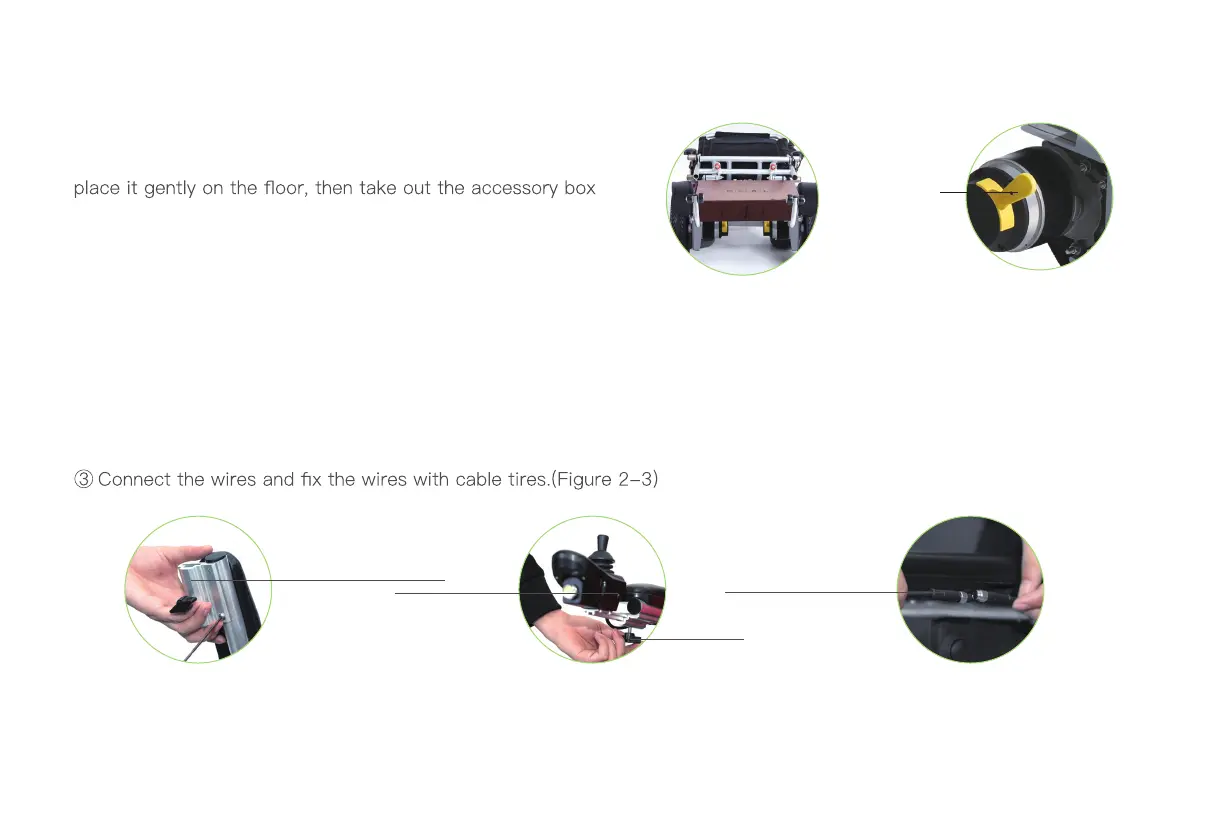

Open the wheelchair carton, take out the wheelchair and
at the rear of the wheelchair (see Picture1-1) and remove the
cardboard near the motor lock. Turn the motor lock to drive
mode (see Picture1-2). Contents in the paper box: a Charger,
controller, user manual, plastic tie and assembling tools etc.
1.Take out the accessory box at the
rear of the wheelchair
The joystick could be installed on the left or right armrest freely, accoridng to user's habit
① Fix the joystick groove with screw and tighten the screw (Figure 2-1)
② Insert the joystick into the groove and tighten the screw. (Figure 2-2)
2.Install the joystick
2-1 2-2 2-3
The joystick groove
The joystick
assembly
The joystick wiring
Screw
1-2
clutch
handle
