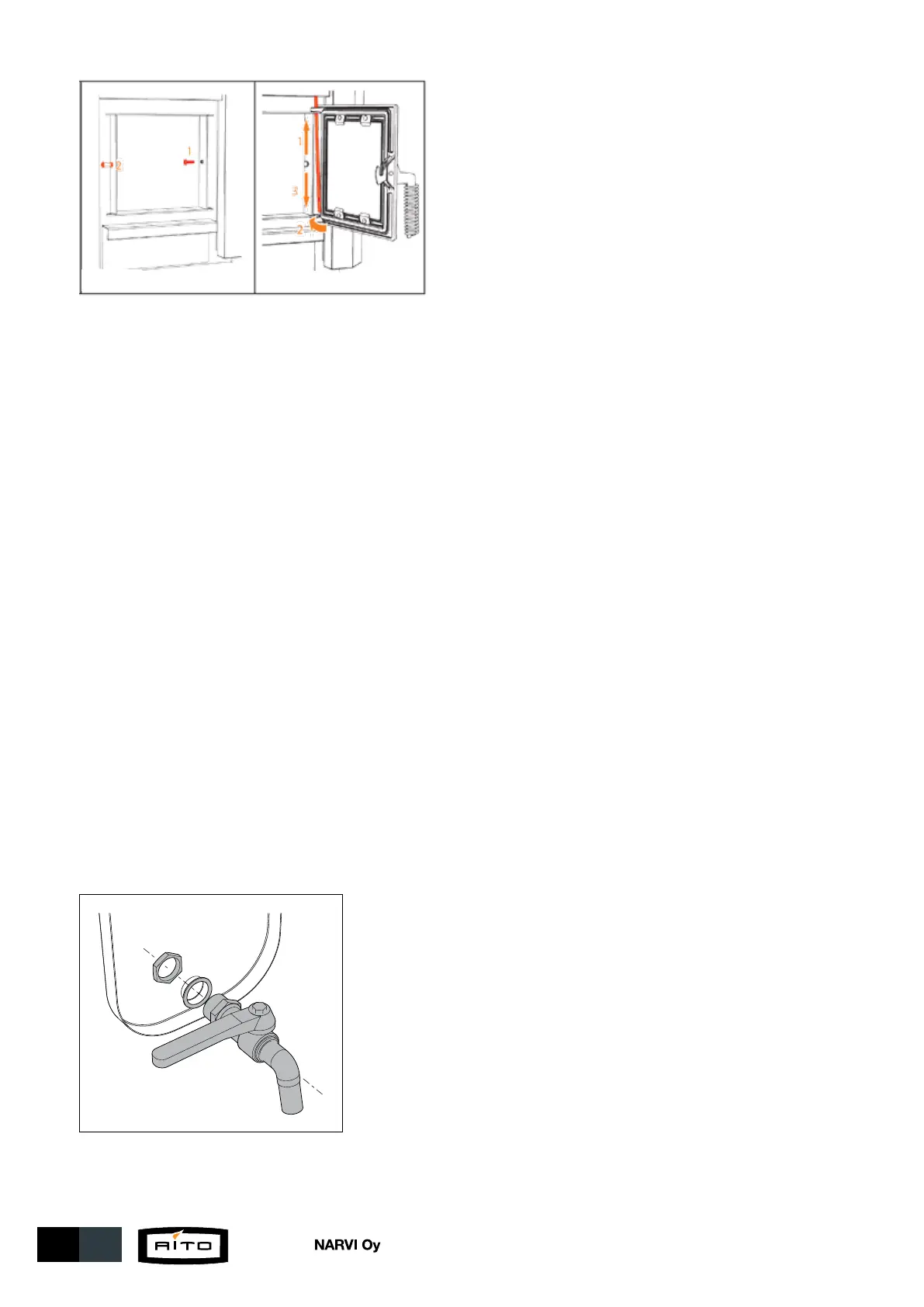

Figure 6. On the inside edge of the door opening, undo the
limiter screw on the hinge side (1). Release the locking pin
(2) on the outer edge of the rebox door on the handle side
(2) with the help of an 8-mm open-end wrench. Remember
the correct sequence of the parts. Attach the locking pin to
the opposite side of the door opening and tighten it with
the open-end wrench. Do not tighten the screw so much
that the bushing of the locking pin locks. Attach the limiter
screw to the opposite inner side of the door opening.
Figure 7. Position the door so that the hinge holes coincide
with the hinge pins. Position the hinge pin so that the lock-
ing tab comes down and push the hinge pin through the
upper hinge hole (1). Push the hinge pin through the hinge
holes in the bottom edge (2) and let it down into place (3)
on top of the locking tab. Carefully open the door. If the
door hits the water tank when it opens, tighten the limiter
screw. You can adjust the opening angle of the door with
the limiter screw. Make sure that the locking pin of the han-
dle is working properly and if necessary adjust it with an
open-ended wrench.
3.5 Installation of the faucet, models with a
water tank (16VS, 20VS, 24VS)
The water tank is in front of the sauna heater and it has
a large opening for lling it. For the water volume, see
clause 1.1. The faucet is installed when the sauna heater
is installed, either on the left or right side of the sauna
heater.
Figure 8.
Place the faucet on the desired side, so that the
threads are visible on the inside of the tank. Place the washer
on the outside of the tank, turn the locking nut into place
with the smooth side against the washer and tighten, turning
Figure 8.
the faucet clockwise and holding the keeper in place with a
wrench.
3.6 Sauna heater stones
We recommend you use Kota olivine-diabase sauna heat-
er stones. Natural stones are not suitable to be used as
sauna heater stones. Before using the stones, they must
be washed to eliminate any impurities. Stack the larger
stones on the bottom with a layer of stones on top that
is sufficiently sparse that it does not hinder the circula-
tion of air through the sauna heater. The stones must
not block air openings and stones must not be stacked
over the top surface of the sauna heater. For the recom-
mended quantity of stones see clause 1.1. Additional
instructions for stacking stones are included in clause
3.3. Use of lightweight stones is forbidden.
Figure 6. Figure 7.
