Aiwa CSD-A170 User Manual

4039

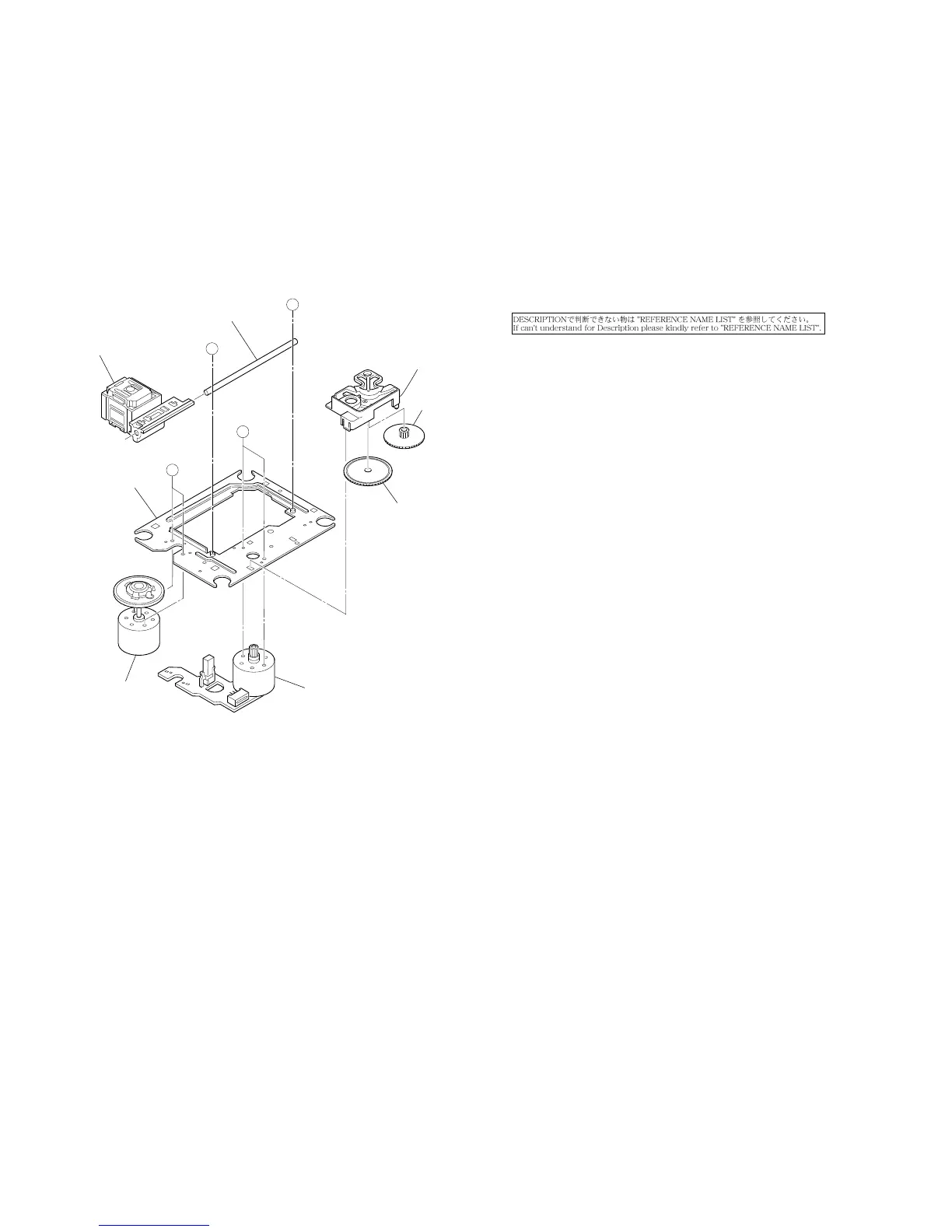

CD MECHANISM EXPLODED VIEW 1/1
B
B
A
A
SHAFT,SLIDE
1
2
3
MOTOR C,B
SPINDLE
MOTOR(M3)
CHASSIS
SF-P101NR
REF. NO PART NO. KANRI DESCRIPTION
NO.
CD MECHANISM PARTS LIST 1/1
1 S2-121-A28-400 COVER GEAR
2 S2-511-A21-000 GEAR MIDDLE
3 S2-511-A21-100 GEAR,DRIVE
A S1-PN2-03R-OSE SCR PAN PCS 2-3
B 87-261-073-410 SCR S-TPG FLT 2.6-6
ALL M8-ZZK-E90-070 DA11T3C

Aiwa CSD-A170 Specifications

General

Brand	Aiwa
Model	CSD-A170
Category	Recording Equipment
Language	English
