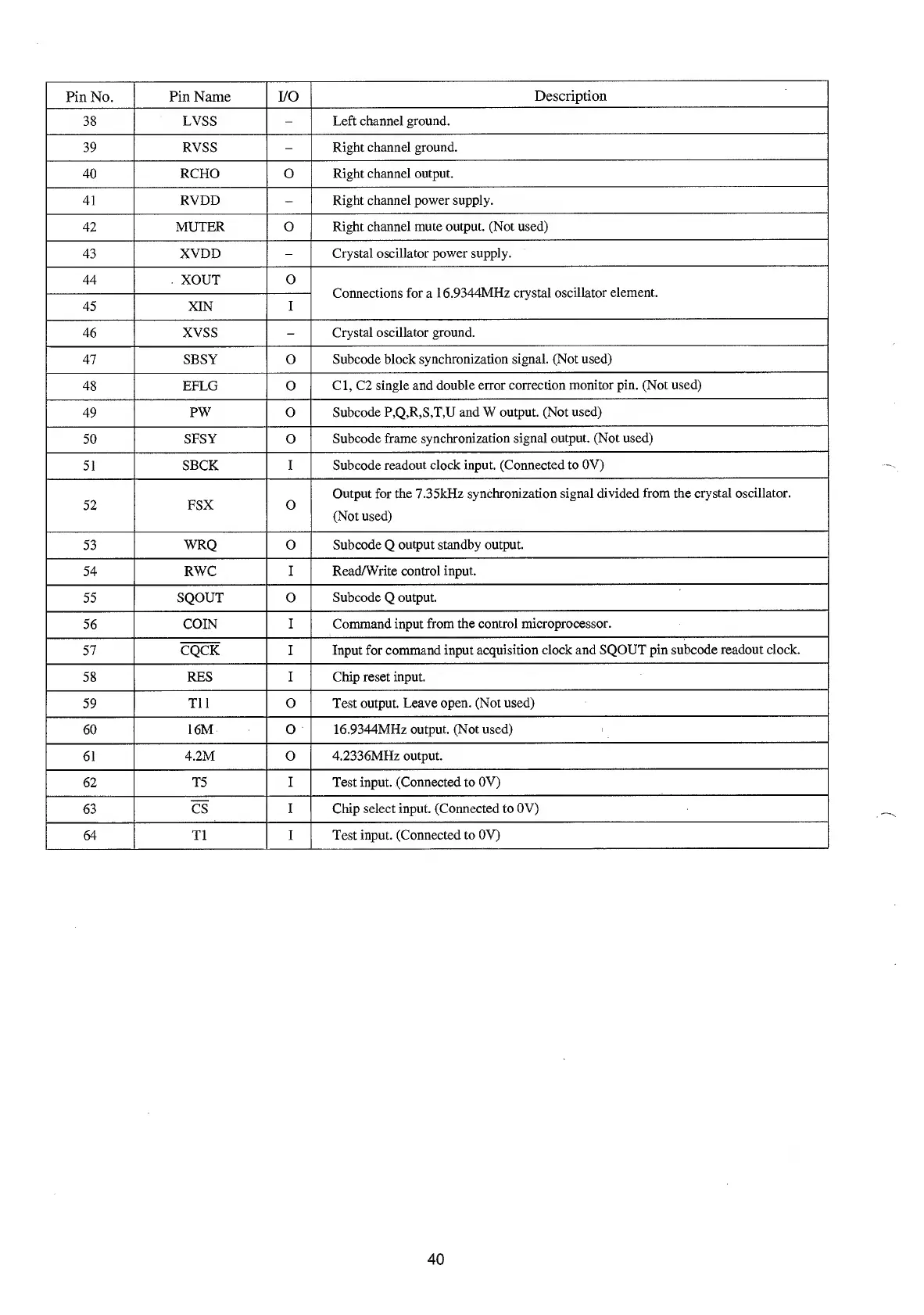

Pin
No.
Pin
Name
I/O
Description
38
LVSS
-
Left
channel
ground.
39
RVSS
-
Right
channel
ground.
40
RCHO
0
Right
channel
output.
41
RVDD
-
Right
channel
power
supply.
42
MUTER
0
Right
channel
mute
output.
(Not
used)
43
XVDD
-
Crystal
oscillator
power
supply.
44
XOUT
o
Connections
for
a
16.9344MHz
crystal
oscillator
element.
45
XIN
I
46
XVSS
-
Crystal
oscillator
ground.
47
SBSY
0
Subcode
block
synchronization
signal.
(Not
used)
48
EFLG
0
Cl,
C2
single
and
double
error
correction
monitor
pin.
(Not
used)
49
PW
o
Subcode
P,Q,R,S,T,U
and
W
output.
(Not
used)
50
SFSY
o
Subcode
frame
synchronization
signal
output.
(Not
used)
51
SBCK
I
Subcode
readout
clock
input.
(Connected
to
OV)
52
FSX
o
Output
for
the
7.35kHz
synchronization
signal
divided
from
the
crystal
oscillator.
(Not
used)
53
WRQ
o
Subcode
Q
output
standby
output.
54
RWC
I
Read/Write
control
input.
55
SQOUT
0
Subcode
Q
output.
56
COIN
I
Command
input
from
the
control
microprocessor.
57
CQCK
I
Input
for
command
input
acquisition
clock
and
SQOUT
pin
subcode
readout
clock.
58
RES
I
Chip
reset
input.
59
Til
0
Test
output.
Leave
open.
(Not
used)
60
16M
0
16.9344MHz
output.
(Not
used)
61
4.2M
o
4.2336MHz
output.
62
T5
D
Test
input.
(Connected
to
OV)
63
D
Chip
select
input.
(Connected
to
OV)
64
T1
I
Test
input.
(Connected
to
OV)
40
