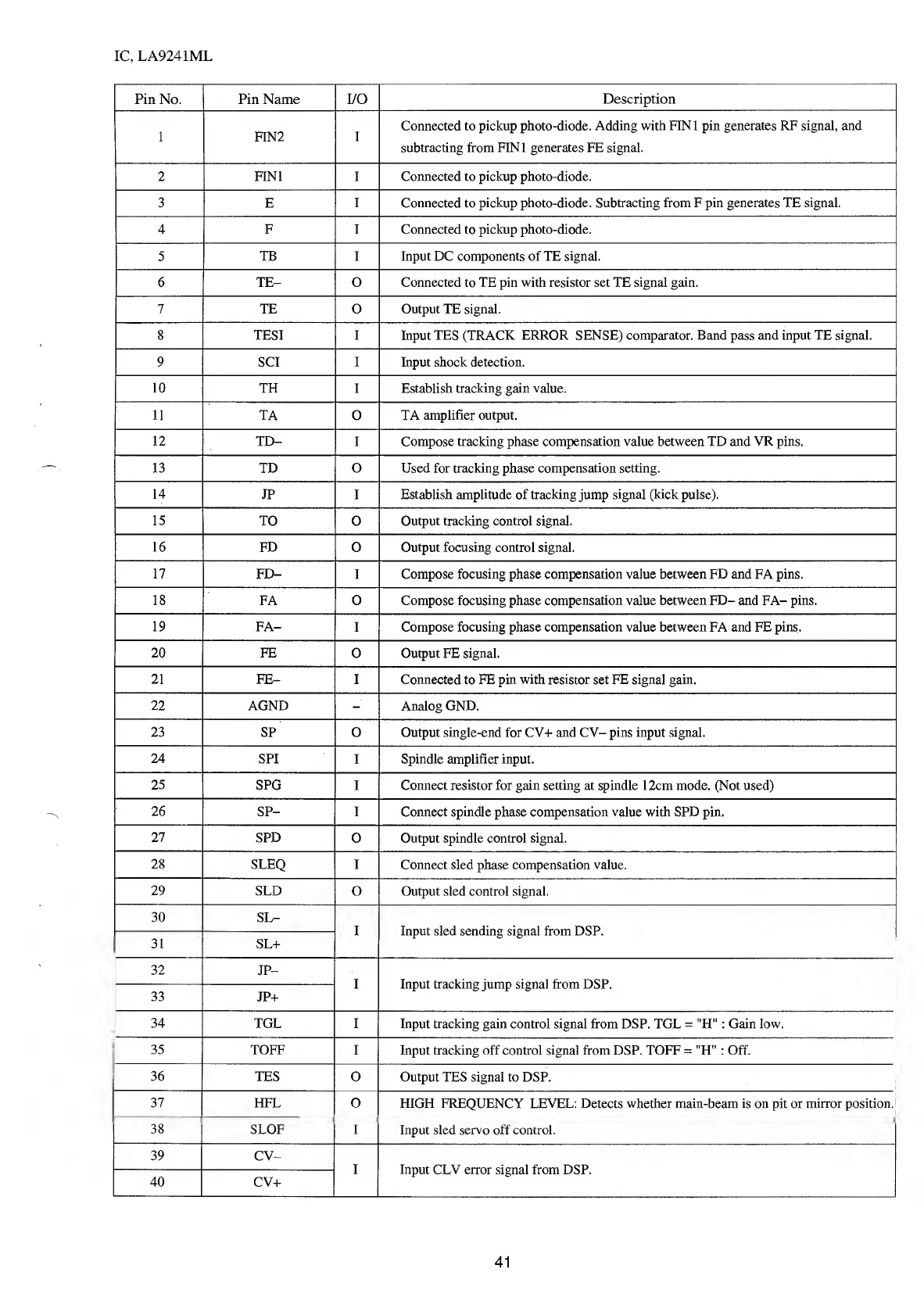

Description
Connected to pickup photo-diode. Adding with FIN 1 pin generates RF signal, and
subtracting from FINl generates FE signal.
Connected to pickup photo-diode.
Connected to pickup photo-diode. Subtracting from F pin generates TE signal.
Connected to pickup photo-diode.
Input DC components of TE signal.
Connected to TE pin with resistor set TE signal gain.
Output TE signal.
Input TES (TRACK ERROR SENSE) comparator. Band pass and input TE signal.
Input shock detection.
Establish tracking gain value.
TA amplifier output.
Compose tracking phase compensation value between TD and VR pins.
Used for tracking phase compensation setting.
Establish amplitude of tracking jump signal (kick pulse).
Output tracking control signal.
Output focusing control signal.
Compose focusing phase compensation value between FD and FA pins.
Compose focusing phase compensation value between FD- and FA- pins.
Compose focusing phase compensation value between FA and FE pins.
Output FE signal.
Connected to FE pin with resistor set FE signal gain.
Analog GND.
Output single-end for CV+ and CV- pins input signal.
Spindle amplifier input.
Connect resistor for gain setting at spindle 12cm mode. (Not used)
Connect spindle phase compensation value with SPD pin.
Output spindle control signal.
Connect sled phase compensation value.
Output sled control signal.
Input sled sending signal from DSP.
Input tracking jump signal from DSP.
Input tracking gain control signal from DSP. TGL = "H": Gain low.
Input tracking off control signal from DSP. TOFF = "H" : Off.
Output TES signal to DSP.
HIGH FREQUENCY LEVEL: Detects whether main-beam is on pit or mirror position.
Input sled servo off control.
Input CLV error signal from DSP.
