Aiwa HS-TA166 - AIWA HS-TA166 Mechanical Parts and Assembly; HS-TA166 Mechanical Exploded Diagram; HS-TA166 Mechanical Parts List; HS-TA166 Color Name Mapping

– 7 –

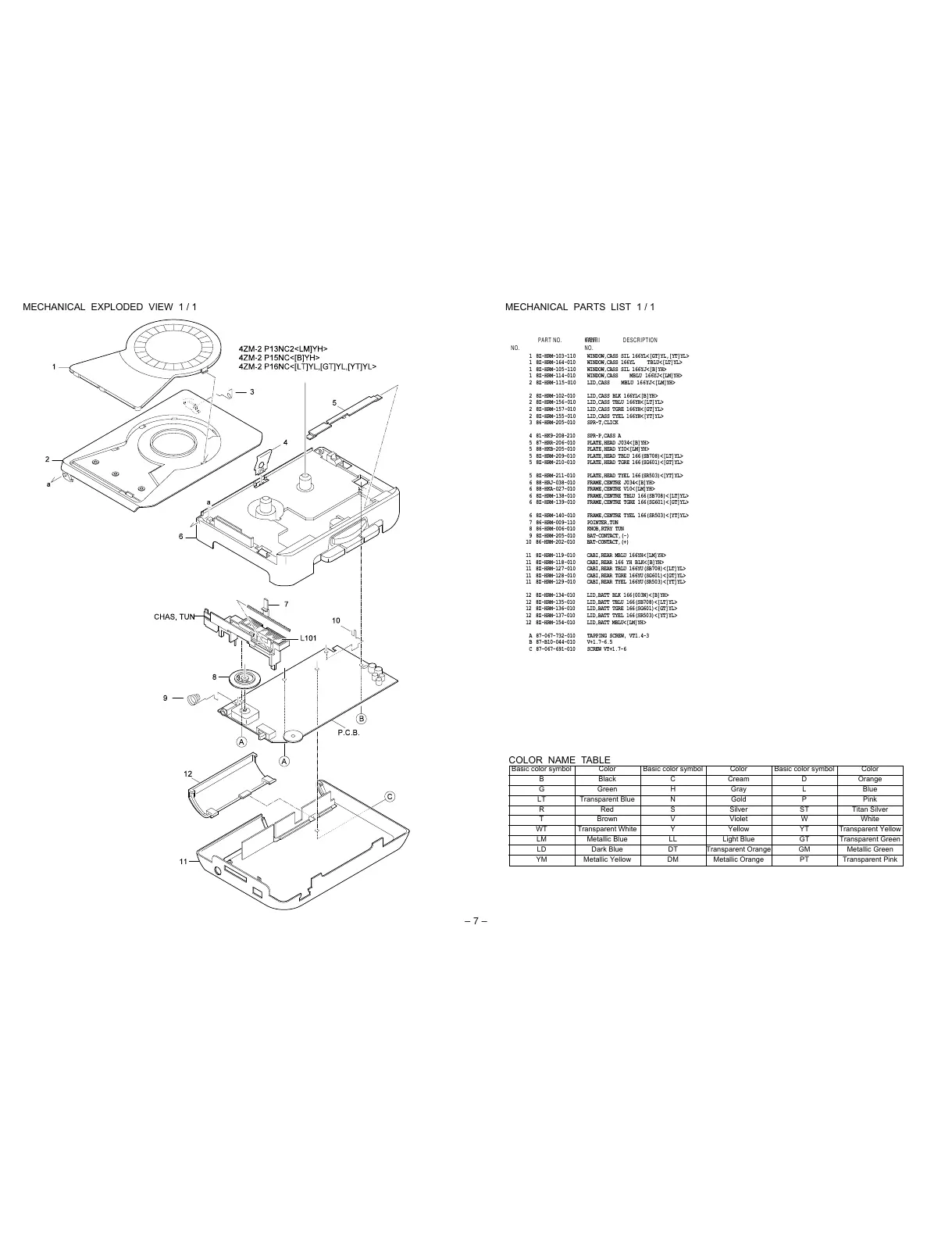

MECHANICAL EXPLODED VIEW 1 / 1 MECHANICAL PARTS LIST 1 / 1
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
1 8Z-HRM-103-110 WINDOW,CASS SIL 166YL<[GT]YL,[YT]YL>
1 8Z-HRM-164-010 WINDOW,CASS 166YL TBLU<[LT]YL>
1 8Z-HRM-105-110 WINDOW,CASS SIL 166YJ<[B]YH>
1 8Z-HRM-114-010 WINDOW,CASS MBLU 166YJ<[LM]YH>
2 8Z-HRM-115-010 LID,CASS MBLU 166YJ<[LM]YH>
2 8Z-HRM-102-010 LID,CASS BLK 166YL<[B]YH>
2 8Z-HRM-156-010 LID,CASS TBLU 166YH<[LT]YL>
2 8Z-HRM-157-010 LID,CASS TGRE 166YH<[GT]YL>
2 8Z-HRM-155-010 LID,CASS TYEL 166YH<[YT]YL>
3 86-HRM-205-010 SPR-T,CLICK
4 81-HK9-208-210 SPR-P,CASS A
5 87-HRR-206-010 PLATE,HEAD J034<[B]YH>
5 88-HKB-205-010 PLATE,HEAD YIO<[LM]YH>
5 8Z-HRM-209-010 PLATE,HEAD TBLU 166(SB708)<[LT]YL>
5 8Z-HRM-210-010 PLATE,HEAD TGRE 166(SG601)<[GT]YL>
5 8Z-HRM-211-010 PLATE,HEAD TYEL 166(SR503)<[YT]YL>
6 88-HRJ-038-010 FRAME,CENTRE J034<[B]YH>
6 88-HKA-027-010 FRAME,CENTRE V10<[LM]YH>
6 8Z-HRM-138-010 FRAME,CENTRE TBLU 166(SB708)<[LT]YL>
6 8Z-HRM-139-010 FRAME,CENTRE TGRE 166(SG601)<[GT]YL>
6 8Z-HRM-140-010 FRAME,CENTRE TYEL 166(SR503)<[YT]YL>
7 86-HRM-009-110 POINTER,TUN
8 86-HRM-006-010 KNOB,RTRY TUN
9 8Z-HRM-205-010 BAT-CONTACT,(-)
10 86-HRM-202-010 BAT-CONTACT,(+)
11 8Z-HRM-119-010 CABI,REAR MBLU 166YH<[LM]YH>
11 8Z-HRM-118-010 CABI,REAR 166 YH BLK<[B]YH>
11 8Z-HRM-127-010 CABI,REAR TBLU 166YU(SB708)<[LT]YL>
11 8Z-HRM-128-010 CABI,REAR TGRE 166YU(SG601)<[GT]YL>
11 8Z-HRM-129-010 CABI,REAR TYEL 166YU(SR503)<[YT]YL>
12 8Z-HRM-134-010 LID,BATT BLK 166(003N)<[B]YH>
12 8Z-HRM-135-010 LID,BATT TBLU 166(SB708)<[LT]YL>
12 8Z-HRM-136-010 LID,BATT TGRE 166(SG601)<[GT]YL>
12 8Z-HRM-137-010 LID,BATT TYEL 166(SR503)<[YT]YL>
12 8Z-HRM-154-010 LID,BATT MBLU<[LM]YH>
A 87-067-732-010 TAPPING SCREW, VT1.4-3
B 87-B10-044-010 V+1.7-6.5
C 87-067-691-010 SCREW VT+1.7-6
