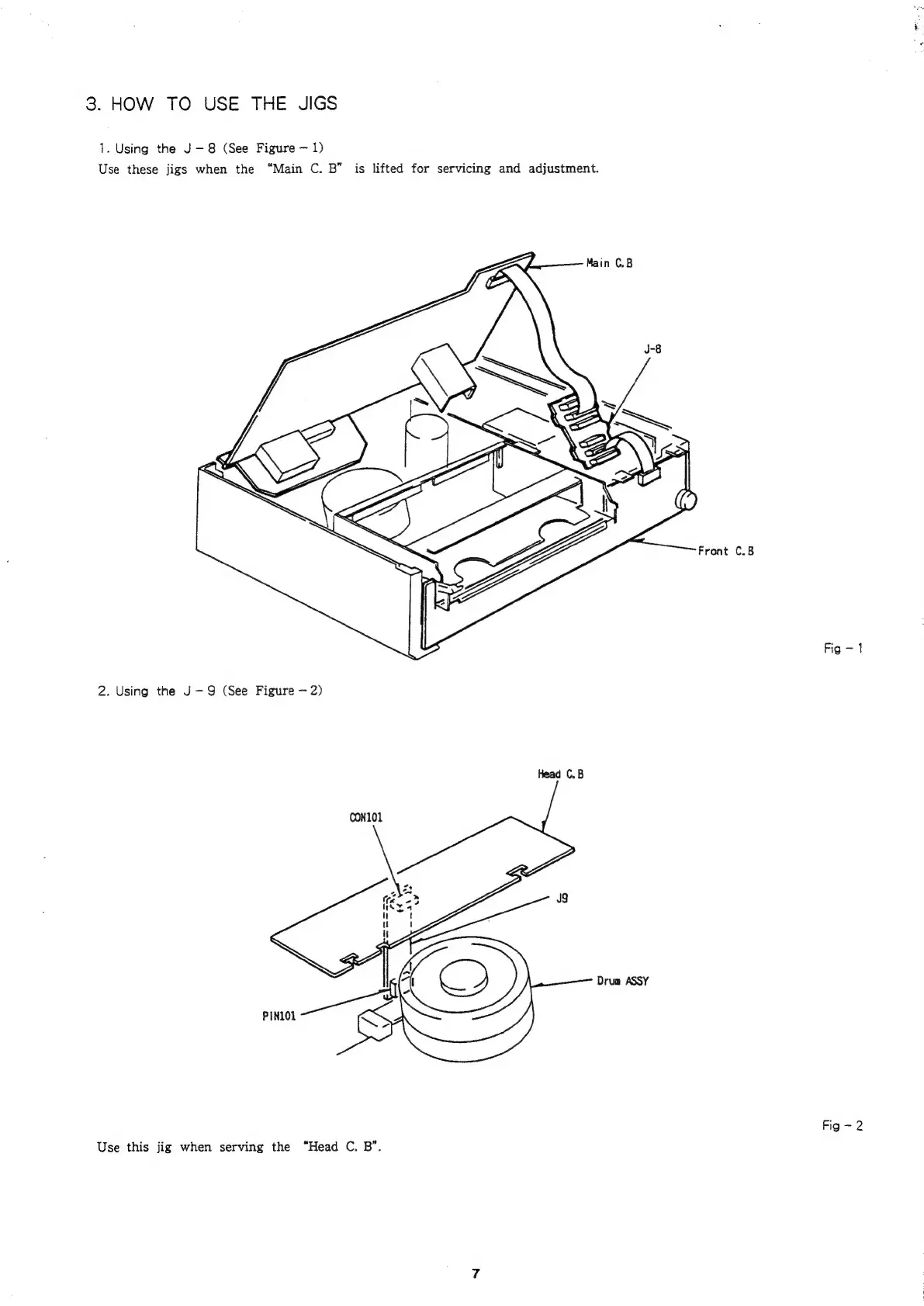

3. HOW TO USE THE JIGS
1. Using the J—8 (See Figure — 1)
Use these jigs when the “Main C. B” is lifted for servicing and adjustment.
2. Using the J-—9 (See Figure — 2)
Head C.B
_
pitas
PIN1O1
Use this jig when serving the “Head C. B”.
Front C.B
Fig - 1
Fig-2
