PREPARATIONS
CONNECTIONS

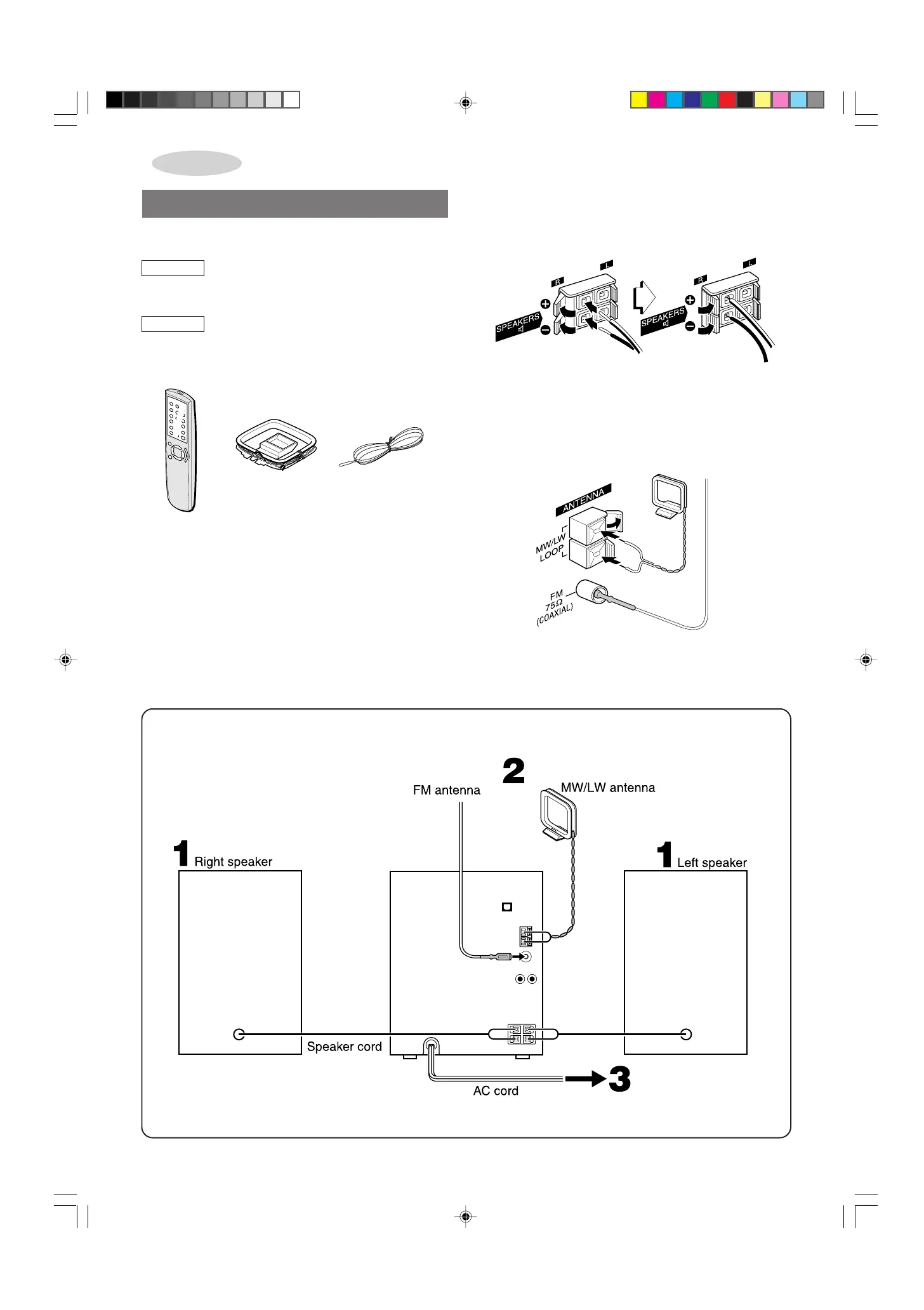

Check your system and accessories
NSX-S111
CX-NS111 Compact disc stereo cassette receiver
SX-NS112 Front speakers
NSX-S116
CX-NS116 Compact disc stereo cassette receiver
SX-NS116 Front speakers
Operating Instructions, etc
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
230 V AC. Check that the rated voltage matches your local
voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
There are no differences between the front speakers. Both
speakers can be connected as L (left) or R (right).
1
Connect the right and left speakers to the main
unit.
Connect the right speaker cord to SPEAKERS R terminals,
and left to SPEAKERS L terminals.
The speaker cord with the white stripe should be connected
to 0 terminal and the black cord to 9 terminal.
2
Connect the supplied antennas.
Connect the FM antenna to FM 75 Ω terminal and the MW/
LW antenna to MW/LW LOOP terminals.
3
Connect the AC cord to an AC outlet.
MW/LW antenna
FM antenna
FM antennaMW/LW
antenna
Remote control
NSX-S111/S116 EZ (E) P01~13 99.5.11, 4:11 PM4
