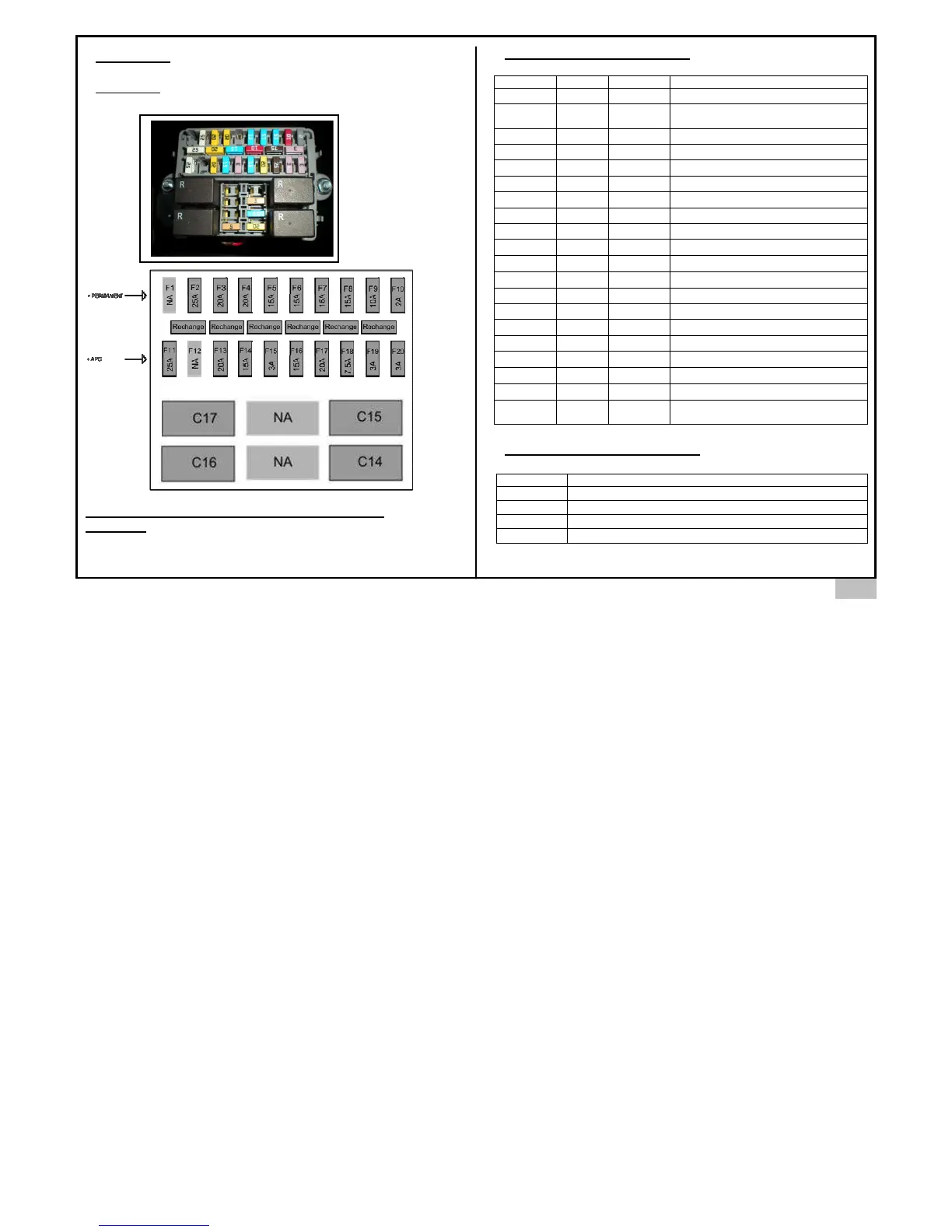

Aixam SV41AF - FUSE BOX; AFFECTATION OF FUSES:

FUSE BOX
WARNING: When you replace a fuse, always respect the
amperage (risk of fire).
Depending on the version, the number of relays
may vary.
AFFECTATION OF FUSES:
position
Calibre Colour
Affectation
F1
NA
NA
Not attributed
F2
25A
WHITE
Centralized closing – central electric
windows
F3
20A
YELLOW
Rear window de-icing
F4
20A
YELLOW
Engine stopping
F5
15A
BLUE
Horn – car radio – cigar lighter
F6
15A
BLUE
Full beam
F7
15A
BLUE
Dipped headlights
F8
15A
BLUE
Parking lights – rear fog lights
F9
10A
ROUGE
Hazard warning lights – dashboard
F10
2A
GREY
Dome light
F11
25A
WHITE
Electric windows
F12
NA
NA
Not attributed
F13
20A
YELLOW
Windscreen wiper / washer
F14
15A
BLUE
Cabin ventilator
F15
3A
BLUE
Daytime lights (DRL)
F16
15A
PINK
Reverse radar / reverse lights
F17
20A
YELLOW
Preheating spark plug supply
F18
7,5A
MAROON
Stop lights
F19
3A
PINK
Alternator – preheating relay
F20
3A
PINK
Dashboard – centralized closing – de-
icing relay
AFFECTATION OF RELAYS:
Position Affectation
C14
Starter safety relay
C15
Preheating relay
C16
Engine stopping relay
C17
Rear window de-icing relay
41
