AJA ADA4 - I;O Connections; ADA4 and Cable Overview

1
5
AJA ADA4 4-Ch Bi-directional Audio A/D and D/A Converter User Manual — I/O Connections
I/O Connections

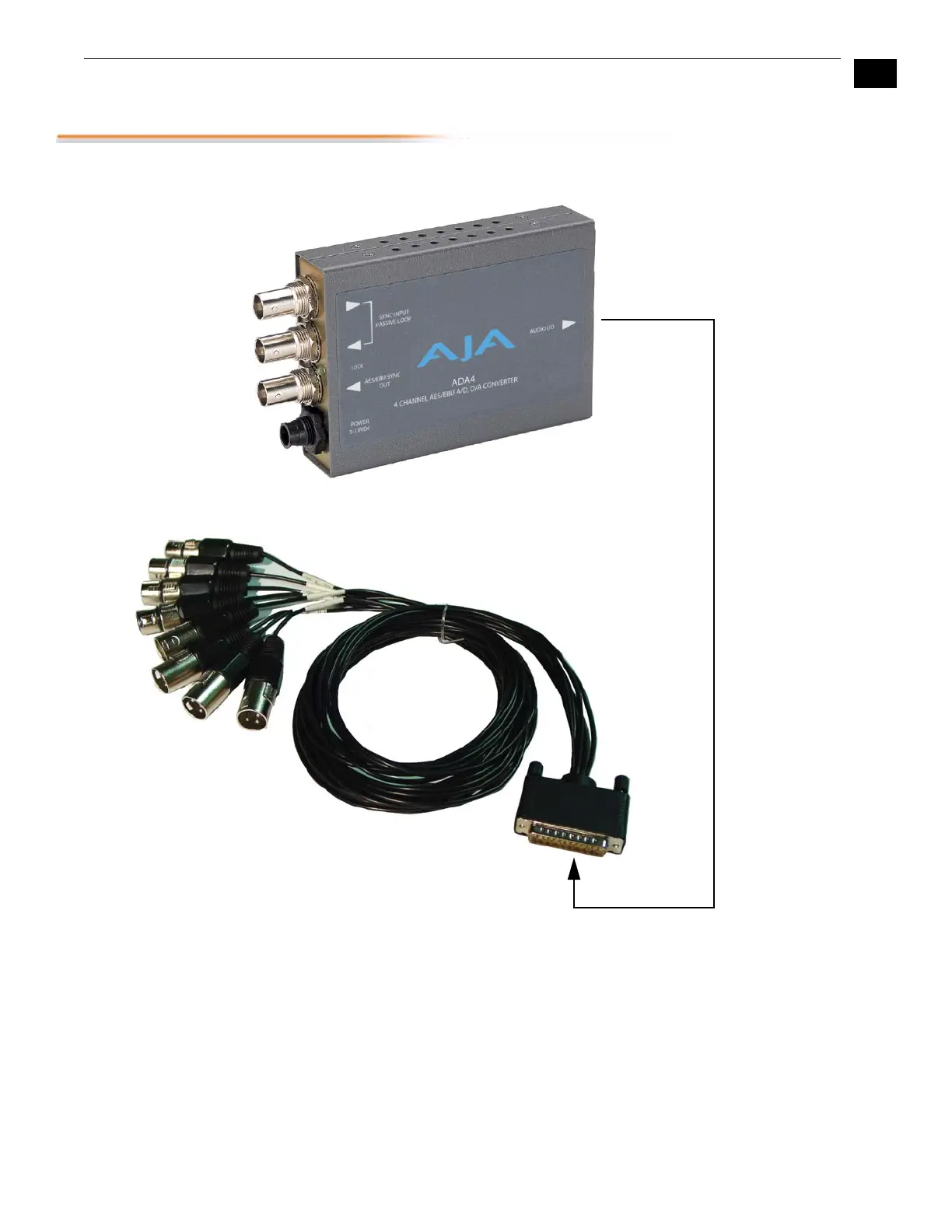

ADA4 and Cable, Side View
Configuration
Determined by
DIP switch on
other side of
Converter
Audio I/O
AES/EBU Sync Output
BNCs
BNC
D-connector
(attaches to
supplied cable)
Cable
Not Shown
To Scale
+ 5 to 18VDC
Power
Input
Sync Input
Passive Loop
