Chapter 1: Introduction
Overview
The C10DA is a miniature, low-cost utility 1x6 analog video distribution amplifier that can
be used for distributing analog video, bi-level video reference, and tri-level video
reference signals. It can also be used to distribute other single ended signals such as
AES3-id and Linear Timecode (LTC). Featuring six separately buffered analog outputs, the
C10DA provides
gain adjustment.
Features
Formats •NTSC
•PAL
• Bi-level Reference
• Tri-level Reference
•AES3-id
•LTC
Inputs • 1 Analog, Differential, 1 x BNC
Outputs •6 Analog, 6 x BNC
User Controls •External Dipswitch
• Termination
•Gain

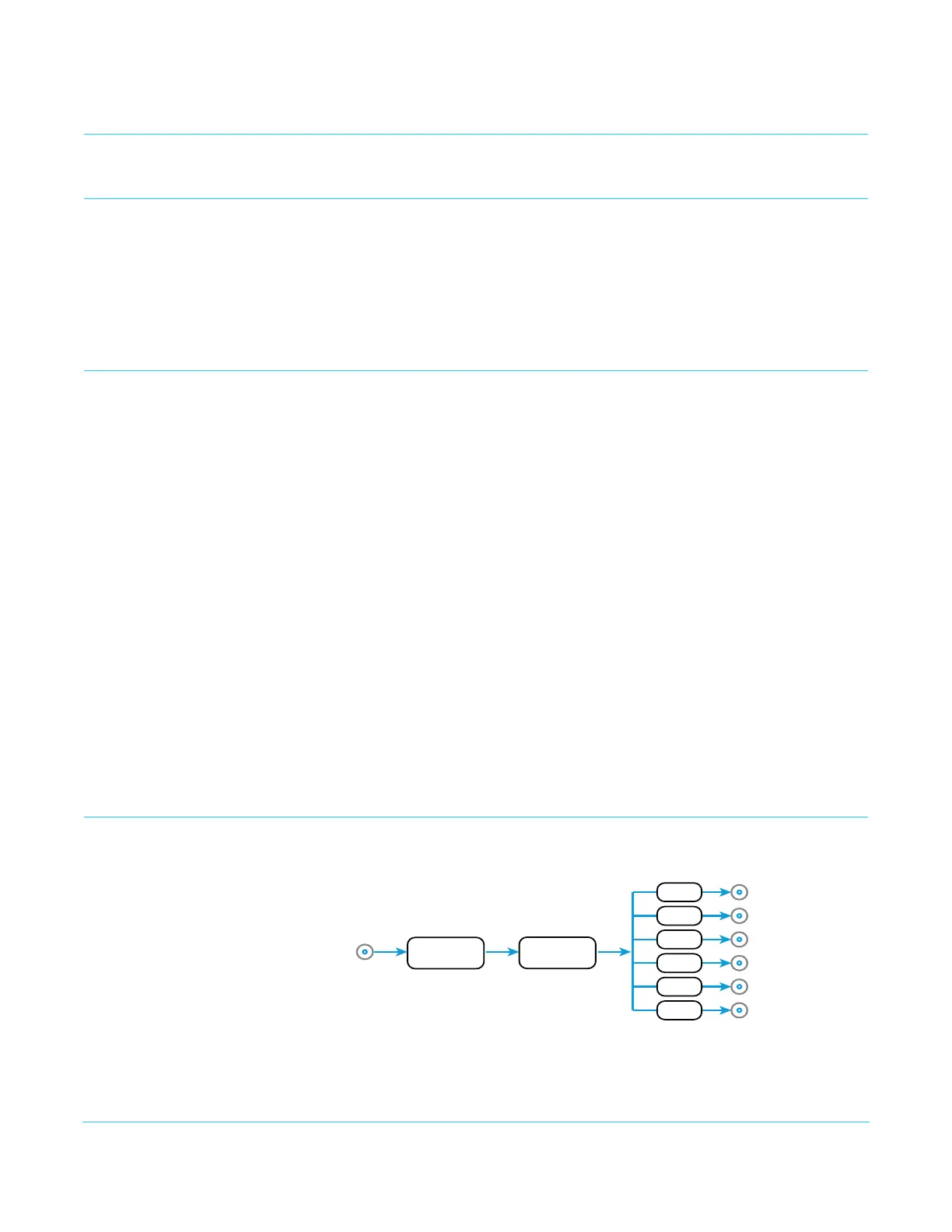

Simplified Block Diagram
Analog In
Analog Video Out 1
Analog Video Out 2
Analog Video Out 3
Analog Video Out 4
Analog Video Out 5
Analog Video Out 6
Gain
Adjustment
Termination
Control
Driver
Driver
Driver
Driver
Driver
Driver
