Chapter 1: Introduction
Overview
The HD5DA is a miniature, low-cost 1x4 HD/SD-SDI distribution amplifier/repeater.
Featuring four separately buffered HD/SD-SDI outputs, the HD5DA provides automatic
HD cable equalization to 125 meters and automatically adapts to 143, 177, 270, 360 Mb,
and 1.5Gb SDI.
Features
• Compact HD-SDI/SDI Distribution
• Four Separately Buffered HD-SDI/SDI Outputs
• HD 125m, SD 300m (Belden 1694 cable)
• Acts As Low-Cost Repeater
• Automatic Multi-Standard 143/177/ 270 Mb, 1.5Gb
• Operating Voltage 5-18VDC (Universal 5V AC adapter model DWP-U-R1 is included)
• Power rating above for serial number 6277 and higher. Lower numbered units
require +5VDC only.
• No dip switches or configuration required

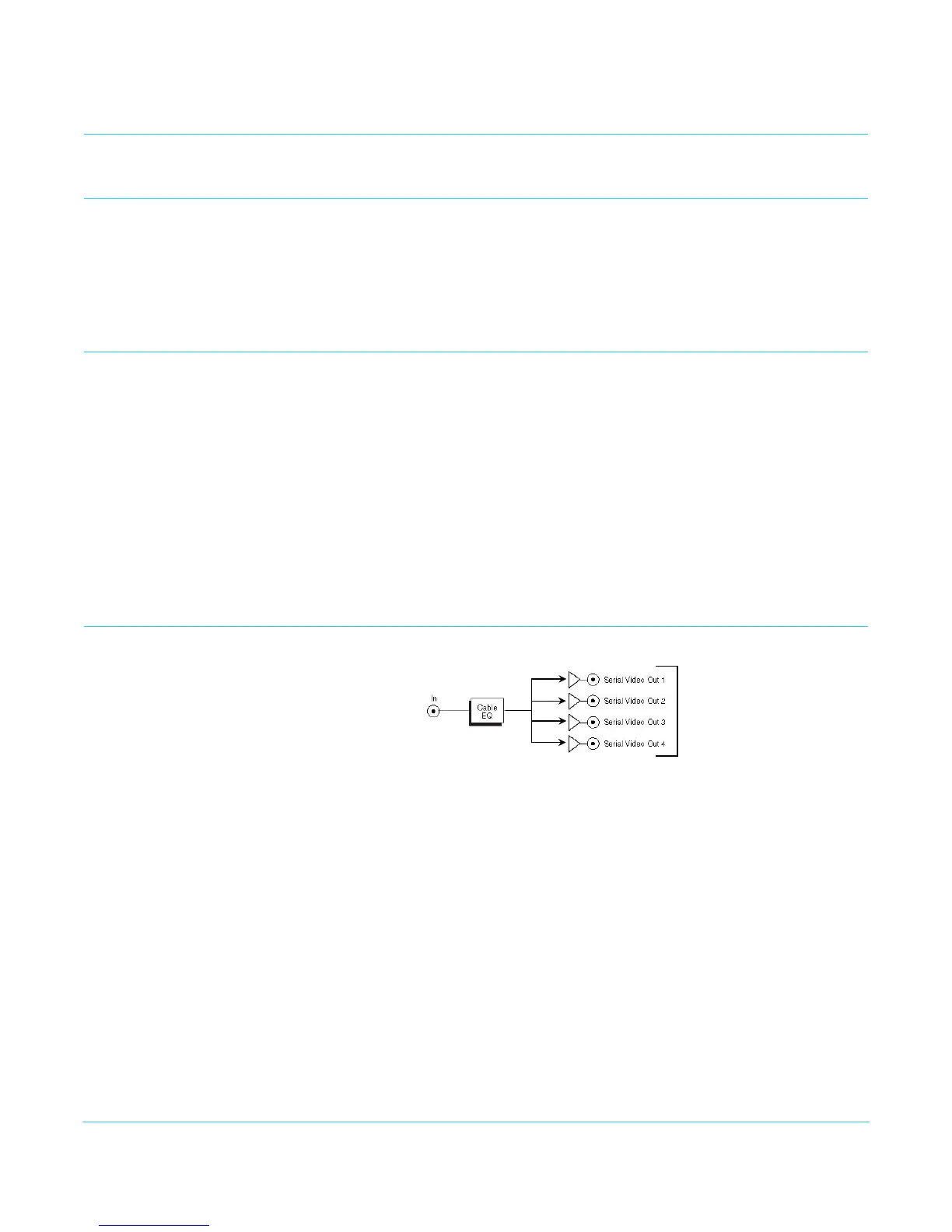

Simplified Block Diagram
HD-SDI or SD-SDI
With Embedded
Audio Out
Outputs pass embedded
Audio and metadata
HD-SDI or SD-SDI
With Embedded
Audio In
