HD5DA Mini-Converter v2.0 www.aja.com
5

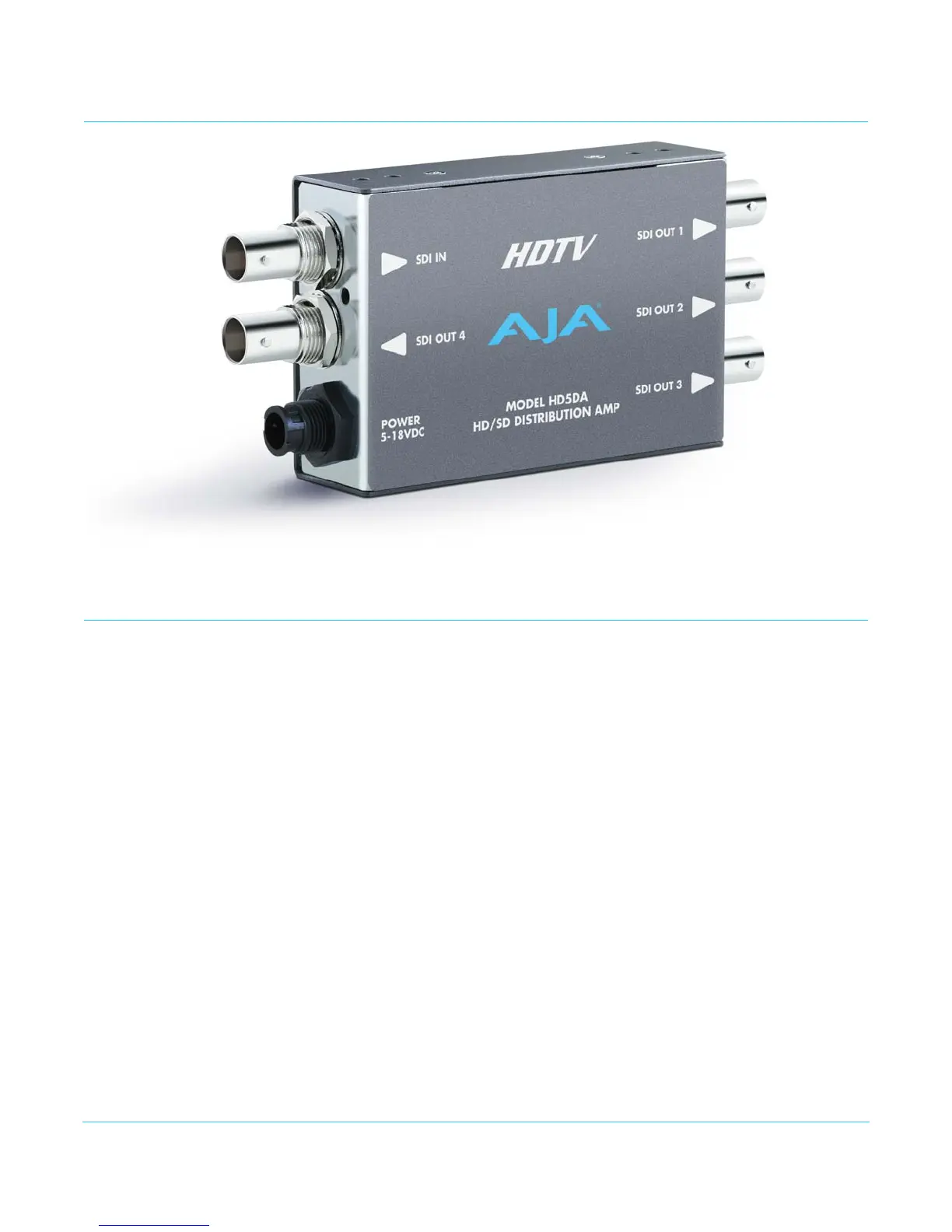

I/O Connections
Installation
Typically, HD5DA installation consists of the following:
1. Disconnect power from the converter.
2. Connect video equipment to the BNCs.
3. Apply DC power to the converter.
HD/SD-SDI
Input BNC
HD/SD-SDI
Output 3
BNC
HD/SD-SDI
Output 2
BNC
HD/SD-SDI
Output 4
BNC
HD/SD-SDI
Output 1
BNC
+5-18 VDC
Power
Input
