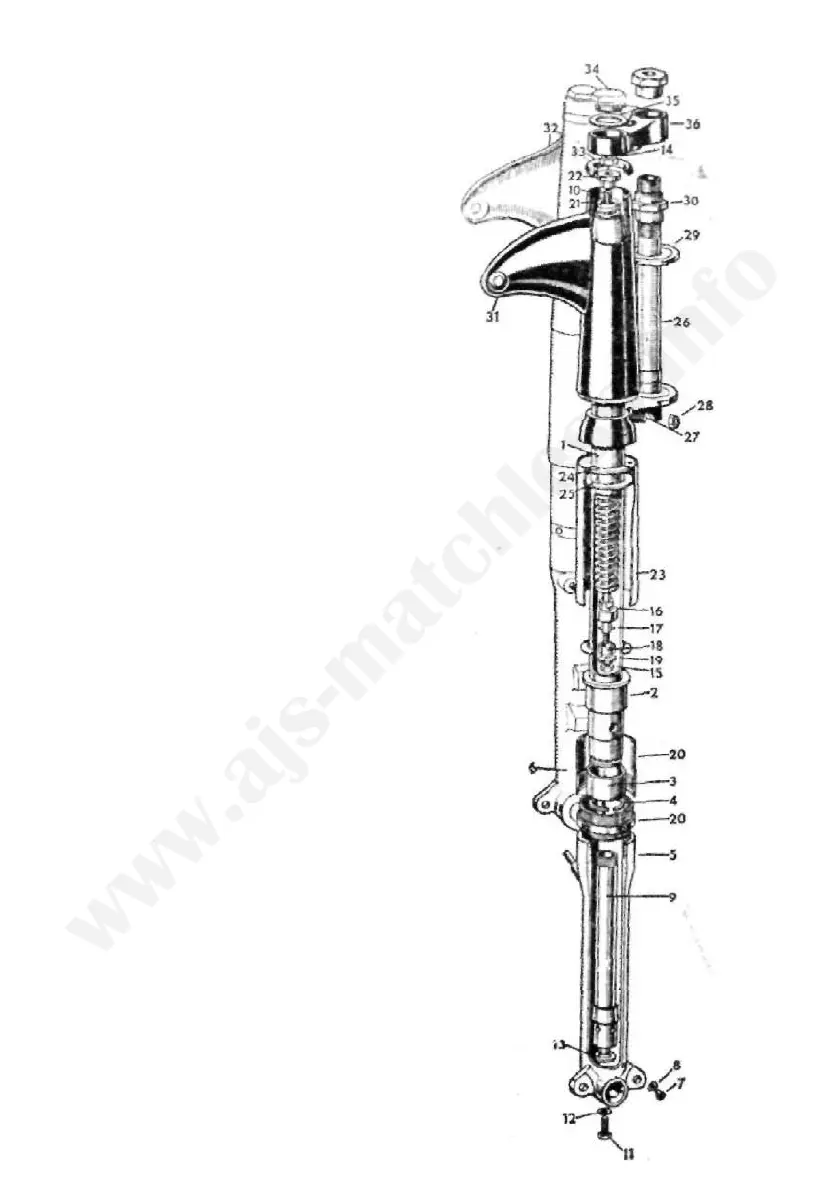

1964-66 Front Fork Assembly
1
2
3
4
5
Fork main tube
Main tube bush
Main tube bottom bush
Main tube bottom bush
circlip
Fork end left hand
6 Fork end right hand
7 Fork end drain plug
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
Washer for plug
Oil damper tube
Oil damper rod
Oil damper tube bolt
Washer for bolt
Washer for tube
Nut for rod top
Nut for rod bottom
Damper tube cap
Piston locating peg
Oil damper valve cup
Oil damper valve cup slotted ring
Main tube lock ring with cup
Main spring
Main spring locating bushes
Spring cover tube
Soring top cover tube securing
plate
Screws securing plate
Crown lug complete with column
Pinch stud for crown lug
Nut for stud
Fork head race adjuster nut
Top cover left hand
32 Top cover right hand
33
34
Main tube top cover ring
Fork main tube filler and
retaining plug
35 Washer for plug
36
37
Fork head clip
Fork crown and column lock nut
FIG
24
82
To Next Page
