Fork, H.
Inner tube top screw.
Inner tube top screw fibre
washer.
Top cover tube.
Inner tube top adaptor.
Main spring.
Drain screw.
Top cover tube shakeproof
washer.
Top cover tube fixing screw
nut.
Oil seal.
Assembled part.
Assembled part.
Slider extension.
Damper tube.
Damper tube retaining screw.
Damper tube retaining screw
fibre washer.
17
18
19
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Drain screw fibre washer.
Mudguard clip left.
Mudguard clip right.
Mudguard clip bolt.
Mudguard clip bolt washer.
Mudguard clip bolt nut.
Nut, domed top.
Washer top domed nut.
Head stem.
Spacer for head stem.
Adjusting race.
Balls steering.
Frame race top and bottom.
Dust cover for ball race.
Crown race.
Washer head stem bottom nuts.
Head stem adjusting nut, bottom.
Head stem lock nut, bottom.
FIG
23

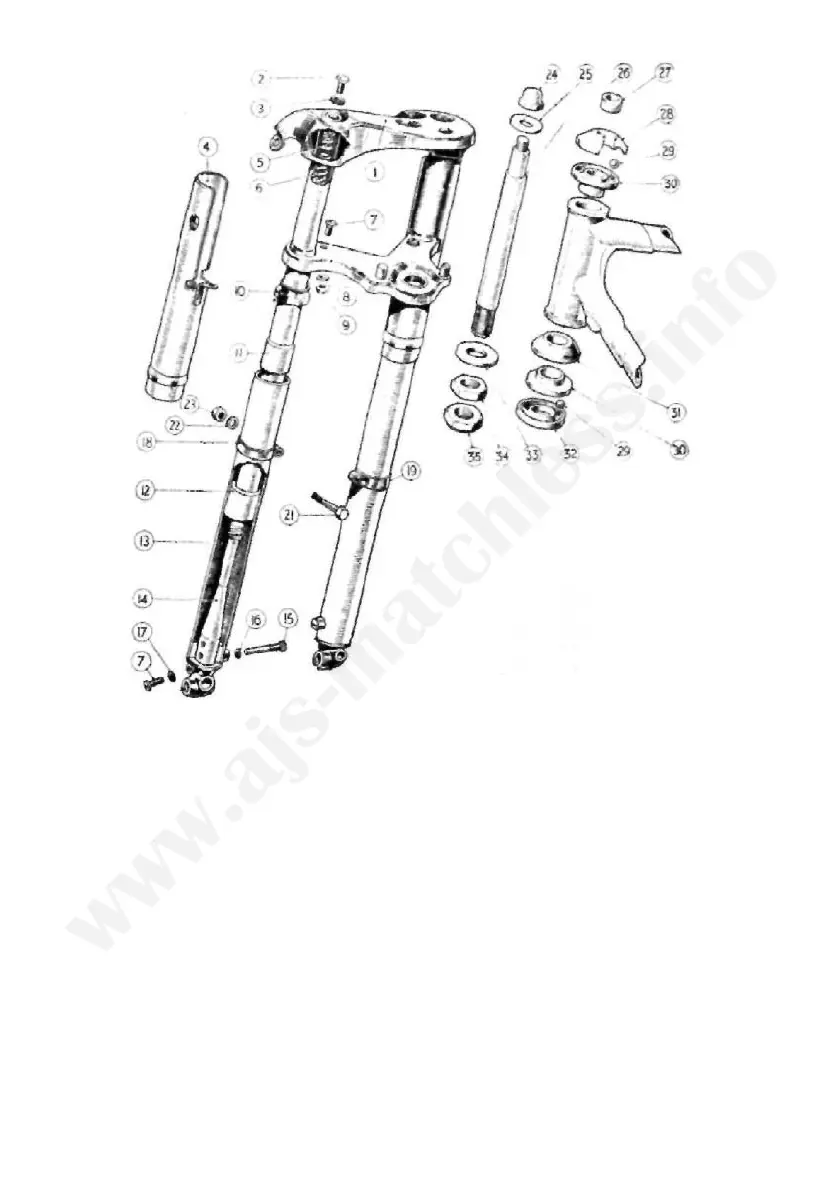

Exploded view of
front forks—1959
(Lightweight type)
