AJS G2 - Wheels and Brakes

Brake drum bearing Fig. 28. With the brake drum away from the frame.
to dismantle:
Remove dummy spindle (12).
Remove circlip (11) and cup for oil seal (5).
Remove bearing by drifting out, with second cup.
Remove oil seal (4) and distance piece (6).
Refit the oil seal with metal backing towards the inside of brake drum.
Use a little anti-centrifuge grease for the bearing.

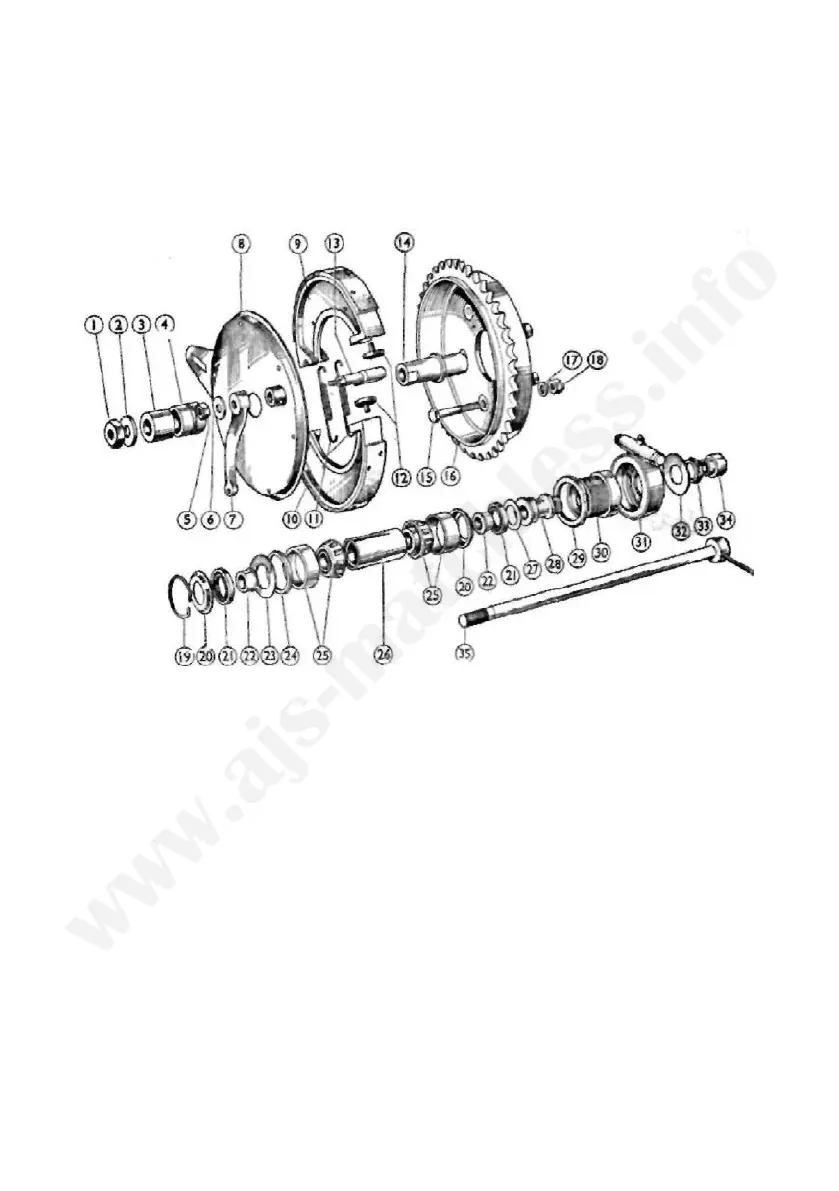

FIG 27 Non-quick-detachable wheel assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Nut for wheel solid spindle
Washer, for wheel spindle nut
Spacer, for wheel spindle nut
Spacer, for cover plate, outer
Nut, for expander lever
Washer, for expander lever nut
Lever, expander
Plate, cover
Shoes, brake, with linings
Linings, for brake shoes.
Spring, for brake shoes
Pin thrust, adjusting brake
shoes
Expander, for brake shoes
Spacer, for cover plate, inner
Bolt, retaining, sprocket to
hub shell
Sprocket and brake drum
Washer, sprocket retaining bolt
Nut, sprocket retaining bolt
Ring, spring, locating bearing
Cup, for bearing oil seal
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Oil seal, for bearing
Spacer, on spindle, for oil seal
Ring, retaining hub bearing, large
Spacer, between bearing and oil
seal
Bearing, roller
Spacer, between bearings
Ring, retaining hub bearing,
small
Spacer, on spindle, for
speedometer gearbox
Nut, lock, bearing adjusting ring
Ring, adjusting bearing
Speedometer gearbox
Washer, outside, speedometer
gearbox
Nut, locking, speedometer
gearbox
Spacer, on spindle, speedometer
gearbox side
Spindle, rear wheel solid
