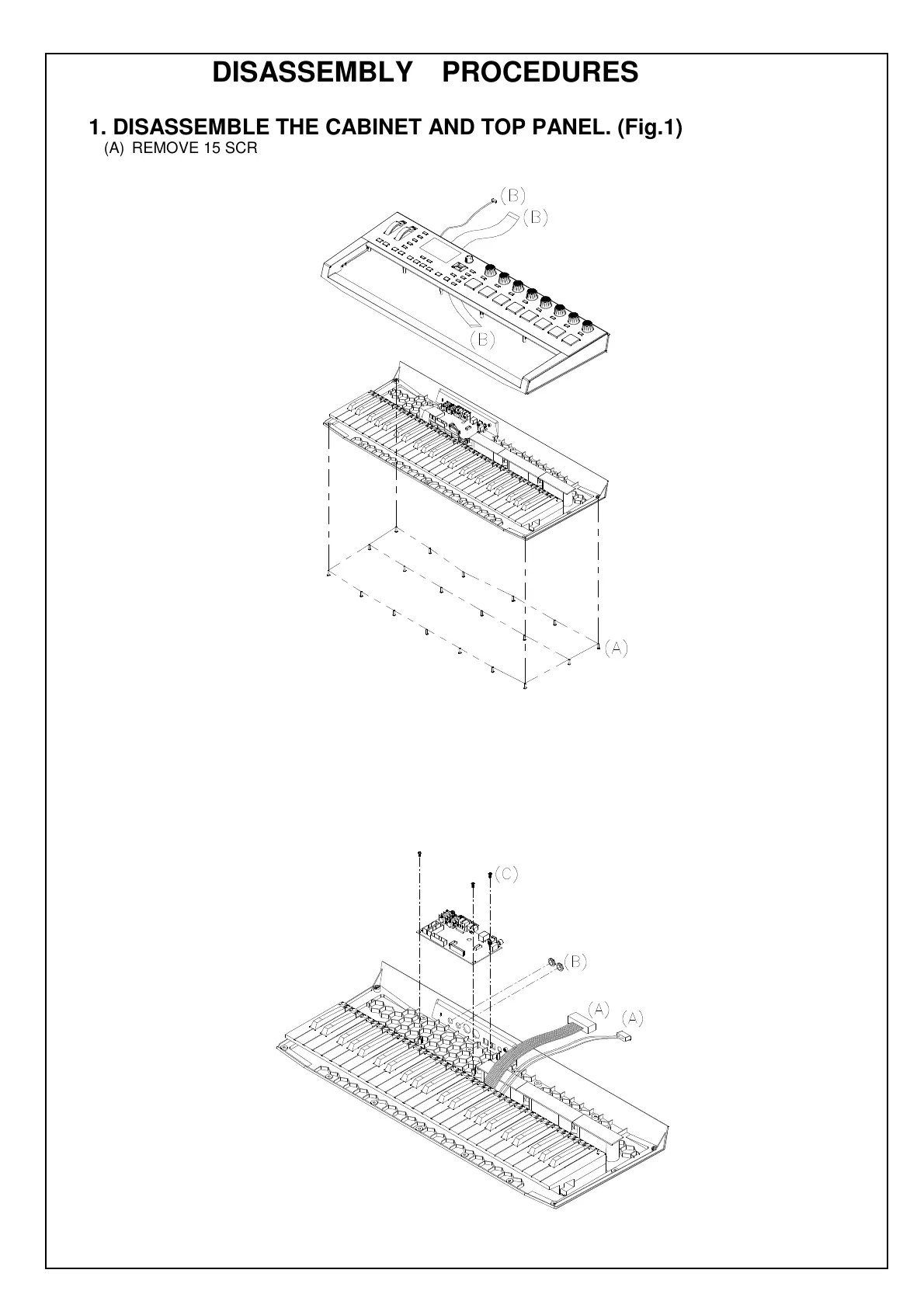

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE CABINET AND TOP PANEL. (Fig.1)
(A) REMOVE 15 SCREWS FROM BOTTOM PANEL.
(B) REMOVE 3 CABLES FROM THE TOP PANEL.
(Fig.1)
2. DISASSEMBLE THE REAR I/O PCB ASS’Y. (Fig.2)
(A) REMOVE 2 CABLES FROM THE REAR I/O PCB ASS’Y.
(B) REMOVE 2 NUTS FROM THE REAR I/O PCB ASS’Y.
(C) REMOVE 3 SCREWS FROM THE REAR I/O PCB ASS’Y.
(Fig.2)
