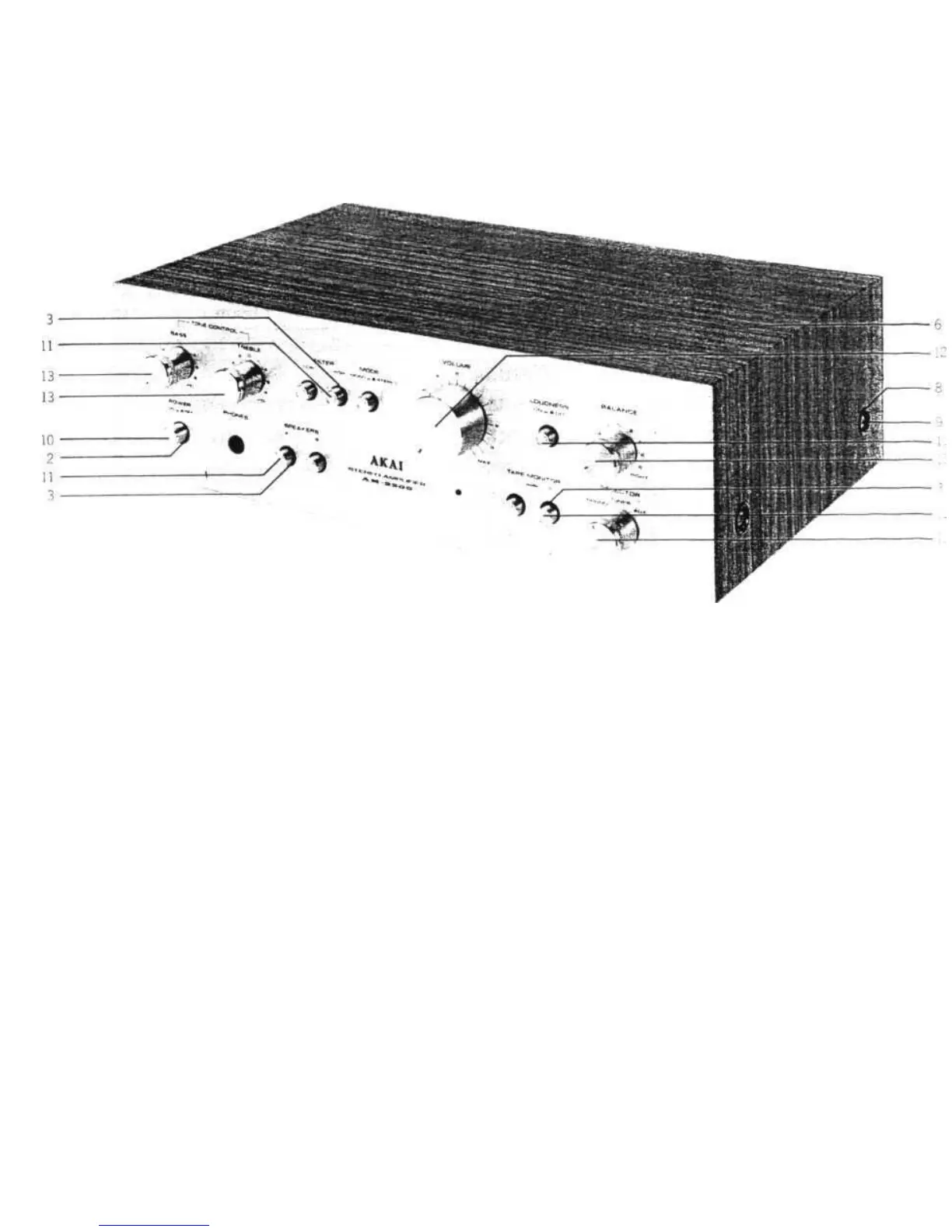

8. PHOTO OF FINAL ASSEMBLY BLOCK
8.) FINAL ASSEMBLY BLOCK
Ref.
No.
Parts No.
Description
FRONT PANEL BLOCK
8-lx BD211230 Front Panel Block Comp.
8-2 MZ224627 Push Button Bush A
8-3 SE613888 Button Escutcheon A
Schematic Q'ty
No.
M2-5004 1
CW-6021 8
ASSEMBLY BLOCK
8-4x SZ64S243 Circular
Foot
A
CA-6014
4
8-5x ZS214997 Tapping Screw, #2 4x6 pan 4
8-6
BC224807 Cabinet
A
M2-5013
1
8-7x BC266782 Cabinet
C
(CSA)
M2-50I3
1
8-8
ZW548010
Spot
Facing Washer
MU-6028
4
8-9 ZS510344 Screw, binding head 4x12 4
8-10 SK224886 Power Knob
M2-5021
1
8-11 SK634410 Push Button Knob
J
91-5051
8
8-12 SK22S090 Vol. Knob
M2-5015
1
8-13
SK646817
Single Knob
AA-5250
4
To Next Page
