Akai AM-2600

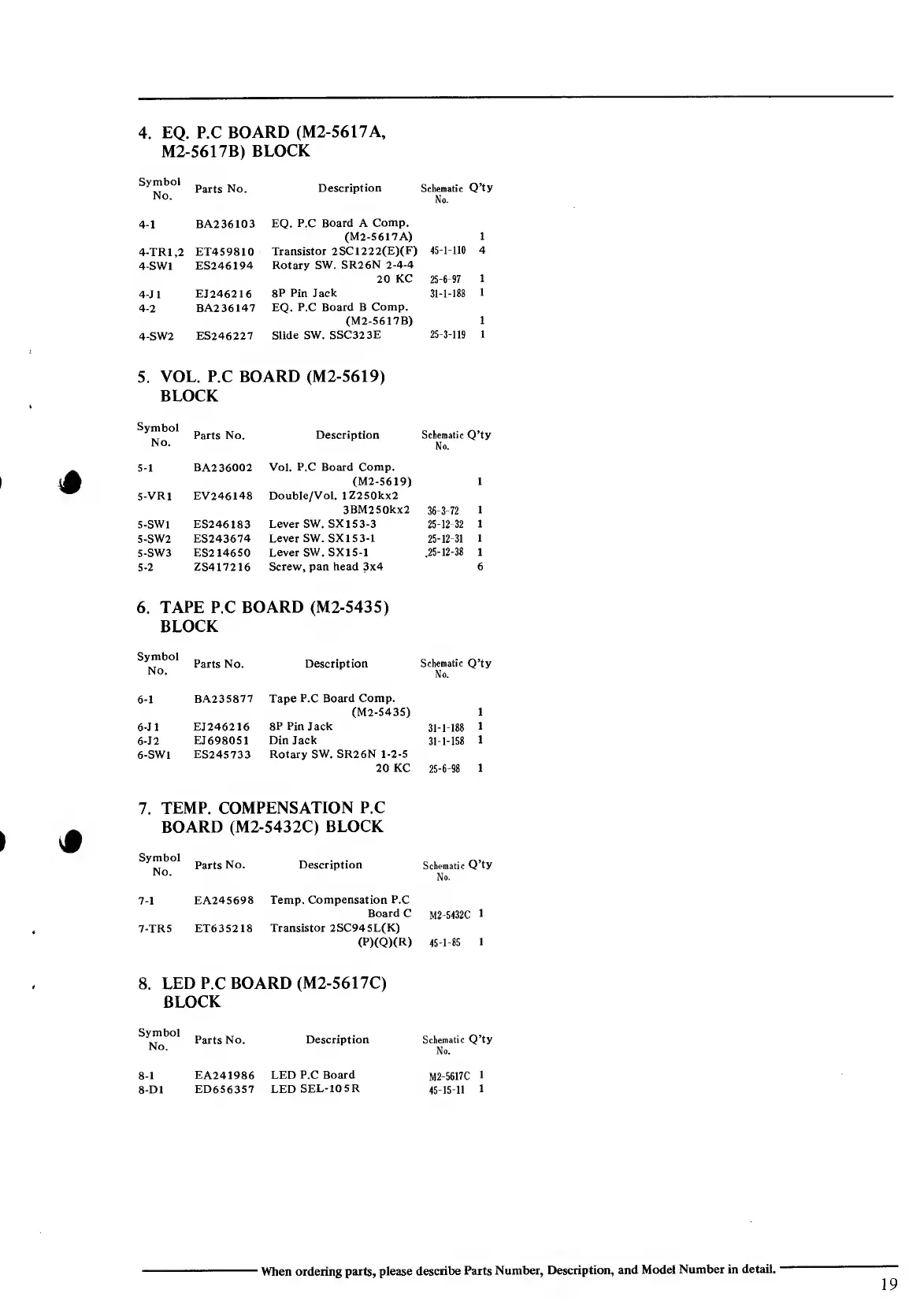

4. E Q. P.C BOARD (M2-5617A,
M2-5617B) BLOCK
Symbol
No.
Parts No.
Description
Schematic
No.
Q’ty
4-1
BA236103
EQ. P.C Board A Comp.
(M2-5617A)
1
4-TR1.2
ET459810
Transistor 2SC1222(E)(F)
45-1-110
4
4-SW1
ES246194
Rotary SW. SR26N 2-4-4
20 KC 25-6-97
1
4-J1
EJ246216
8P Pin Jack 31-1-188
1
4-2
BA236147
EQ. P.C Board B Comp.
(M2-5617B)
1
4-SW2
ES246227
Slide SW. SSC323E
25-3-119
1
5. V OL. P.C BOARD (M2-5619)
BLOCK
Symbol
No.
Parts No.
Description Schematic Q’ty
No.
5-1
BA236002
Vol. P.C Board Comp.
(M2-5619)
1
5-VR1 EV246148
Double/Vol. lZ250kx2
3BM250kx2
36-3-72
1
5-SW1 ES246183
Lever SW. SX1S3-3 25-12-32
1
S-SW2 ES243674
Lever SW. SX153-1
25-12-31
1
5-SW3
ES214650
Lever SW. SX15-1
.25-12-38
1
5-2 ZS417216
Screw, pan head 3x4
6
6. T APE P.C BOARD (M2-5435)
BLOCK
Symbol
No.
Parts No.
Description
Schematic Q’ty
No.
6-1
BA235877
Tape P.C Board Comp.
(M2-5435)
1
6-J1
EJ246216
8P Pin Jack
31-1-188 1
6-J2
EJ6980S1
Din Jack
31-1-158 1
6-SW1 ES245733
Rotary SW. SR26N 1-2-5
20 KC
25-6-98 1
7. TEMP. COMPENSATION P.C
BOARD (M2-5432C) BLOCK
Symbol
No.
Parts No.
Description
Schematic Q’ty
No.
7-1
EA245698
Temp. Compensation P.C
Board C
M2-5432C 1
7-TR5 ET635218
Transistor 2SC945L(K)
(P)(Q)(R)
45-1-85 1
8. LED P.C BOARD (M2-5617C)
BLOCK
Symbol
No.
Parts No.
Description
Schematic Q’ty
No.
8-1
EA241986
LED P.C Board
M2-5617C 1
8-D1
ED656357
LED SEL-10 5R
45-15-11 1
When ordering parts, please describe Parts Number, Description, and Model Number in detail.
