Akai AM-2600

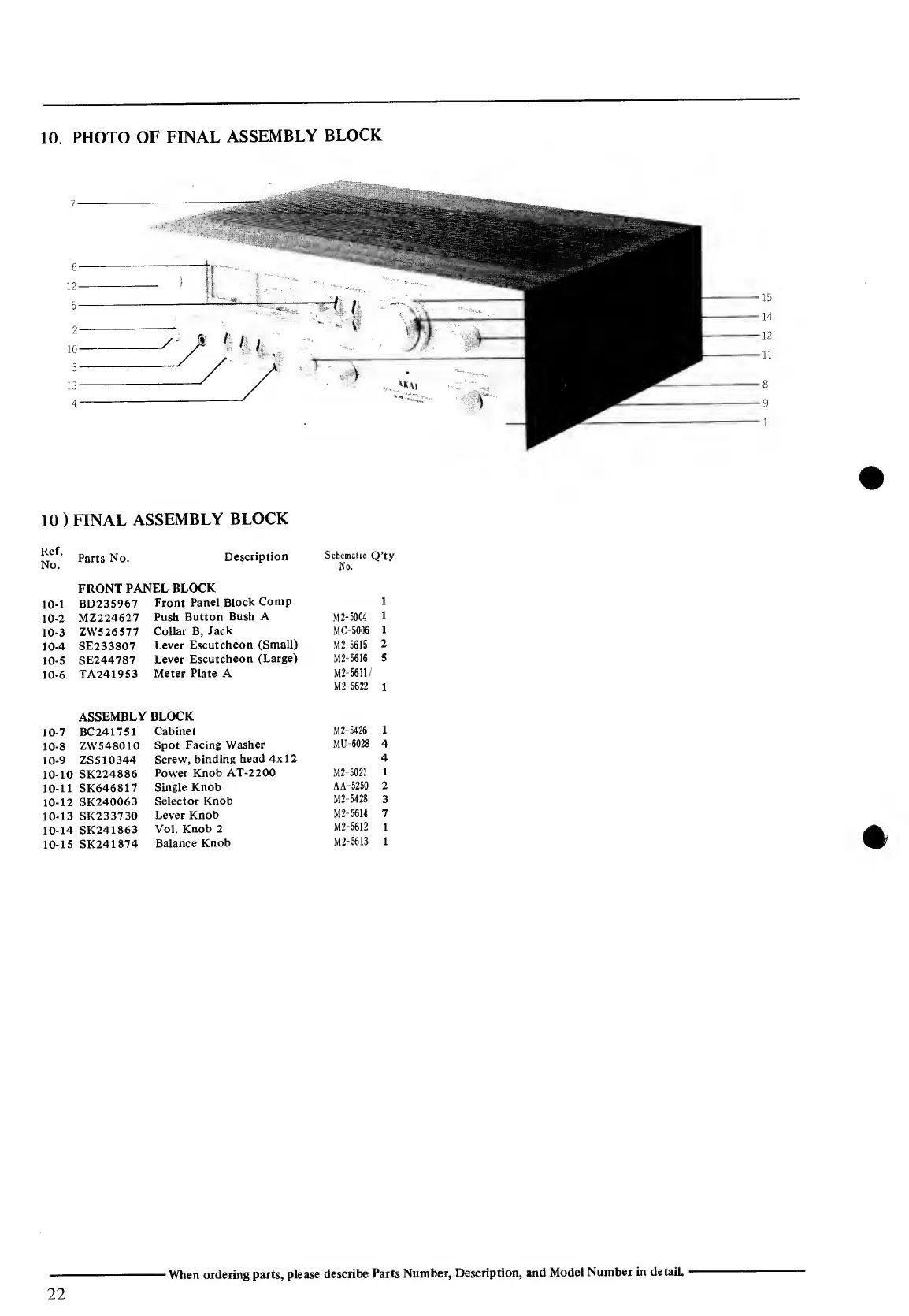

10. PHOTO OF FINAL ASSEMBLY BLOCK
10 ) FINAL ASSEMBLY BLOCK
Ref.
No.
Parts No.
Description
Schematic Q’ty
No.
FRONT PANEL BLOCK
10-1
BD235967
Front Panel Block Comp
1
10-2
MZ224627
Push Button Bush A
M2- 5004
1
10-3
ZWS26577
Collar B, Jack
MC-5006
1
10-4 SE233807
Lever Escutcheon (Small)
M2-5615
2
10-5
SE244787
Lever Escutcheon (Large)
M2-5616
5
10-6
TA241953
Meter Plate A
M 2- 5611 /
M2-5622
1
ASSEMBLY BLOCK
10-7
BC241751
Cabinet
M2-5426
1
10-8
ZW548010
Spot Facing Washer
MU-6028
4
10-9
ZS510344
Screw, binding head 4x12
4
10-10
SK224886
Power Knob AT-2200
M2-5021
1
10-11
SK646817
Single Knob
AA-5250 2
10-12
SK240063
Selector Knob
M2-5428
3
10-13
SK233730
Lever Knob
M2-5614 7
10-14
SK241863
Vol. Knob 2
M2-5612
1
10-15
SK241874
Balance Knob
M2- 5613
1
22
When ordering parts, please describe Parts Number, Description, and Model Number in detail.
