Akai AM-2600

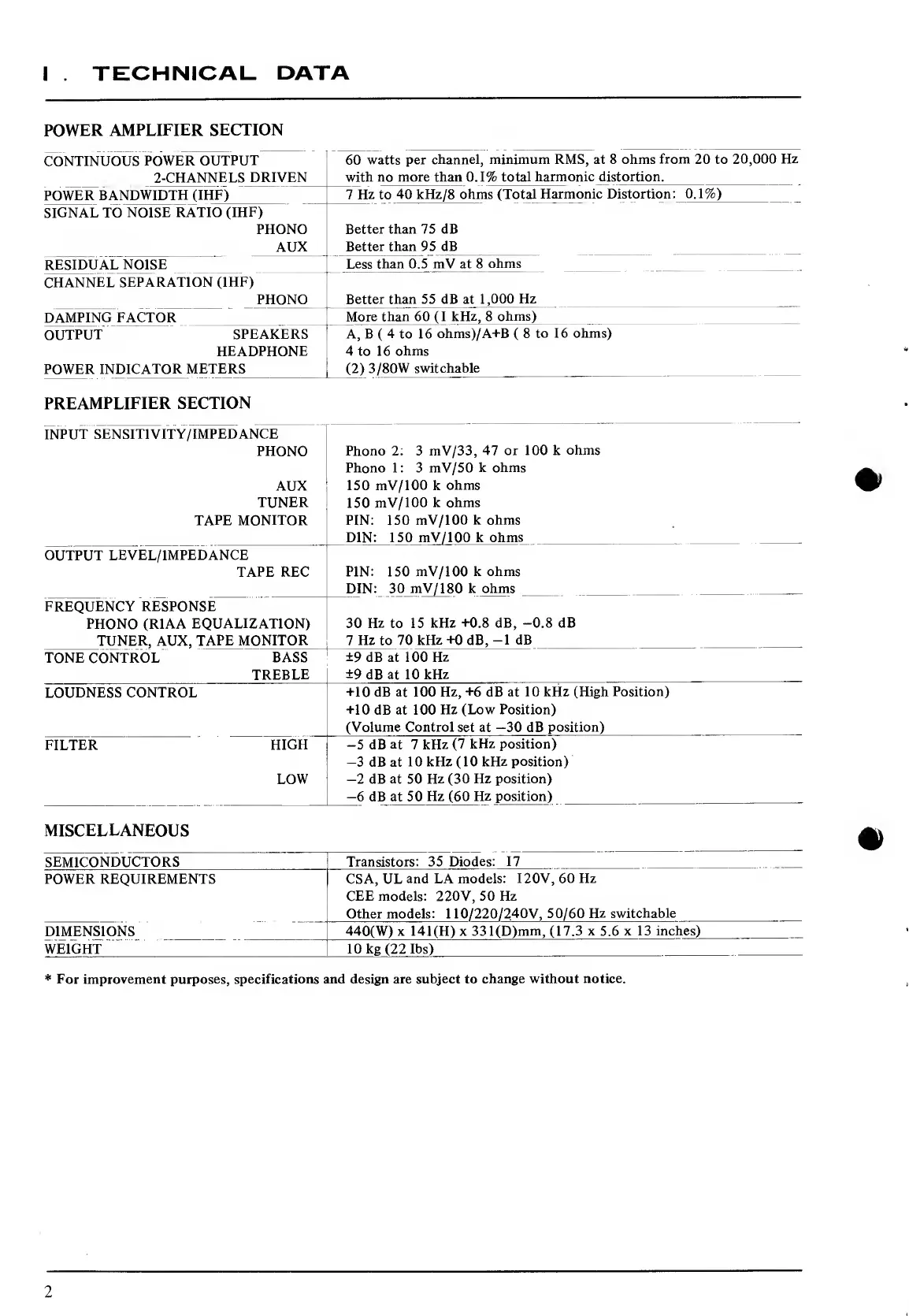

I . TECHNICAL DATA
POWER AMPLIFIER SECTION
CONTINUOUS POWER OUTPUT
2-CHANNELS DRIVEN
60 watts per channel, minimum RMS, at 8 ohms from 20 to 20,000 Hz
with no more than 0.1% total harmonic distortion.
POWER BANDWIDTH (IHF)
7 Hz to 40 kHz/8 ohms (Total Harmonic Distortion: 0.1%)
SIGNAL TO NOISE RATIO (IHF)
PHONO
AUX
Better than 75 dB
Better than 95 dB
RESIDUAL NOISE
Less than 0.5 mV at 8 ohms
CHANNEL SEPARATION (IHF)
PHONO
Better than 55 dB at 1,000 Hz
DAMPING FACTOR
More than 60 (1 kHz, 8 ohms)
OUTPUT SPEAKERS
HEADPHONE
POWER INDICATOR METERS
A, B ( 4 to 16 ohms)/A+B ( 8 to 16 ohms)
4 to 16 ohms
(2) 3/80W switchable
PREAMPLIFIER SECTION
INPUT SENSITIVITY/IMPEDANCE
PHONO
AUX
TUNER
TAPE MONITOR
Phono 2: 3 mV/33, 47 or 100 k ohms
Phono 1: 3 mV/50 k ohms
150 mV/100 k ohms
150 mV/100 k ohms
PIN: 150 mV/100 k ohms
DIN: 150 mV/100 k ohms
OUTPUT LEVEL/IMPEDANCE
TAPE REC
PIN: 150 mV/100 k ohms
DIN: 30 mV/180 k ohms
FREQUENCY RESPONSE
PHONO (RIAA EQUALIZATION)
TUNER, AUX, TAPE MONITOR
30 Hz to 15 kHz +0.8 dB, -0.8 dB
7 Hz to 70 kHz +0 dB, -1 dB
TONE CONTROL BASS
TREBLE
±9 dB at 100 Hz
±9 dB at 10 kHz
LOUDNESS CONTROL
+10 dB at 100 Hz, +6 dB at 10 kHz (High Position)
+10 dB at 100 Hz (Low Position)
(Volume Control set at —30 dB position)
FILTER HIGH
LOW
—5 dB at 7 kHz (7 kHz position)
—3 dB at 10 kHz (10 kHz position)
—2 dB at 50 Hz (30 Hz position)
—6 dB at 50 Hz (60 Hz position)
MISCELLANEOUS
SEMICONDUCTORS Transistors: 35 Diodes: 17
POWER REQUIREMENTS
CSA, UL and LA models: 120V, 60 Hz
CEE models: 220V, 50 Hz
Other models: 110/220/240V, 50/60 Hz switchable
DIMENSIONS
440(W) x 141(H) x 331(D)mm, (17.3 x 5.6 x 13 inches)
WEIGHT 10 kg (22 lbs)
* For improvement purposes, specifications and design are subject to change without notice.
