Akai APC20 Service Manual

Akai APC20
42 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #6 background imageLoading...
Page #6 background image
Equipment Needed.
1 x1
2 x1
3 x1
4 x1
5 x1
6 x1
Setting up
1 Plug in th power and USB cable to the APC20.
2 Connects the usb with the PC
P
art
I
Main Board Power Test(PCBA)
1 Test using multimeter to measure the voltage according to the location shown in below figure.
2 If all the value tested are same after round up then the main board power test is passed.

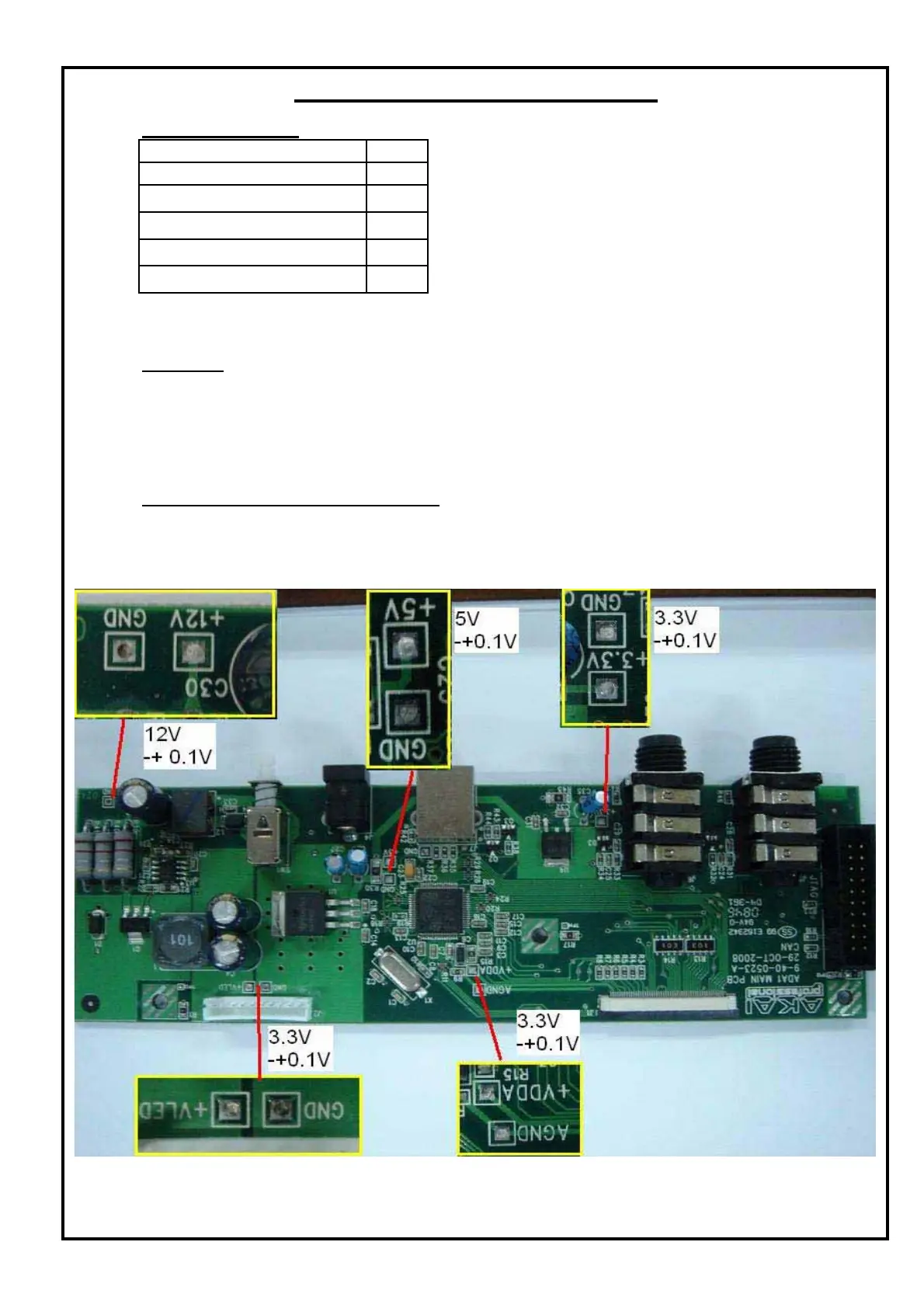

Figure 1: Location to test voltage
USB cable
PC
MultiMeter
APC20 12V 2A adaptor
APC20 TEST PROCEDURES
APC20
Foot Switch
