Akai APC20 Service Manual

Part II
Functionality Test

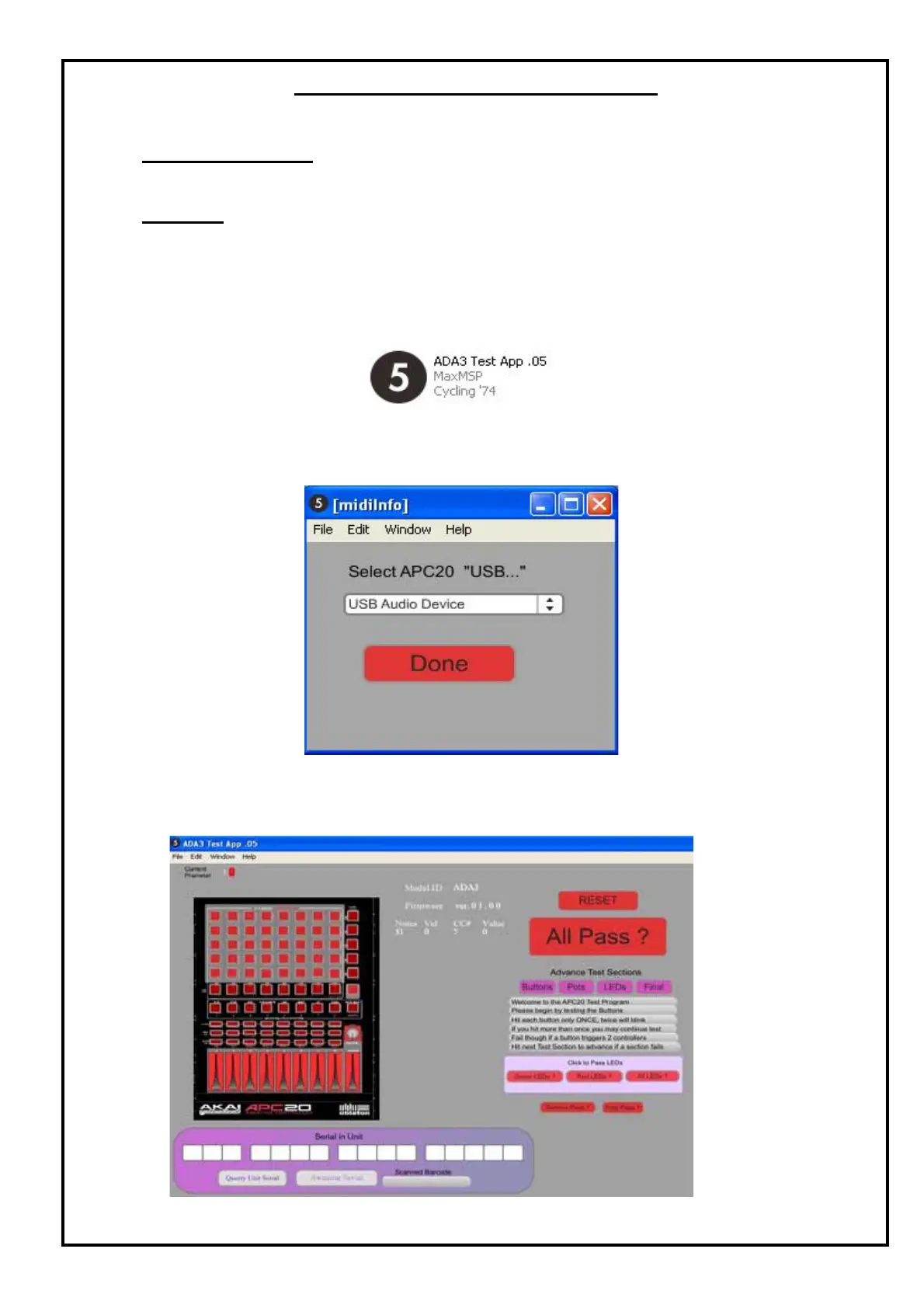

Setting up
1 Plug in the power and USB cable to the APC20.
2 Connects the usb with the PC
3 Press the power switch to power on the set before start the test program.
4 Open the APC20 Test Application by double click or simply select using a mouse and press the
Enter button on the keyboard on the APC20 Test Program .10.exe as shown in the figure below.
Figure 2: APC20 Test Program ICON
5 After the program have been loaded, it will pop up a selection window which you need to select
USB device as shown below. Select USB Audio Device for WinXP and APC40 for Win Vista
Figure 3: Selecting USB device
6 After Selecting the USB device used, a main test window will show up as below.
Figure 4: Main test window
APC20 TEST PROCEDURES

Akai APC20 Specifications

General

Type	MIDI Controller
Connectivity	USB
Compatibility	Ableton Live
Manufacturer	Akai Professional
Model	APC20
Knobs	8
Software	Ableton Live Lite (included)
Power	USB Bus Powered
Weight	2.2 lbs
MIDI I/O	USB
Faders	8 channel faders, 1 master fader
Buttons	40 clip launch buttons, 16 scene launch buttons
