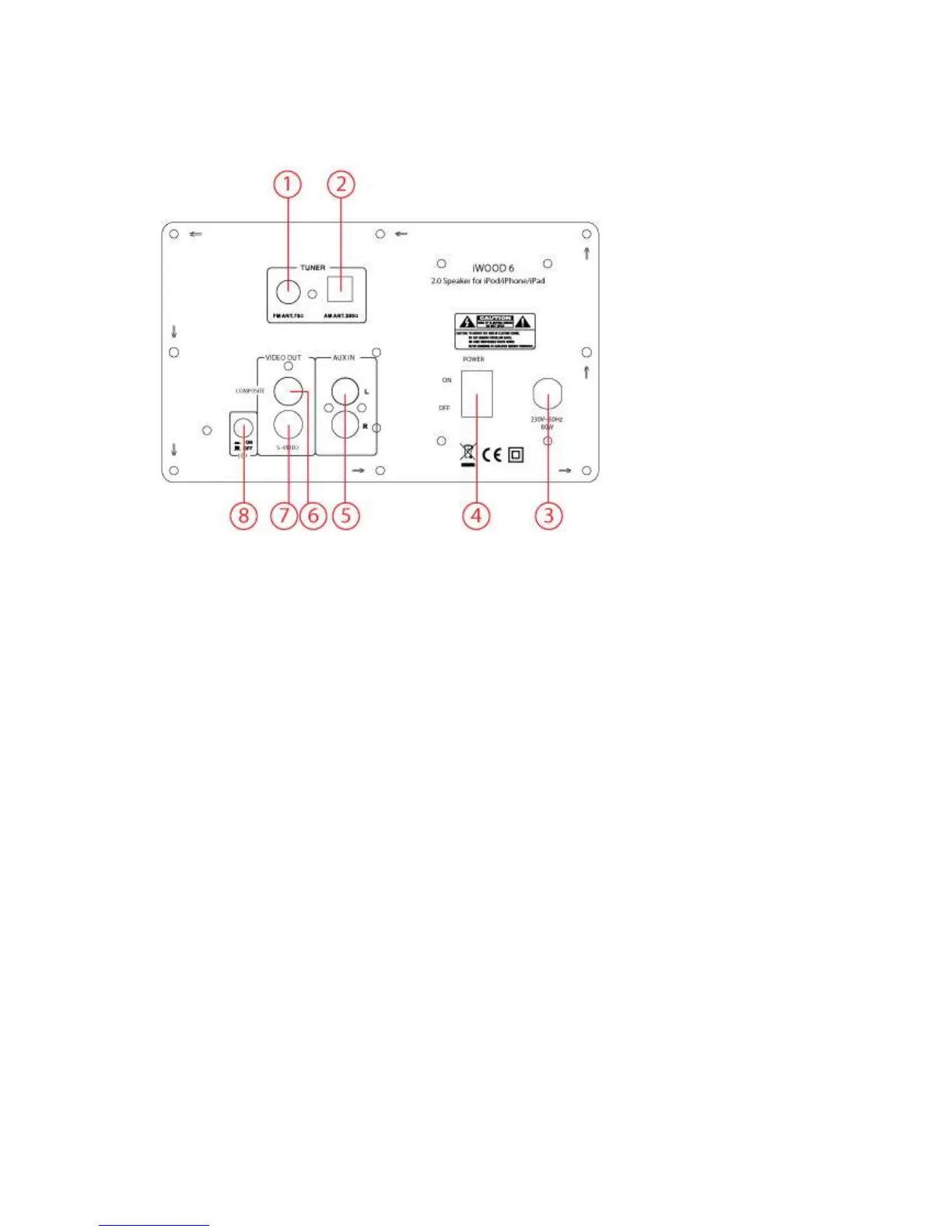

Connections
1. FM 75 OHM antenna input
2. AM 300 OHM antenna input
220V connection
On / Off key (POWER)
1. AUX IN
2. Composite video OUT
3. S-Video
4. Warning LED
Connecting the system
Audio connections (input)
These connections allow you to receive audio signal from a connected CD/DVD player or amplifier.
Connect a suitable cable to the R/L channels of the AUX IN connection.
The video connections allow you to send to video signal (still images or movies) to a connected TV.
The appliance has the following video outputs (in order of preference):
S-Video: Insert a suitable cable into the S-VIDEO OUTPUT connection.
Composite video: Insert a suitable cable into the COMPOSITE connection.
