Akai AT-S55/L User Manual

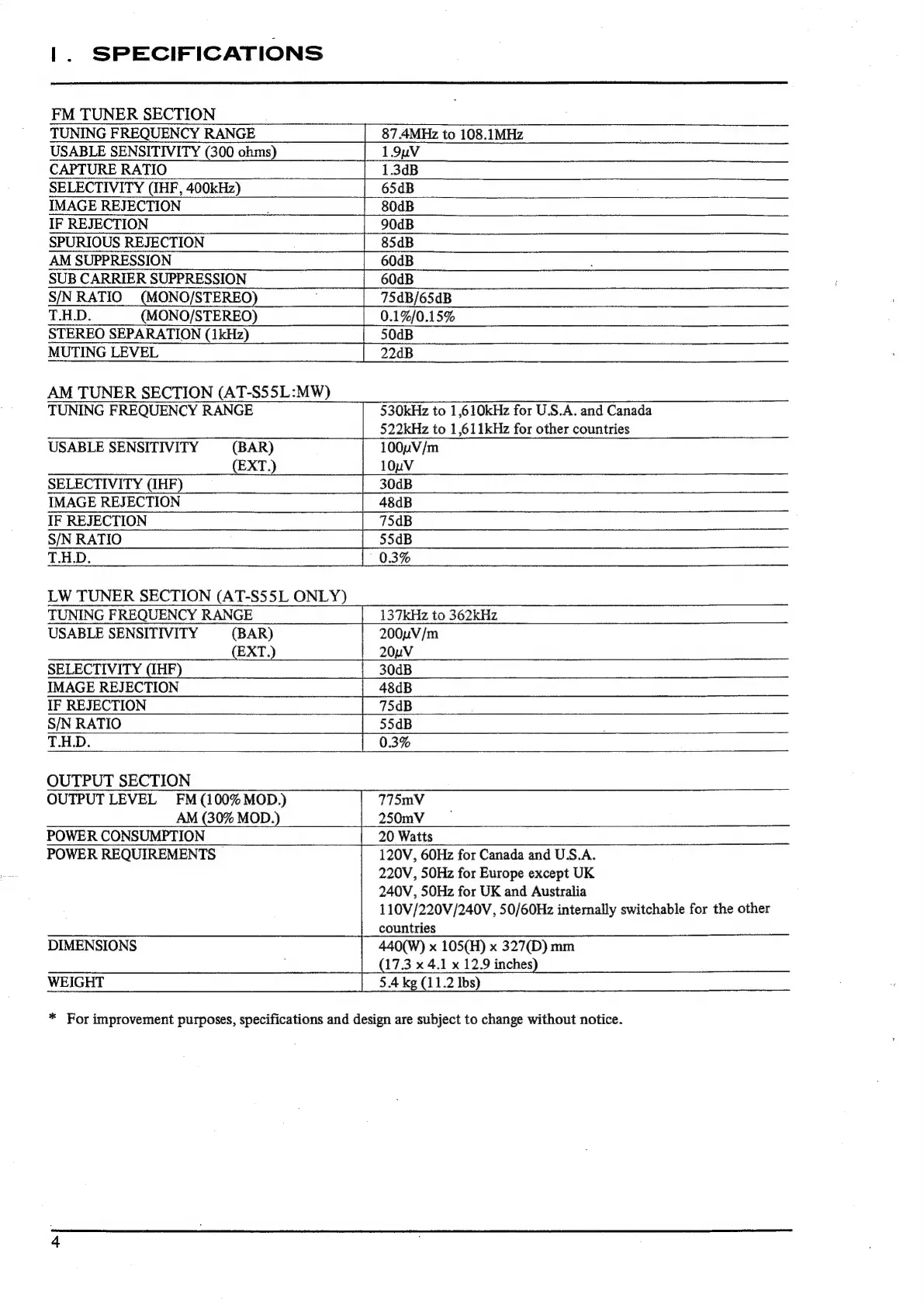

|. SPECIFICATIONS
FM TUNER SECTION
TUNING FREQUENCY RANGE
87.4MHz to 108.1MHz
USABLE SENSITIVITY (300 ohms) 1.9uV
CAPTURE RATIO
1.3dB
SELECTIVITY (HF, 400kHz) 65dB
IMAGE REJECTION 80dB
AM SUPPRESSION
60dB
SUB CARRIER SUPPRESSION 60dB
S/N RATIO (MONO/STEREO) 75dB/65dB
T.H.D. (MONO/STEREO)
STEREO SEPARATION (1kHz)
MUTING LEVEL
AM TUNER SECTION (AT-S55L:MW)
0.1%/0.15%
50dB
TUNING FREQUENCY RANGE
USABLE SENSITIVITY (BAR)
22dB
530kHz to 1,610kHz for U.S.A. and Canada
522kHz to 1,611kHz for other countries
100uV/m
(EXT.) 10uV
SELECTIVITY (IHF) 30dB
IMAGE REJECTION 48dB
IF REJECTION 75dB
S/N RATIO 55dB
T.H.D.
0.3%
LW TUNER SECTION (AT-S55L ONLY)
TUNING FREQUENCY RANGE 137kHz to 362kHz
USABLE SENSITIVITY (BAR) 200uV/m
EXT.) 20uV
SELECTIVITY (IHF 30dB
IMAGE REJECTION 48dB
IF REJECTION 75dB
S/N RATIO 55dB
T.H.D. 0.3%
OUTPUT SECTION
OUTPUT LEVEL FM (100% MOD.) 775mV
AM (30% MOD.) 250mV >
POWER CONSUMPTION |_20 Watts
POWER REQUIREMENTS | 120V, 60Hz for Canada and U.S.A.
220V, 50Hz for Europe except UK
240V, 50Hz for UK and Australia
110V/220V/240V, 50/60Hz internally switchable for the other
countries
DIMENSIONS 440(W) x 105(H) x 327(D) mm
17.3 x 4.1 x 12.9 inches
WEIGHT 5.4 kg (11.2 Ibs)
* For improvement purposes, specifications and design are subject to change without notice.
