Akai ATD1410X2

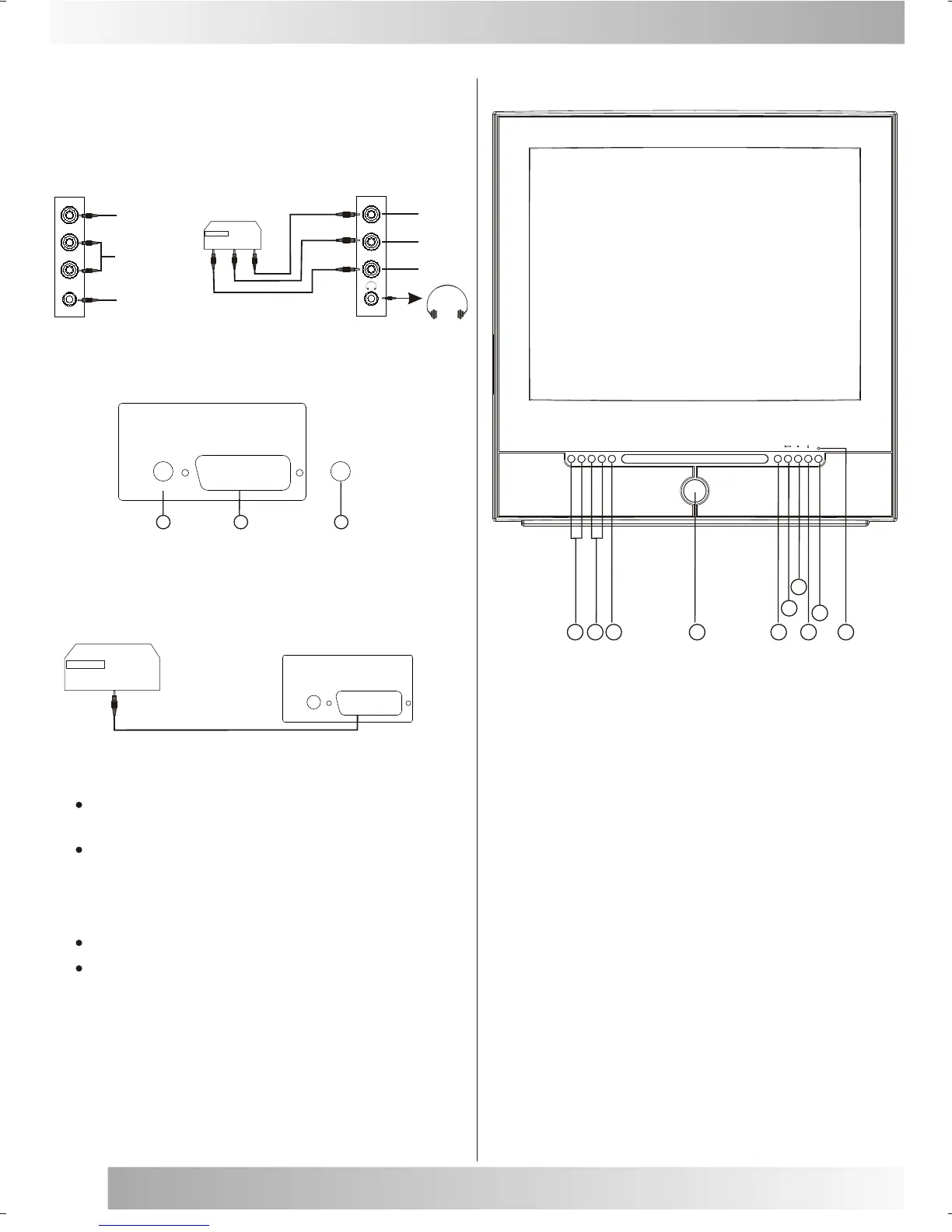

Connection Panels
Side AV
SCART Procedure
Front Control Panel
COAXIAL Procedure
Rear of TV
VIDEO
Headphone
plug
Connect equipment as shown to rear SCART
connect.
TV will check SCART signal Automatically and
change to SCART status.
The actual configuration on you TV maybe different,
depending on your model.
VIDEO IN
AUDIO L/R IN
HEADPHONES OUT
VCR
VIDEO
LEFT
RIGHT
LEFT
RIGHT
SCART
COAXIAL OUT
2
3
1. COAXIAL digital sound output for DOLBY 5.1 channel.
2. SCART AUDIO / VIDEO INPUT / OUTPUT Connector.
3. 75ohm coaxial Connect for AIRIAL / CABLE network.
VCR
SCART
COAXIAL OUT
Connect coaxial signal to sound equipment .
Press AV/DVD on the remote control to change
DVD status.
Note: Coaxial output is effective only DVD status.
1
TV/DVD
MENU
V- V+ P+P-
2 3 5
6
7
8
9
1. Volume adjustment.
2. Program selection.
3. Menu display.
4. Power
5. TV/DVD change.
6. DVD player pause.
7. Stop.
8. Open/Close.
9. Remote control sensor.
10. Power indicator.
4
10
Optional Equipment Connections
8
1
