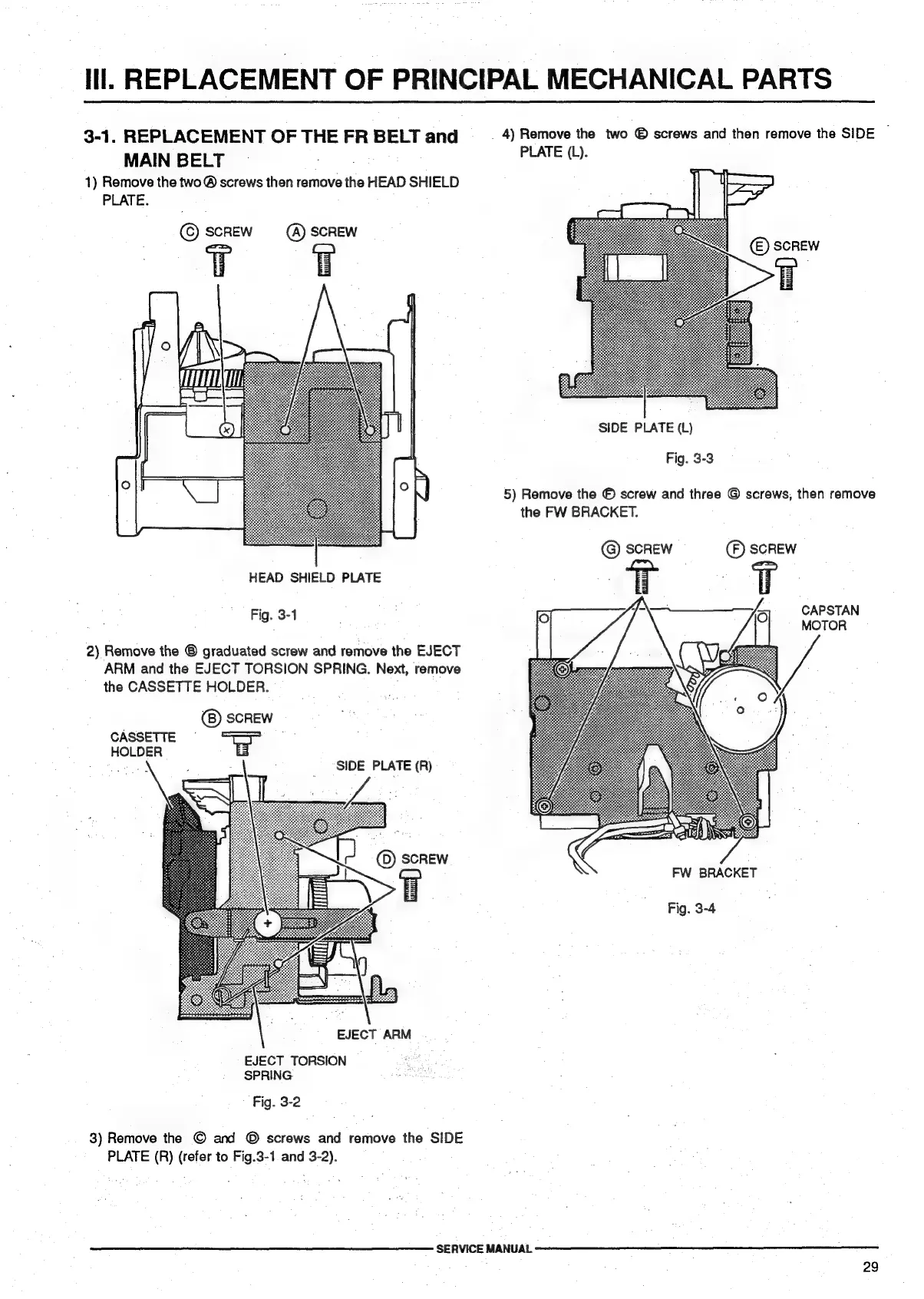

lil. REPLACEMENT OF PRINCIPAL MECHANICAL PARTS
3-1. REPLACEMENT OF THE FR BELT and . 4) Remove the two © screws and then remove the SIDE
MAIN BELT — — cE
1) Remove the two@ screws then remove the HEAD SHIELD
PLATE.
© screw (A) SCREW
SIDE PLATE (L)
Fig. 3-3
5) Remove the © screw and three @ screws, then remove
the FW BRACKET.
© screw (@) SscREW
HEAD SHIELD PLATE A T
Fig. 3-1
CAPSTAN
MOTOR
2) Remove the © graduated screw and remove the EJECT
ARM and the EJECT TORSION SPRING. Next, remove
the CASSETTE HOLDER.
SCREW
CASSETTE ~ as
HOLDER
ges, SIDE PLATE (R)
FW BRACKET
Fig. 3-4
EJECT ARM
EJECT TORSION
SPRING.
Fig. 3-2
3) Remove the © and © screws and remove the SIDE
PLATE (R) (refer to Fig.3-1. and 3-2).
SERVICE MANUAL
aan 29
