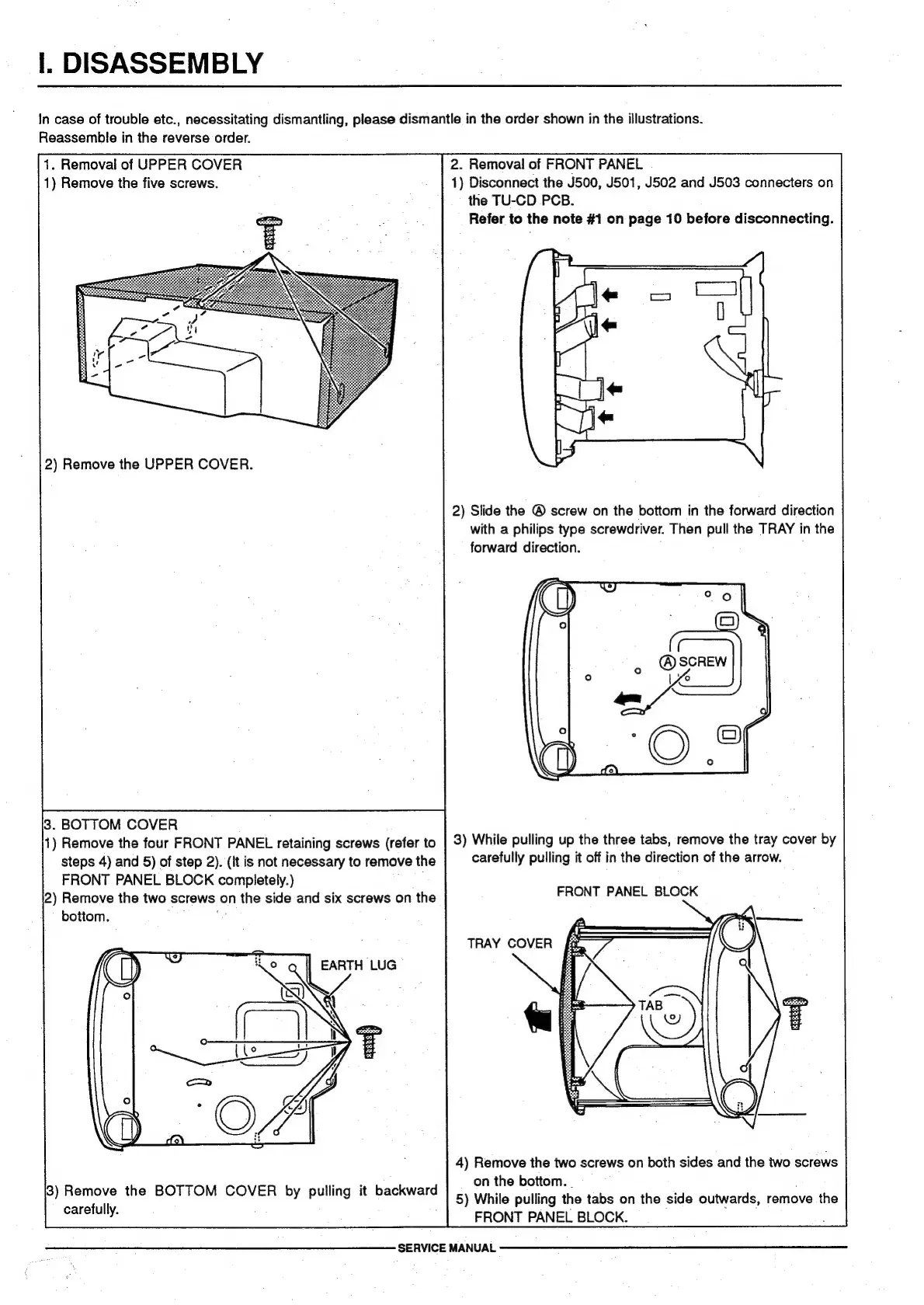

DISASSEMBLY
In
case
of
trouble
etc.,
necessitating
dismantling,
please
dismantle
in
the
order
shown
in
the
illustrations.
Reassemble
in
the
reverse
order.
1.
Removal
of
UPPER
COVER
1)
Remove
the
five
screws.
2.
Removal
of
FRONT
PANEL
1)
Disconnect
the
J500,
J501,
J502
and
J503
connecters
on
the
TU-CD
PCB.
Refer
to
the
note
#1
on
page
10
before
disconnecting.
2)
Remove
the
UPPER
COVER.
2)
Slide
the
@
screw
on
the
bottom
in
the
forward
direction
with
a
philips
type
screwdriver.
Then
pull
the
TRAY
in
the
forward
direction.
,
—x
al
:
0
Soren
°
fo
on
/S
3)
While
pulling
up
the
three
tabs,
remove
the
tray
cover
by
carefully
pulling
it
off
in
the
direction
of
the
arrow.
3.
BOTTOM
COVER
1)
Remove
the
four
FRONT
PANEL
retaining
screws
(refer
to
steps
4)
and
5)
of
step
2).
(It
is
not
necessary
to
remove
the
FRONT
PANEL
BLOCK
completely.)
2)
Remove
the
two
screws
on
the
side
and
six
screws
on
the
bottom.
-
FRONT
PANEL
BLOCK
TRAY
COVER
4)
Remove
the
two
screws
on
both
sides
and
the
two
screws
on
the
bottom.
.
5)
While
pulling
the
tabs
on
the
side
outwards,
remove
the
FRONT
PANEL
BLOCK.
3)
Remove
the
BOTTOM
COVER
by
pulling
it
backward
carefully.
:
SERVICE
MANUAL
