Akai CS-34 - D.C. RESISTANCE OF VARIOUS COILS; CLASSIFICATION OF VARIOUS P.C. BOARDS

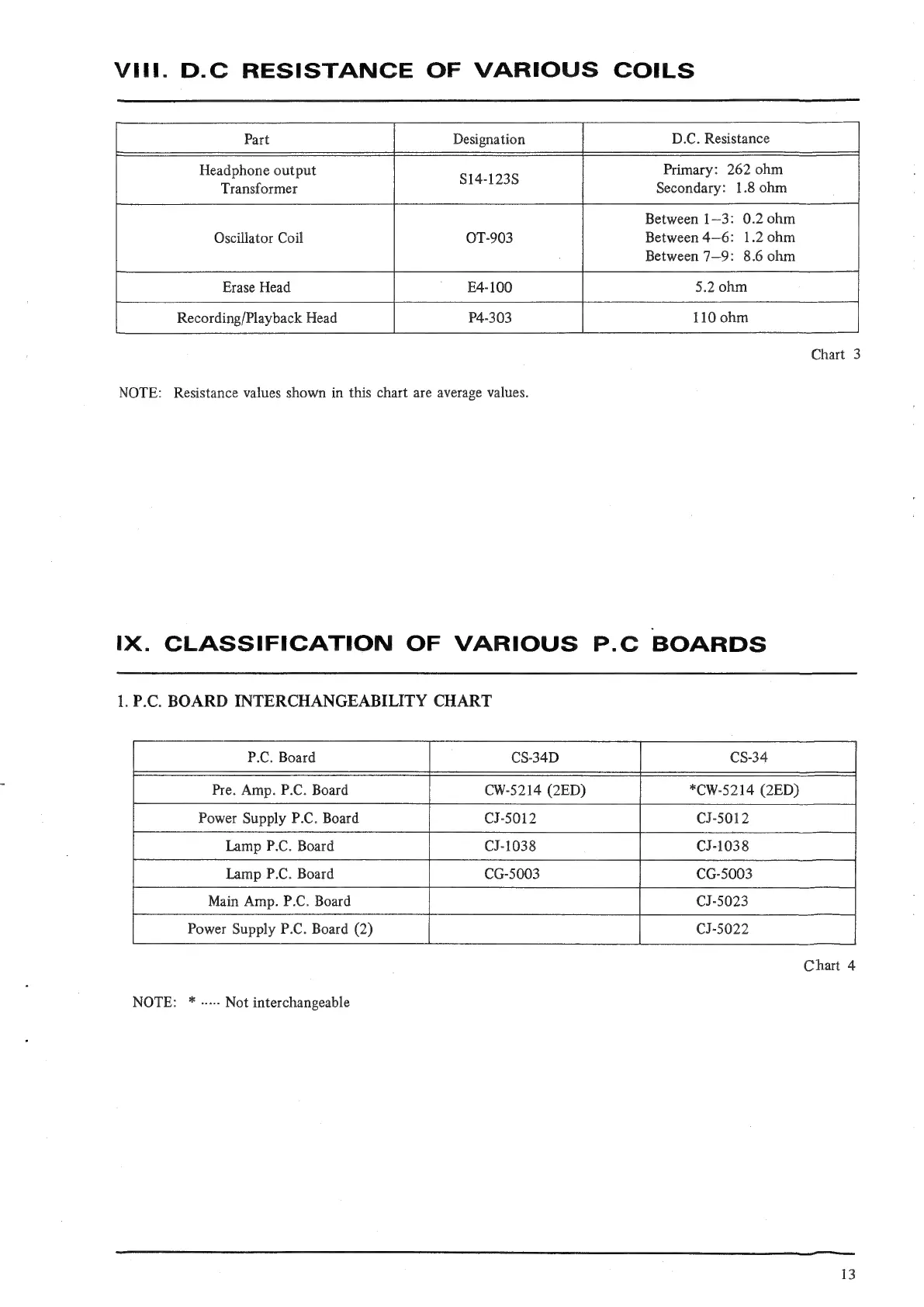

Vill. D.C RESISTANCE OF VARIOUS COILS
Part Designation D.C. Resistance
Headphone output Primary: 262 ohm
Transformer i Secondary: 1.8 ohm
Between 1—3: 0.2 ohm
OT-903 Between 4—6: 1.2 ohm
Between 7—9: 8.6 ohm
P4-303 110 ohm
Chart 3
Oscillator Coil
Erase Head
Recording/Playback Head
NOTE: Resistance values shown in this chart are average values.
IX. CLASSIFICATION OF VARIOUS P.C BOARDS
1. P.C. BOARD INTERCHANGEABILITY CHART
P.C. Board CS-34D CS-34
Pre. Amp. P.C. Board CW-5214 (2ED) *CW-5214 (2ED)
Power Supply P.C. Board CJ-5012 CJ-5012
Lamp P.C. Board CJ-1038 CJ-1038
Lamp P.C. Board CG-5003 CG-5003
Main Amp. P.C. Board We. cee al CJ-5023
Power Supply P.C. Board (2)
NOTE: * .«--- Not interchangeable
Chart 4
