Akai GX-646 Service Manual

il. CONTROLS

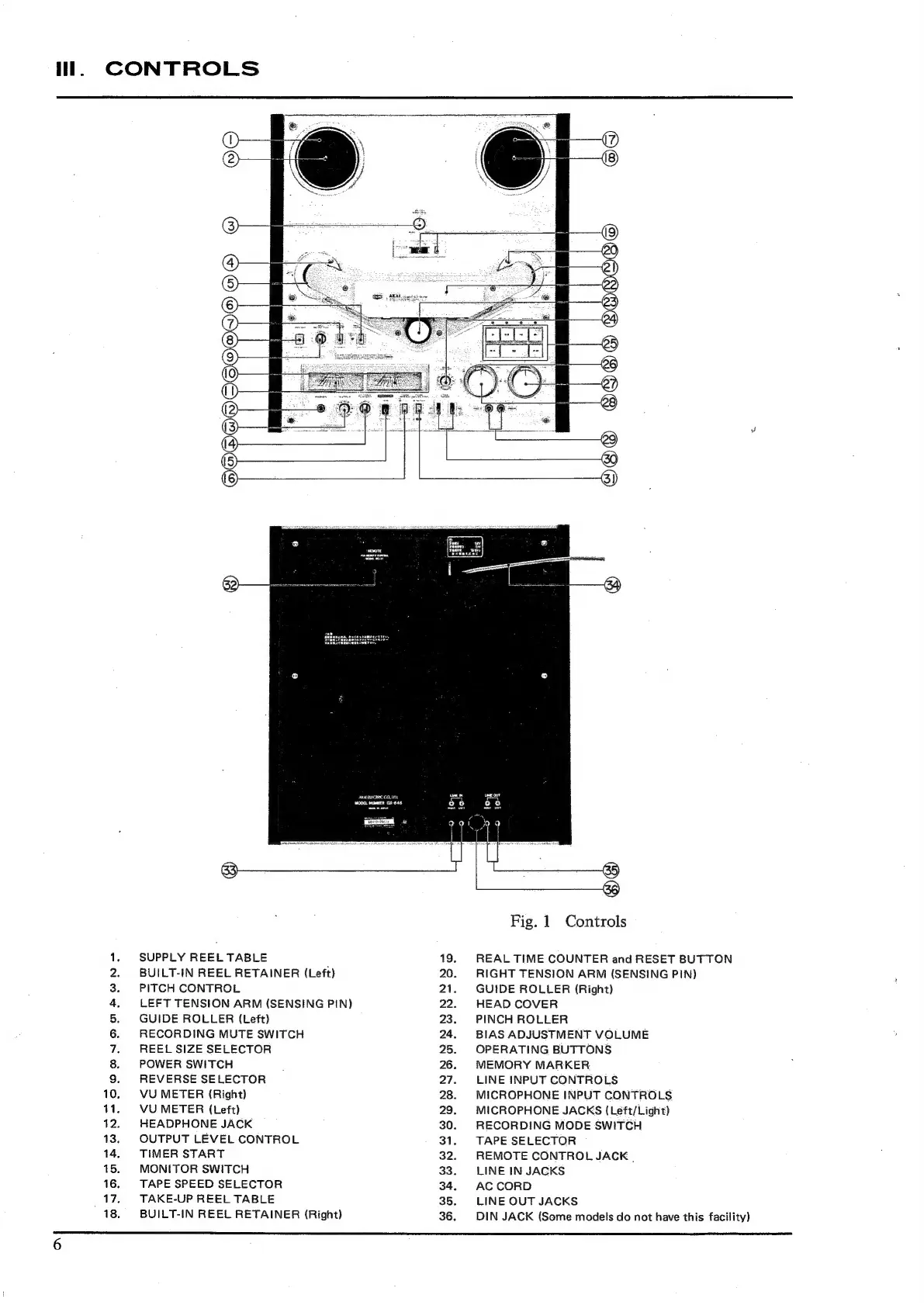

Fig. 1 Controls
SUPPLY REEL TABLE 19. REAL TIME COUNTER and RESET BUTTON
1.
2. BUILT-IN REEL RETAINER (Left) 20. RIGHT TENSION ARM (SENSING PIN)
3. PITCH CONTROL 21. GUIDE ROLLER (Right)
4. LEFT TENSION ARM (SENSING PIN) 22. HEAD COVER
5. GUIDE ROLLER (Left) 23. PINCH ROLLER
6. RECORDING MUTE SWITCH 24. BIAS ADJUSTMENT VOLUME
7. REELSIZE SELECTOR 25. OPERATING BUTTONS
8. POWER SWITCH ; 26. MEMORY MARKER
9. REVERSE SELECTOR 27. LINE INPUT CONTROLS
10, VU METER (Right) 28. MICROPHONE INPUT CONTROLS
11. VU METER (Left) 29. MICROPHONE JACKS (Left/Light)
12. HEADPHONE JACK 30. RECORDING MODE SWITCH
13, OUTPUT LEVEL CONTROL 31. TAPE SELECTOR
14, TIMER START 32. REMOTE CONTROL JACK .
15. MONITOR SWITCH 33. LINE IN JACKS
16. TAPE SPEED SELECTOR 34. ACCORD
17, TAKE-UP REEL TABLE 35. LINE OUT JACKS
18.
BUILT-IN
REEL
RETAINER
(Right)
36.
DIN
JACK
(Some
models
do
not
have
this
facility}

Akai GX-646 Specifications

General

Brand	Akai
Model	GX-646
Category	Tape Deck
Language	English
