Akai GX-F31

I FINAL ASSEMBLY BLOCK I

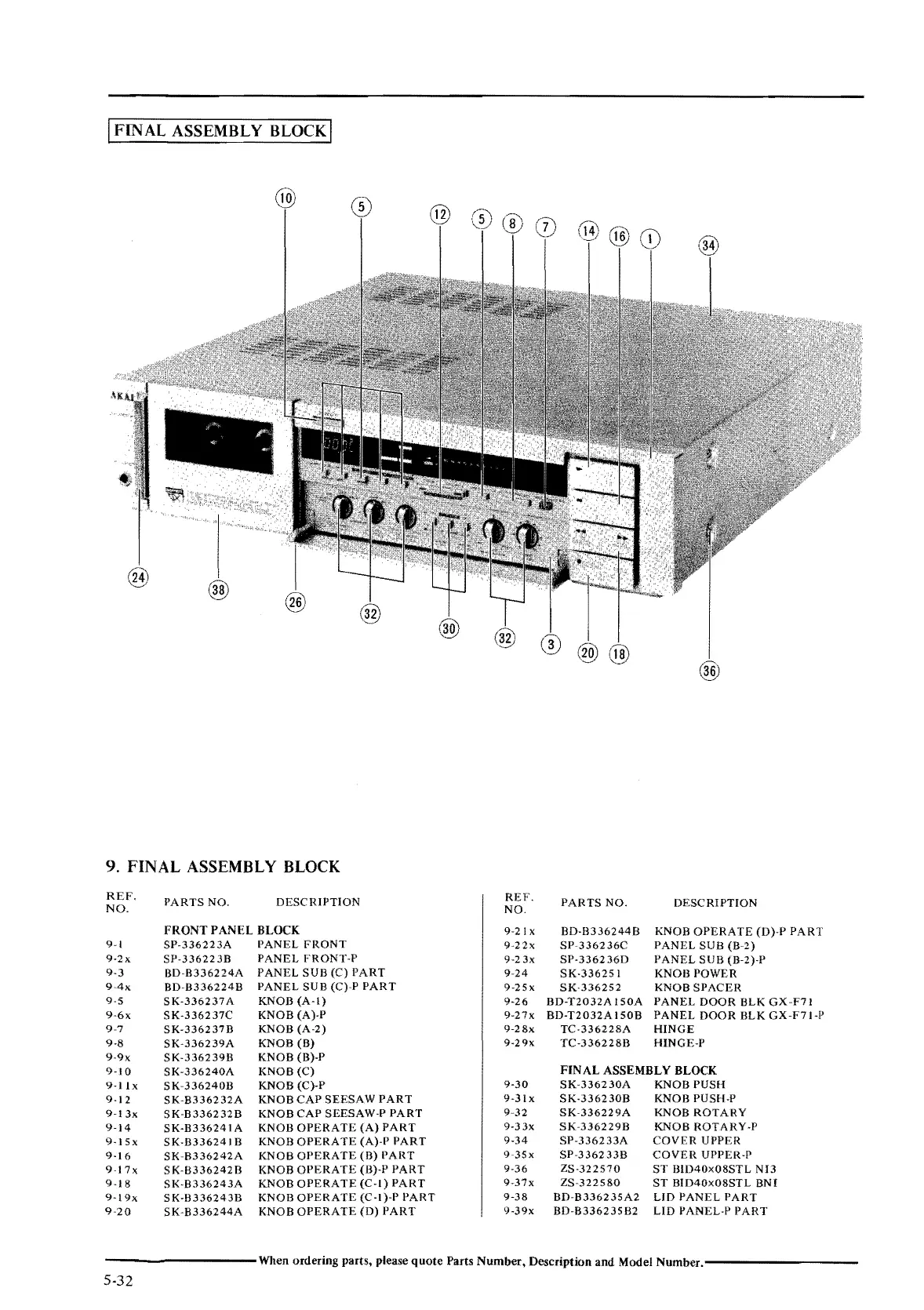

9. FINAL ASSEMBLY BLOCK
REF.
PARTS NO.
DESCRIPTION
REF.
PARTS NO. DESCRIPTION
NO.
NO.
FRONT PANEL BLOCK
9-21 X
BD-B336244B
KNOB OPERATE (D)-P PART
9-1
SP-336223A
PANEL FRONT
9-22x SP-336236C
PANEL SUB (B-2)
9-2x
SP-336223B
PANEL FRONT-P
9-23x
SP-336236D
PANEL SUB (B-2)-P
9-3
BD-B336224A
PANEL SUB (C) PART
9-24
SK-33625 I
KNOB POWER
9-4x
BD-B336224B
PANEL SUB (C)-P PART
9-2Sx
SK-336252 KNOB SPACER
9-5
SK-336237A
KNOB (A-1}
9-26
BD-T2032A I S0A
PANEL DOOR BLK GX-F71
9-6x
SK-336237C
KNOB (A)-P 9-27x
BD-T2032Al SOB
PANEL DOOR BLK GX-F71-P
9-7
SK-336237B KNOB (A-2)
9-28x
TC-336228A
HINGE
9-8
SK-336239A
KNOB (B)
9-29x TC-336228B
HINGE-P
9-9x
SK-336239B
KNOB (B)-P
9-10
SK-336240A
KNOB (C)
FINAL ASSEMBLY BLOCK
9-1 Ix
SK-336240B
KNOB (C)-P
9-30
SK-336230A
KNOB PUSH
9-12
SK-B3362 32A
KNOB CAP SEESAW PART
9-3 IX
SK-336230B
KNOB PUSH-P
9-13x
SK-B336232B
KNOB CAP SEESAW-P PART
9-32
SK-336229A KNOB ROTARY
9-14
SK-B33624 I A
KNOB OPERATE (A) PART
9-33x
SK-336229B KNOB ROTARY-P
9-1 Sx
SK-B33624 I B
KNOB OPERATE (A)-P PART
9-34 SP-336233A
COVER UPPER
9-16
SK-B336242A
KNOB OPERATE (B) PART
9-3Sx
SP-336233B COVER UPPER-P
9-l 7x
SK-B3362428
KNOB OPERATE (B)-P PART
9-36 ZS-322570
ST BID40x08STL NI3
9-18
SK-8336243A
KNOB OPERATE (C-1) PART
9-37x
ZS-322580
ST BID40x08STL BNI
9-l 9x
SK-B336243B
KNOB OPERATE (C-1)-P PART
9-38
BD-B3362 35A2
LID PANEL PART
9-20
SK-B336244A
KNOB OPERATE (D) PART
9-39x
BD-B33623SB2 LID PANEL-P PART
----------When ordering parts, please quote Parts Number, Description and Model Number.----------
