Akai GX-F31

Ill. CONTROLS
1. POWER SWITCH
2. CASSETTE RECEPTACLE
3. FLO TAPE COUNTER, TAPE/TIME SELECTOR and
RESET BUTTON
4. EJECT BUTTON
5.
TAPE POSITION INDICATORS
6. AUTO TAPE TUNING INDICATORS
7. DOLBY Band DOLBY C and FILTER INDICATORS
8. FLO BAR METER with MAXIMUM INPUT LEVEL
INDICATORS
9. OPERATING BUTTONS
PLAY( ►) BUTTON with INDICATOR
STOP ( ■) BUTTON
REWIND ( ... ) BUTTON
FAST FORWARD ( ... ) BUTTON
RECORDING (REC)/PAUSE BUTTON with INDICATOR
AUTO MUTE BUTTON
10. HEADPHONE (PHONES) JACK
11. TIMER START SELECTOR
12. AUTO SYSTEM SELECTOR
4-4

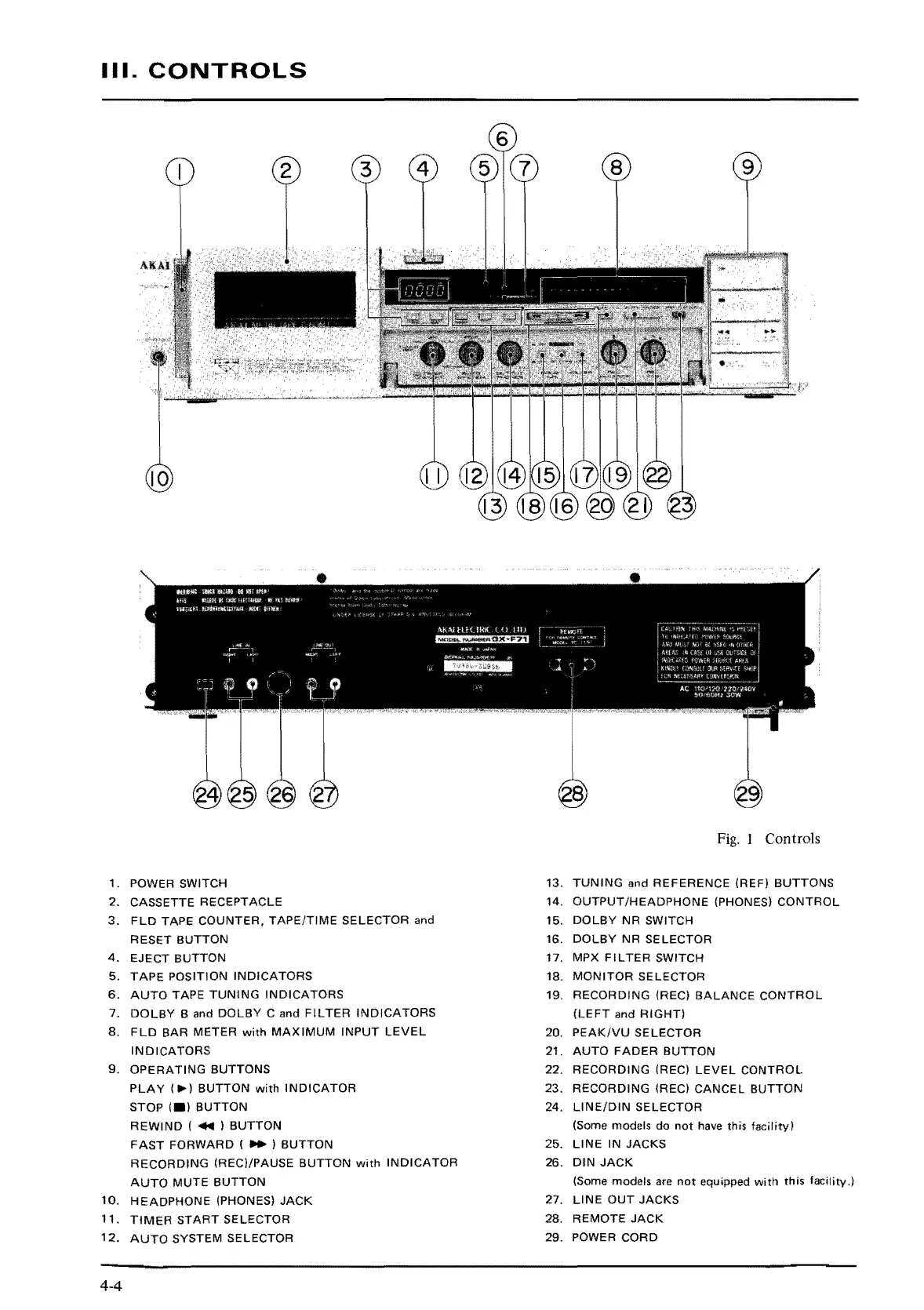

Fig. I Controls
13. TUNING and REFERENCE (REF) BUTTONS
14.
OUTPUT/HEADPHONE (PHONES) CONTROL
15. DOLBY NR SWITCH
16.
DOLBY NR SELECTOR
17. MPX
FILTER SWITCH
18.
MONITOR SELECTOR
1~ RECORDING(REC)BALANCECONTROL
(LEFT and RIGHT)
20. PEAK/VU SELECTOR
21.
AUTO FADER BUTTON
22. RECORDING (REC) LEVEL CONTROL
23. RECORDING (REC) CANCEL BUTTON
24. LINE/DIN SELECTOR
(Some models do not have this facility)
25. LINE IN JACKS
26. DIN
JACK
(Some models are not equipped with this facility.)
27. LINE OUT JACKS
28. REMOTE
JACK
29. POWER CORD
