Akai GXC-750

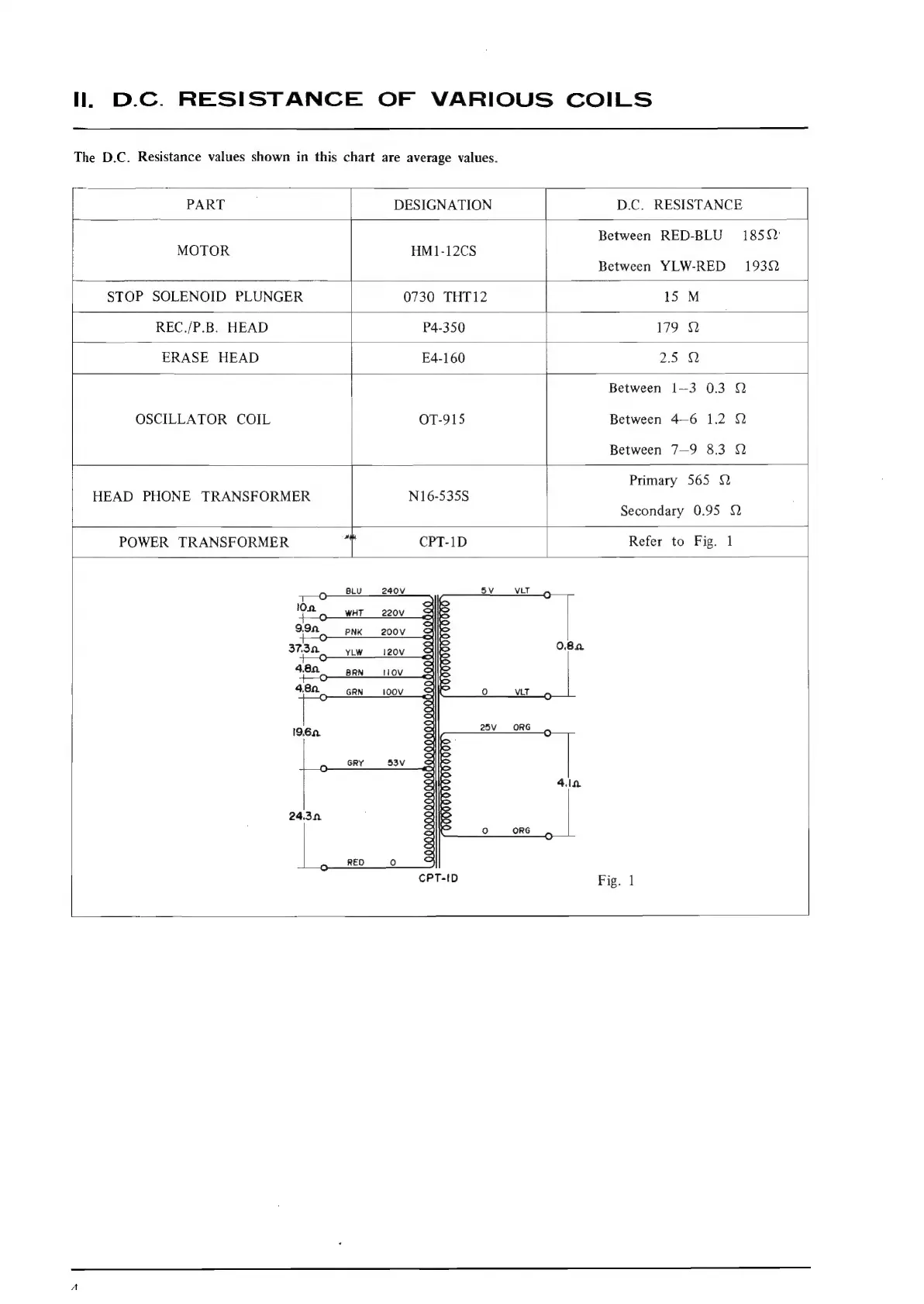

ll. D.C. RESISTANCE OF VARIOUS COILS
The D.C. Resistance values shown in this chart are average values.
PART DESIGNATION D.C. RESISTANCE
Between RED-BLU 18522:
MOTOR HM1-12CS
Between YLW-RED 1930
STOP SOLENOID PLUNGER 0730 THT12 15 M
REC./P.B. HEAD P4-350 179 Q
ERASE HEAD E4-160 2.5 2
Between 1-3 0.3 2
OSCILLATOR COIL OT-915 Between 4—6 1.2
Between 7-9 8.3
Primary 565 2
HEAD PHONE TRANSFORMER N16-535S
Secondary 0.95 Q
POWER TRANSFORMER “* CPT-1D Refer to Fig. 1
CPT-ID
Fig.
1
