Akai MPC Service Manual

3
3
PAD Bank Butons, TRACK MUTE, MODE Buttons,
MAIN
Pads
Press the pads all the way until the aftertouch value (in top left of app) reaches 127 to
pass

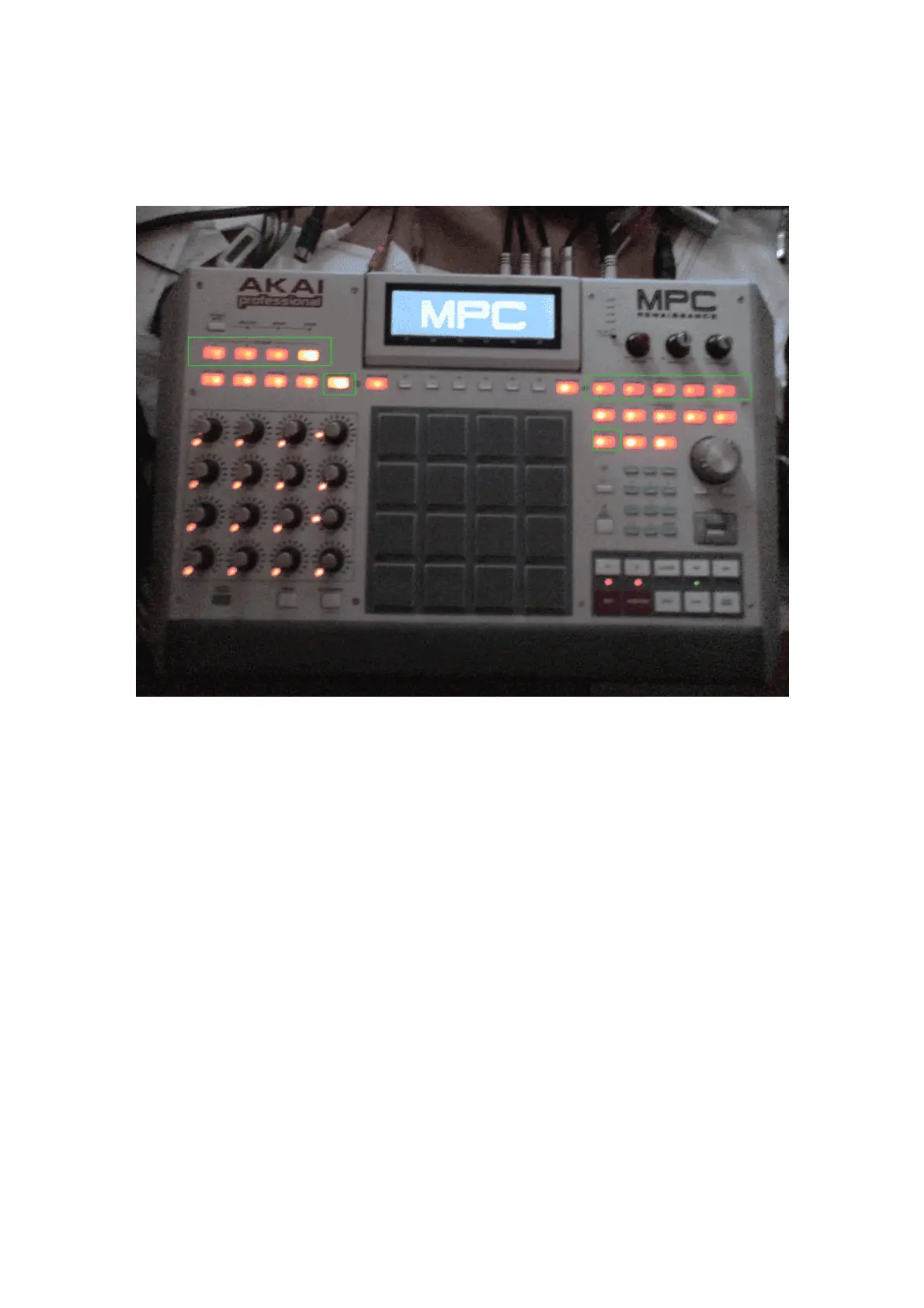

LED Visual Test
Enabling LEDs ON will cause all the LEDs to light with the exception of the INPUT
METER LEDs which are analogue and will be checked during the AUDIO TEST.
You will then Visually confirm all the leds are on.
LCD Visual Test
The LCD screen will light up solid. Confirm all pixels are on.
USB Hub
Put the included folder “test” which contains a file called test.txt (this can be blank text
file of this name if somehow this folder is lost) on to two USB thumb drives and put these
