Akai MPC2000

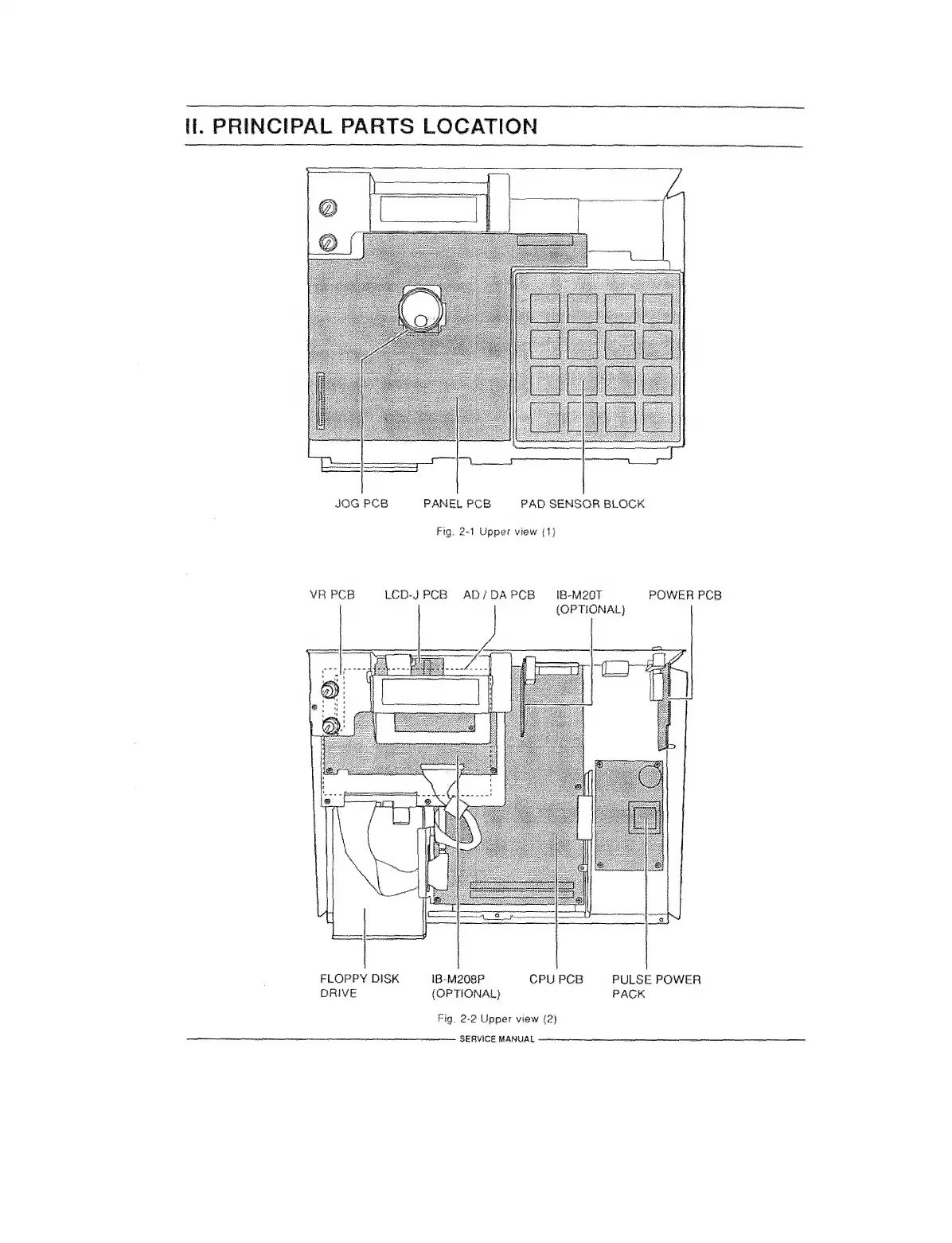

IL. PRINCIPAL PARTS LOCATION
JOG PCB PANEL PCB PAD SENSOR BLOCK
Fig. 2-1 Upper view (1)
VAR PCB LCD-JPCB AD/DAPCB IB-M20T POWER PCB
(OPTIONAL)
FLOPPY DISK IB-M208P CPU PCB PULSE POWER
DRIVE (OPTIONAL) PACK
Fig. 2-2 Upper view (2)
