Akai MPC2000 Service Manual

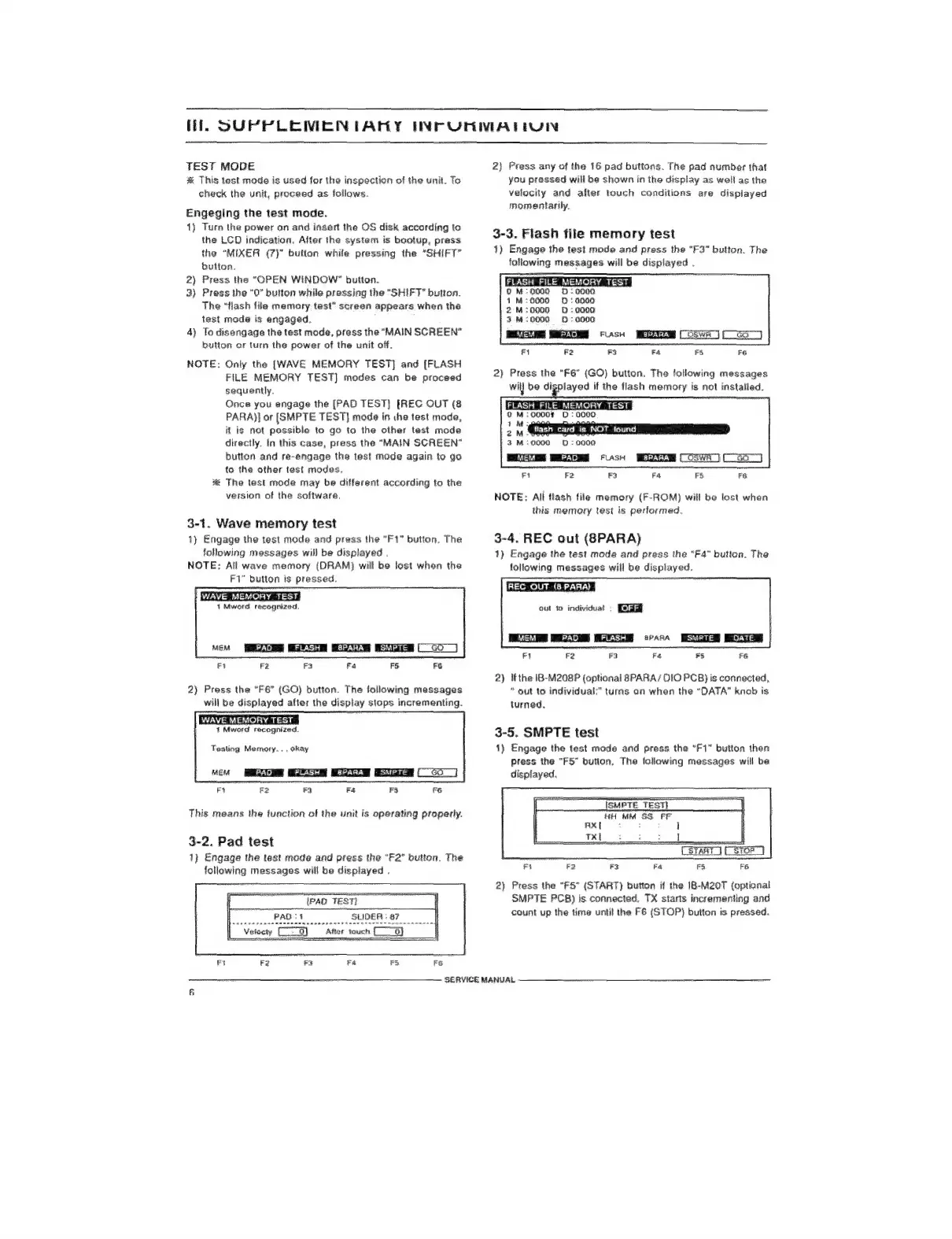

HI, SUFPLOMENIAMT INrUNMALIUN
TEST MODE
& This test mode is used for the inspection of the unit. To
check the unit, proceed as follows.
Engeging the test mode.
1) Turn the power on and insert the OS disk according to
the LCD indication, After the system is bootup, press
the “MIXER (7)" button while pressing the “SHIFT”
button.
2) Press the "OPEN WINDOW" button.
3) Press the "0" button while pressing the "SHIFT" button.
The “flash file memory test" screen appears when the
test mode is engaged. f i
4) To disengage the test mode, press the "MAIN SCREEN"
button or turn the power of the unit off.
NOTE: Only the [WAVE MEMORY TEST] and (FLASH
FILE MEMORY TEST] modes can be proceed
sequently.
Once you engage the [PAD TEST] [REC OUT (8
PARA)] or [SMPTE TEST] mode in ihe test mode,
it is not possible to go to the other test mode
directly. In this case, press the "MAIN SCREEN"
button and re-engage the test mode again to go
to the other test modes.
% The test mode may be different according to the
version of the software.
3-1. Wave memory test
1) Engage the test mode and press the "F1" button, The
following messages will be displayed .
NOTE: All wave memory (DRAM) will be lost when the
F1" button is pressed.
WAVE MEMORY TEST
1 Mword recognized.
MENE 220 Å FLASH Ü orans fl SUPIE CGO
F1 F2 F3 Fa FS Fe
2) Press the "F6" (GO) button. The following messages
will be displayed after the display stops incrementing.
WAVE MEMORY TEST:
1 Mword recognized.
Testing Memory... okay
MEM I MEEZEJJ fl supre ( CO 7]
Fa F2 FS Fa FS Fe
This means the function of the unit is operating properly.
3-2. Pad test
1) Engage the test mode and press the 'F2' button. The
following messages will be displayed ,
{PAD TESTI
PAD :1 SLIDER : 87
Ë Veiocty After touch [TD]
ci o 8
Fi EZ Fa Fá Fa F&
- SERVICE MANUAL
2) Press any of the 16 pad buttons. The pad number that
you pressed will be shown in the display as well as the
velocity and after touch conditions are displayed
momentarily.
3-3. Flash file memory test
1) Engage the test mode and press the "F3" button. The
following messages will be displayed .
|
O M:0000 D:0000
1 M:0000 D:0000
2 M:0000 D:0000
3 M:0000 D:0000
EREU MG coc. MERE LOSE] 50 7]
F1 F2 F3 FA F5 F6
2) Press the "F6" (GO) button. The following messages
will be displayed if the flash memory is not installed,
FLASH FILE MEMORY TEST
00
F1 F2 F3 Fa FS FB
NOTE: All flash file memory (F-ROM) will be lost when
this memory test is performed.
3-4. REC out (SPARA)
1) Engage the test mode and press the "F4" button. The
following messages will be displayed.
REC OUT (8 PARA)
out ta individual : Esta
EES Pao BENI spana sverte fi onte |
FI F2 Fa Fa F5 F6
2) ifthe IB-M208P (optional BPARA/ DIO PCB) is connected,
" out to individual:” turns on when the "DATA" knob is
turned.
3-5. SMPTE test
1) Engage the test mode and press the "F1" button then
press the "F5" button, The following messages will be
displayed.
2) Press the "F5" (START) button if the IB-M20T (optional
SMPTE PCB) is connected. TX starts incrementing and
count up the time until the F6 (STOP) button is pressed.

Akai MPC2000 Specifications

General

Type	Sampler/Sequencer
Polyphony	32 voices
Sampling Rate	44.1 kHz
Bit Depth	16-bit
Memory	2 MB (expandable to 32 MB)
Pads	16 velocity-sensitive pads
Sequencer	Yes
Sequencer Resolution	96 PPQN
MIDI	In/Out/Thru
Display	Backlit LCD
Storage	3.5" floppy disk drive
Effects	No built-in effects
Outputs	8 individual outputs
Inputs	2 inputs
Audio Inputs	2 (L/R)
Power Supply	Internal
