Akai MPD218 Service Manual

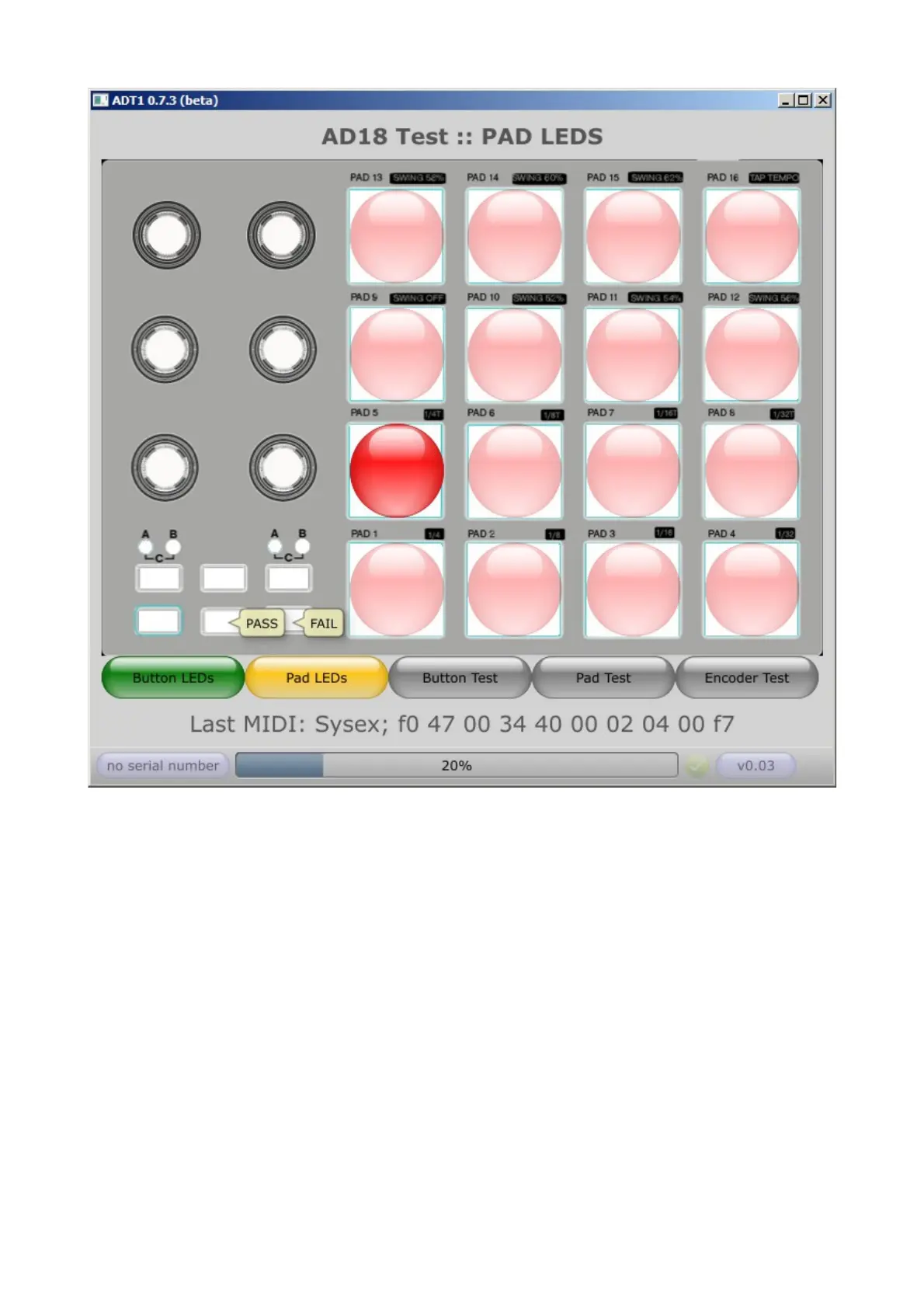

In each case, the ADT1 Manufacturing Test app will send a message to flash LEDs on the
MPD218. The User interface will indicate which LEDs are flashing and what colour they
should be. The Tester should indicate whether the test passed by pressing the UI controls
indicated by the “bubble” messages.
– Test Passed: press the control indicated by “PASS” bubble message.
– Test Failed: press the control indicated by “FAIL” bubble message.
The LED Test has two phases:
1. Animated test where the LEDs are lit one at a time. This is to check for shorts
between LEDs.
2. ALL_LEDS_ON test where all the LEDs are lit. This is to help check for faulty
LEDs.

Akai MPD218 Specifications

General

Product color	Black
Number of controls	6
Drum pads backlight	Yes
Number of drum pads	16
Built-in optical drive	No
USB connector type	USB Type-B
Current	1 A
Input voltage	6 V
Power supply type	USB
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows Vista Home Premium, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows Vista Home Premium x64, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows Vista Ultimate, Windows 7 Home Basic x64, Windows 8 Pro, Windows Vista Ultimate x64, Windows 7 Home Premium, Windows 8 Pro x64, Windows XP Home, Windows 7 Home Premium x64, Windows 8 x64, Windows XP Home x64, Windows 7 Professional, Windows Vista Business, Windows XP Professional, Windows 7 Professional x64, Windows Vista Business x64, Windows XP Professional x64, Windows 7 Starter, Windows Vista Enterprise, Windows 7 Starter x64, Windows Vista Enterprise x64, Windows 7 Ultimate, Windows Vista Home Basic, Windows 7 Ultimate x64, Windows Vista Home Basic x64

Weight and Dimensions

Depth	201 mm
Width	239 mm
Height	41 mm
Weight	750 g
