Akai MPD218 Service Manual

DISASSEMBLY PROCEDURES

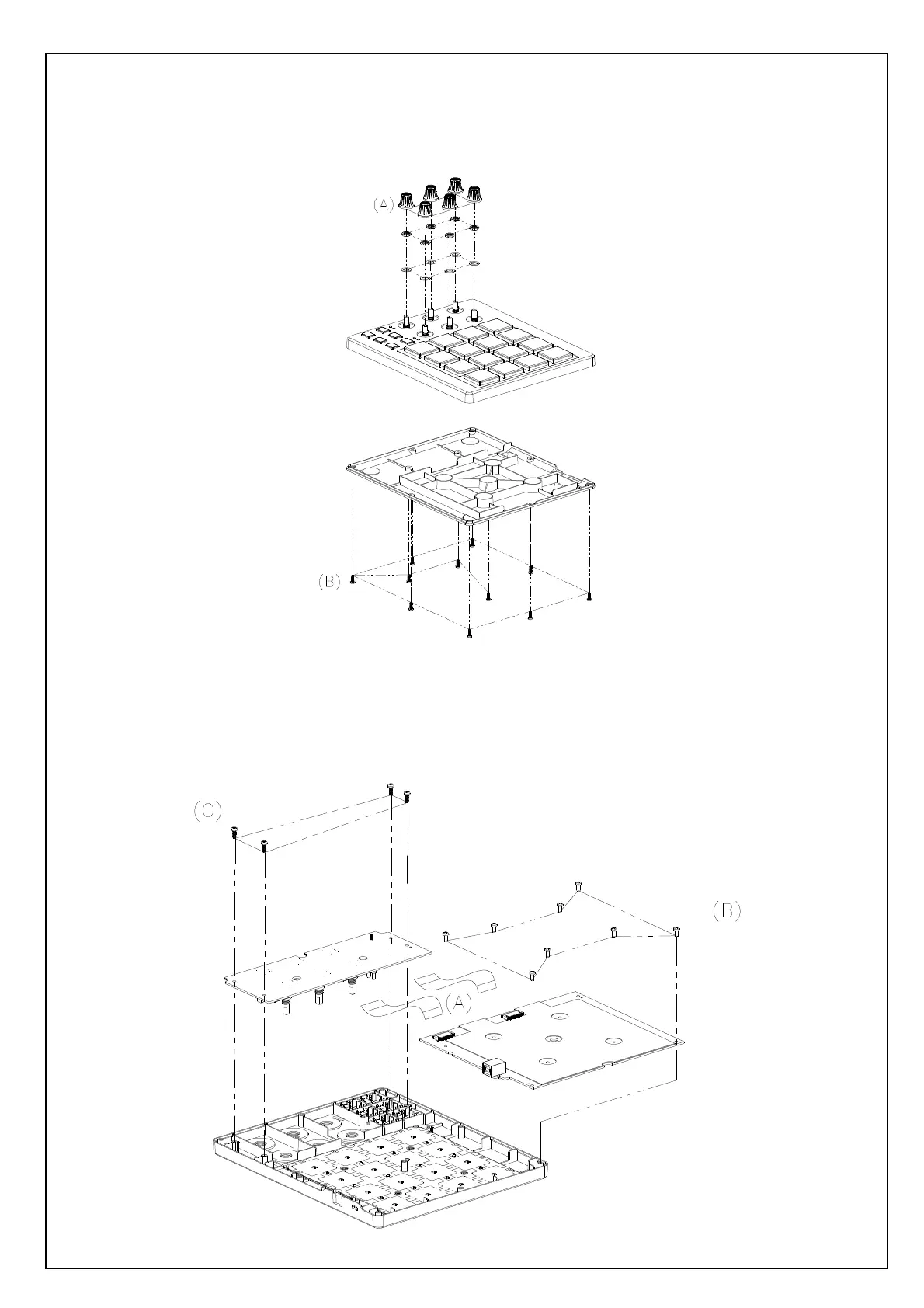

1. DISASSEMBLE THE BOTTOM PANEL AND KNOB.
(A) REMOVE 6 KNOBS, 6 NUTS AND 6 WASHERS FROM THE TOP PANEL.
(B) REMOVE 11 SCREWS FROM THE BOTTOM PANEL.
(Fig1)
2. DISASSEMBLE THE FUNCTION PCB ASSEMBLY AND FSR PCB ASSEMBLY.
(A) UNPLUG 2 PCS FFC CABLE FROM THE FSR PCB ASSEMBLY AND FUNCTION PCB ASSEMBLY.
(B) REMOVE 8 SCREWS FROM THEFSR PCB ASSEMBLY.
(C) REMOVE 4 SCREWS FROM THE FUNTION PCB ASSEMBLY.
(Fig2)

Akai MPD218 Specifications

General

Product color	Black
Number of controls	6
Drum pads backlight	Yes
Number of drum pads	16
Built-in optical drive	No
USB connector type	USB Type-B
Current	1 A
Input voltage	6 V
Power supply type	USB
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows Vista Home Premium, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows Vista Home Premium x64, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows Vista Ultimate, Windows 7 Home Basic x64, Windows 8 Pro, Windows Vista Ultimate x64, Windows 7 Home Premium, Windows 8 Pro x64, Windows XP Home, Windows 7 Home Premium x64, Windows 8 x64, Windows XP Home x64, Windows 7 Professional, Windows Vista Business, Windows XP Professional, Windows 7 Professional x64, Windows Vista Business x64, Windows XP Professional x64, Windows 7 Starter, Windows Vista Enterprise, Windows 7 Starter x64, Windows Vista Enterprise x64, Windows 7 Ultimate, Windows Vista Home Basic, Windows 7 Ultimate x64, Windows Vista Home Basic x64

Weight and Dimensions

Depth	201 mm
Width	239 mm
Height	41 mm
Weight	750 g
