Akai MPD226 Service Manual

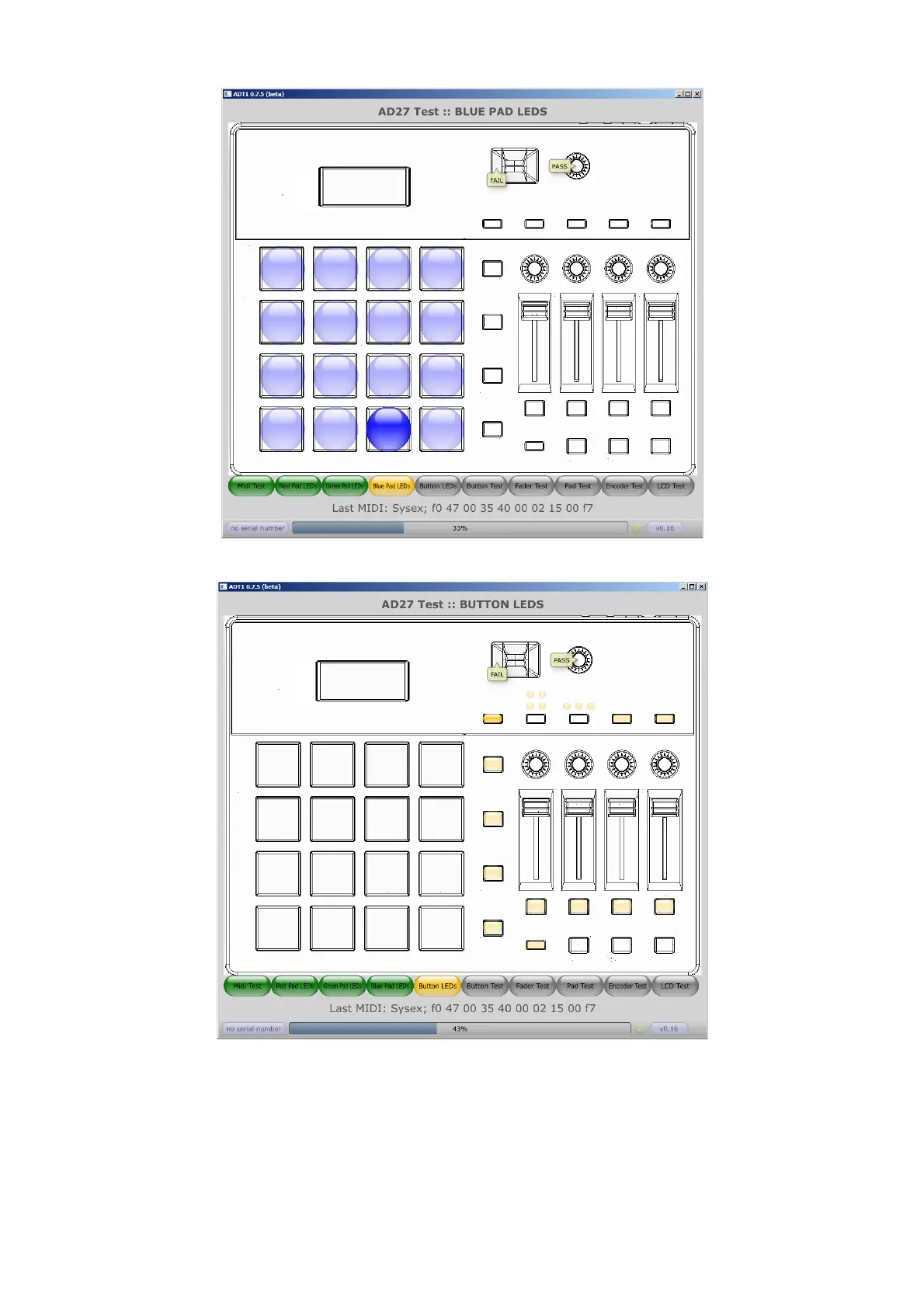

In each case, the ADT1 Manufacturing Test app will send a message to flash LEDs on the
MPD226. The User interface will indicate which LEDs are flashing and what colour they
should be. The Tester should indicate whether the test passed by pressing the UI controls
indicated by the “bubble” messages.
– Test Passed: press the control indicated by “PASS” bubble message.
– Test Failed: press the control indicated by “FAIL” bubble message.

Akai MPD226 Specifications

General

Current	1 A
Input voltage	6 V
Power supply type	AC
Product color	Black
Number of controls	36
Drum pads backlight	Yes
Number of drum pads	16
Number of mixer channels	4 channels
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	333 mm
Height	48 mm
Weight	1300 g
