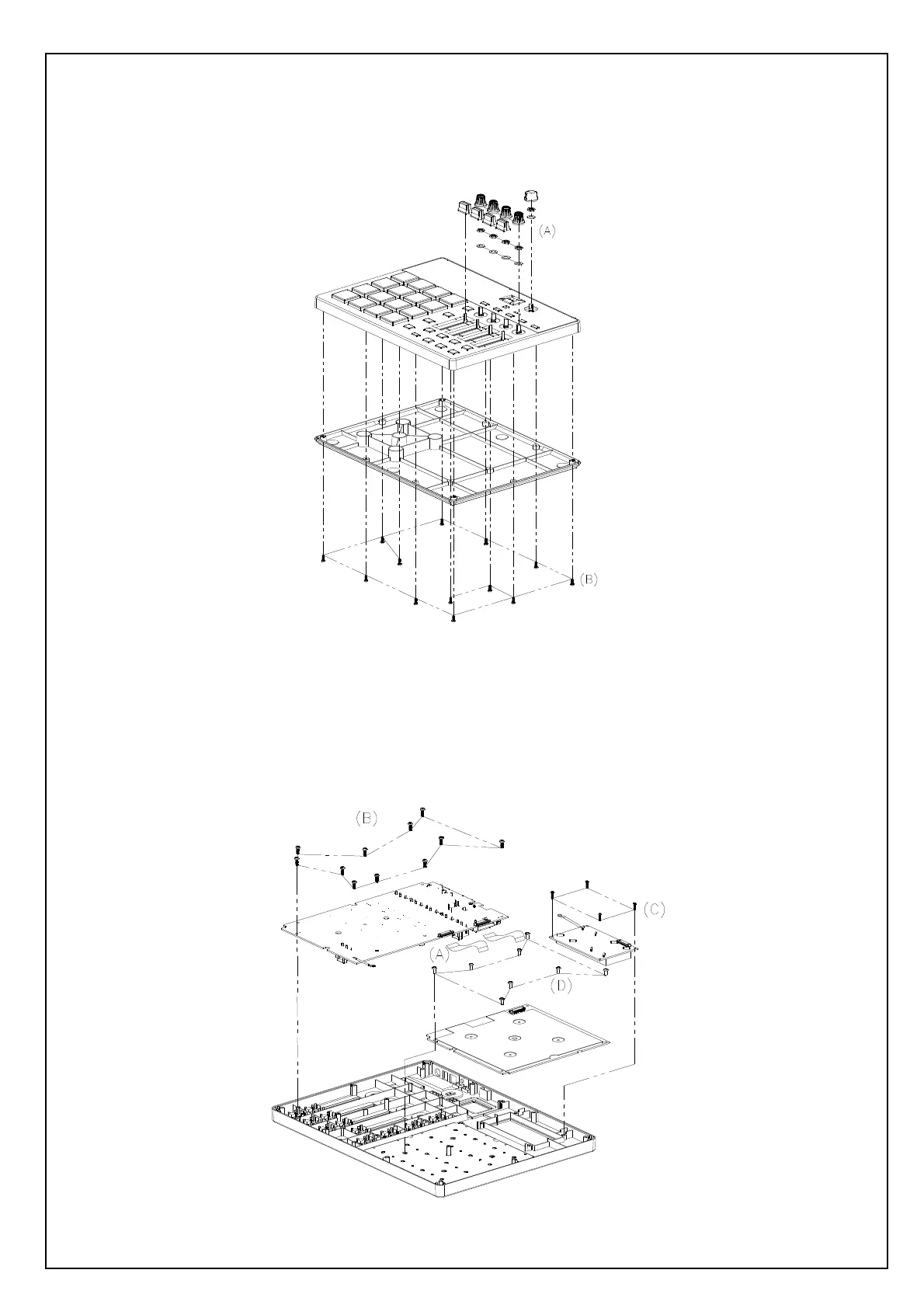

DISASSEMBLY PROCEDURES
1.
DISASSEMBLE THE BOTTOM PANEL, KNOB AND SLIDER VR CAP.
(A) REMOVE 5 KNOBS, 5 NUTS, 5 WASHERS AND 4 PCS SLIDER VR CAP FROM THE TOP PANEL.
(B) REMOVE 13 SCREWS FROM THE BOTTOM PANEL.
(Fig1)
2.
DISASSEMBLE THE TOP PCB ASSEMBLY, FSR PCB ASSEMBLY AND LCM.
(A)REMOVE 2 PCS CABLE FROM THE TOP PCB ASSEMBLY AND FSR PCB ASSEMBLY.
(B)REMOVE 11 SCREWS FROM THE TOP PCB ASSEMBLY.
(C)REMOVE 4 SCREWS FROM THE LCM.
(D)REMOVE 8 SCREWS FROM THE FSR PCB ASSEMBLY.
(Fig2)
