Akai S1100 Service Manual

25X24X23X22)
(2 I
20 19 18
17
16X15X14

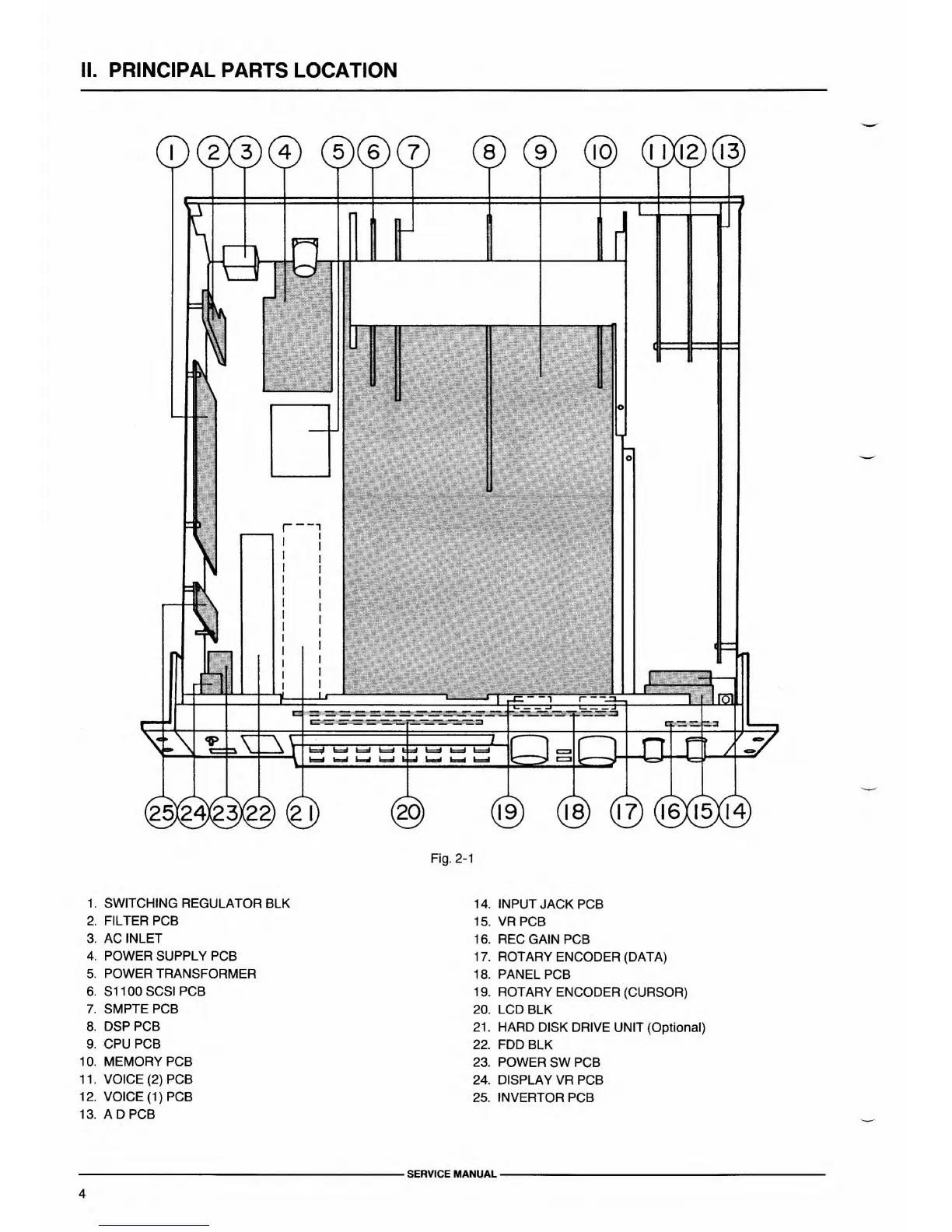

Fig.
2-1
1. SWITCHING REGULATOR
BLK
2. FILTER PCB
3. AC INLET
4. POWER SUPPLY PCB
5. POWER TRANSFORMER
6.
S1100 SCSI PCB
7. SMPTEPCB
8. DSP PCB
9. CPU PCB
10. MEMORY
PCB
11. VOICE
(2)
PCB
12. VOICE
(1)
PCB
13. AD PCB
14. INPUT
JACK PCB
15. VR PCB
16. REC
GAIN PCB
17. ROTARY
ENCODER (DATA)
18. PANEL
PCB
19. ROTARY
ENCODER (CURSOR)
20. LCD
BLK
21. HARD
DISK DRIVE UNIT (Optional)
22. FDD BLK
23. POWER
SW PCB
24. DISPLAY VR PCB
25. INVERTOR PCB
SERVICE MANUAL
4

Akai S1100 Specifications

General

Type	Digital Sampler
Polyphony	32 voices
Sampling Rate	44.1 kHz
Bit Depth	16-bit
Memory	2 MB (expandable to 32 MB)
Display	Backlit LCD
Effects	No
Outputs	8 individual outputs, stereo output
MIDI	In, Out, Thru
Storage	SCSI
