Vill.

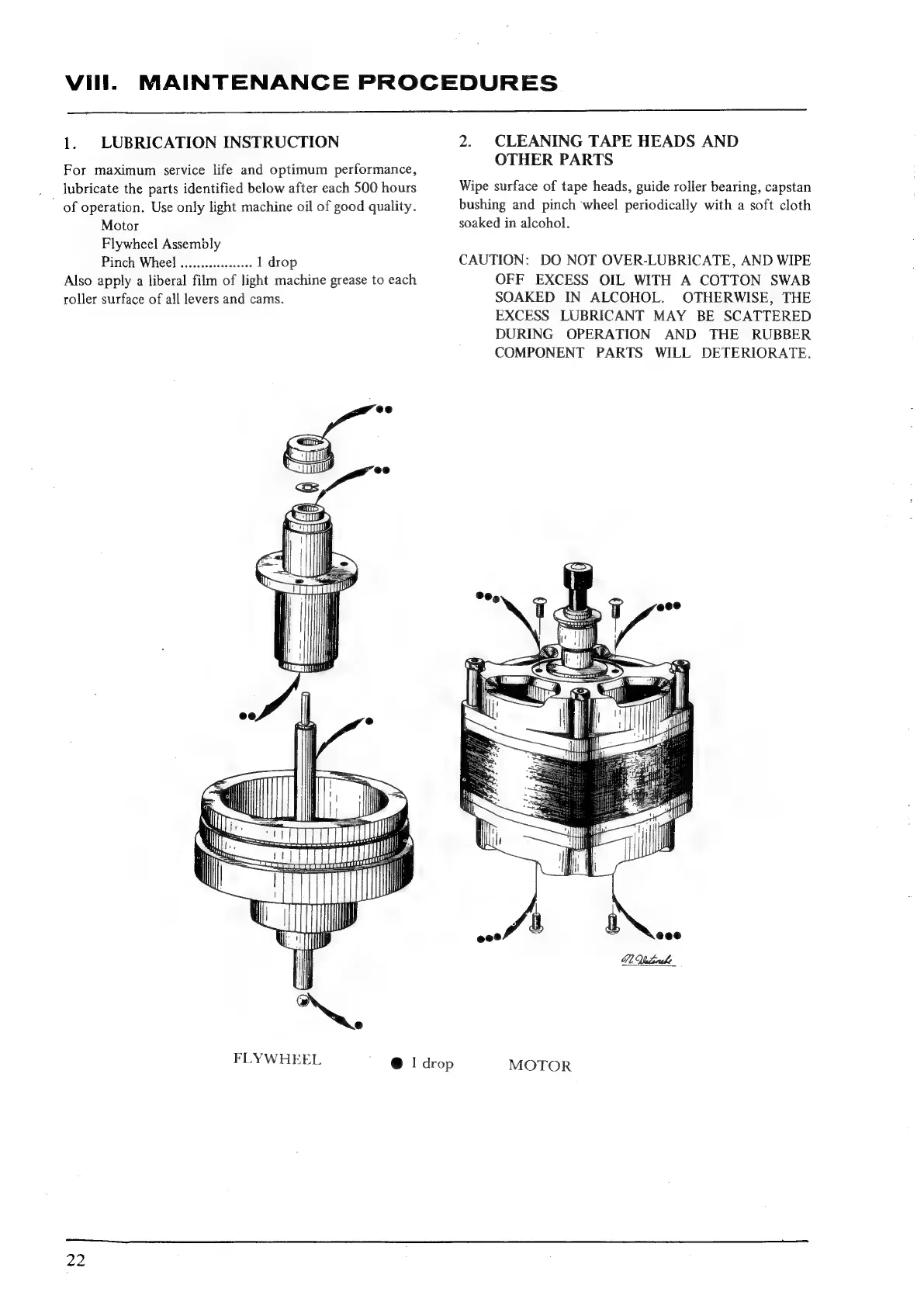

MAINTENANCE PROCEDURES
1. LUBRICATION INSTRUCTION
For maximum service life and optimum performance,
_ lubricate the parts identified below after each 500 hours
of operation. Use only light machine oil of good quality.
Motor
Flywheel Assembly
Pinch Wheel ..............0-. 1 drop
Also apply a liberal film of light machine grease to each
roller surface of all levers and cams.
FLYWHEEL
22
@ | drop
2. CLEANING TAPE HEADS AND
OTHER PARTS
Wipe surface of tape heads, guide roller bearing, capstan
bushing and pinch wheel periodically with a soft cloth
soaked in alcohol.
CAUTION: DO NOT OVER-LUBRICATE, AND WIPE
OFF EXCESS OIL WITH A COTTON SWAB
SOAKED IN ALCOHOL. OTHERWISE, THE
EXCESS LUBRICANT MAY BE SCATTERED
DURING OPERATION AND THE RUBBER
COMPONENT PARTS WILL DETERIORATE.
MOTOR
