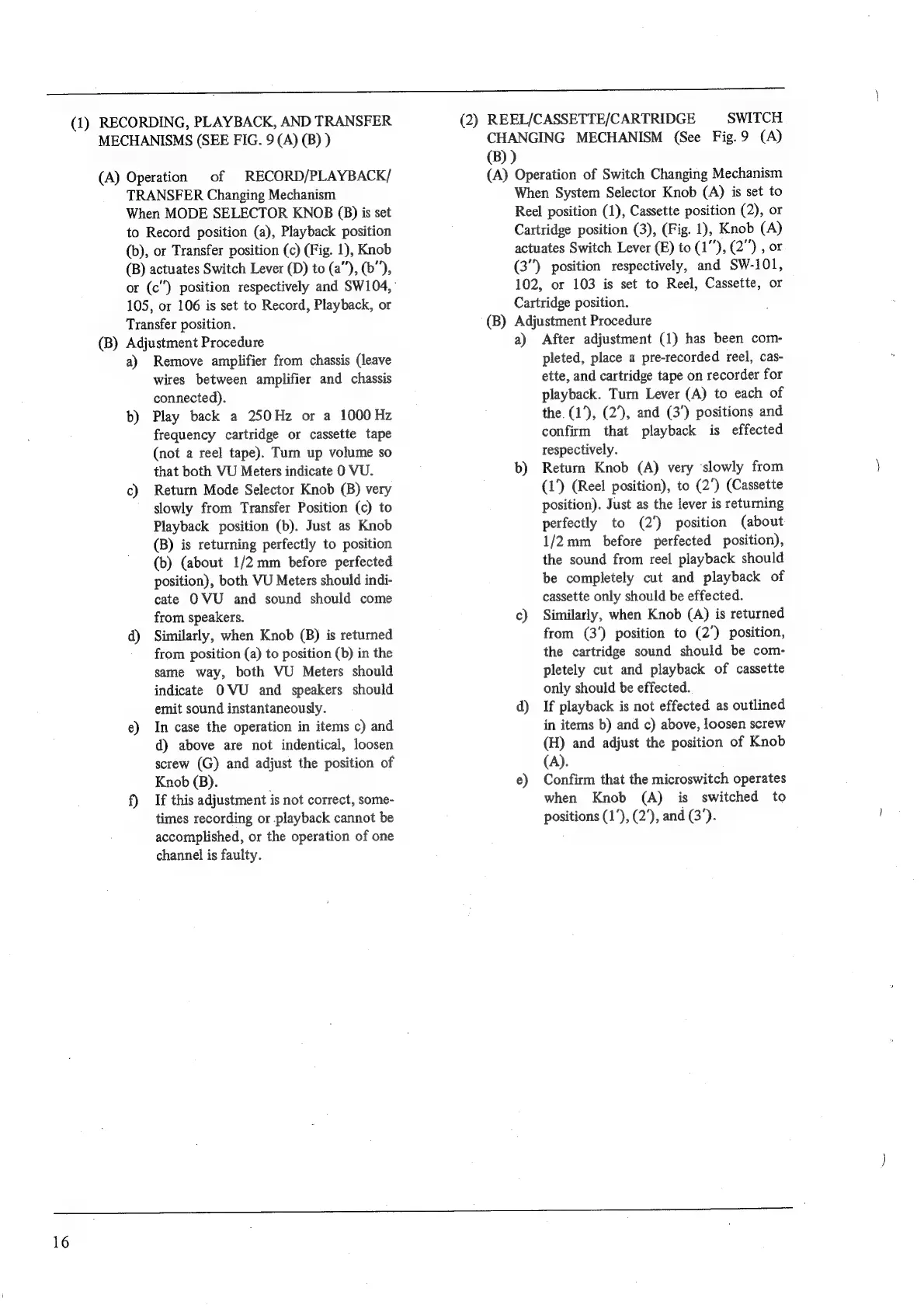

RECORDING,
PLAYBACK,
AND
TRANSFER
MECHANISMS
(SEE
FIG.
9
(A)
(B)
)
(2)
REEL/CASSETTE/CARTRIDGE
SWITCH
CHANGING
MECHANISM
(See
Fig.9
(A)
(A)
Operation
of
(B
——
RECORD/PLAYBACK/
TRANSFER
Changing
Mechanism
When
MODE
SELECTOR
KNOB
(B)
is
set
to
Record
position
(a),
Playback
position
(b),
or
Transfer
position
(c)
(Fig.
1),
Knob
(B)
actuates
Switch
Lever
(D)
to
(a”),
(b”),
or
(c”)
position
respectively
and
SW104,'
105,
or
106
is
set
to
Record,
Playback,
or
Transfer
position.
Adjustment
Procedure
a)
Remove
amplifier
from
chassis
(leave
wires
between
amplifier
and
chassis
connected).
b)
Play
back
a
250Hz
or
a
1000
Hz
frequency
cartridge
or
cassette
tape
(not
a
reel
tape).
Tum
up
volume
so
that
both
VU
Meters
indicate
0
VU.
c)
Return
Mode
Selector
Knob
(B)
very
slowly
from
Transfer
Position
(c)
to
Playback
position
(b).
Just
as
Knob
(B)
is
returning
perfectly
to
position
(b)
(about
1/2
mm
before
perfected
position),
both
VU
Meters
should
indi-
cate
OVU
and
sound
should
come
from
speakers.
d)
Similarly,
when
Knob
(B)
is
returned
from
position
(a)
to
position
(b)
in
the
same
way,
both
VU
Meters should
indicate
OVU
and
speakers
should
emit
sound
instantaneously.
e)
In
case
the
operation
in
items
c)
and
d)
above
are
not
indentical,
loosen
screw
(G)
and
adjust
the
position
of
Knob
(B).
f)
If
this
adjustment
is
not
correct,
some-
times
recording
or
playback
cannot
be
accomplished,
or
the
operation
of
one
channel
is
faulty.
(B))
(A)
Operation
of
Switch
Changing
Mechanism
(B)
When
System
Selector
Knob
(A)
is
set
to
Reel
position
(1),
Cassette
position
(2),
or
Cartridge
position
(3),
(Fig.
1),
Knob
(A)
actuates
Switch
Lever
(E)
to
(1),
(2”),
or
(3")
position
respectively,
and
SW-101,
102,
or
103
is
set
to
Reel,
Cassette,
or
Cartridge
position.
Adjustment
Procedure
a)
After
adjustment
(1)
has
been
com-
pleted,
place
a
pre-recorded
reel,
cas-
ette,
and
cartridge
tape
on
recorder
for
playback.
Turn
Lever
(A)
to
each
of
the
(1),
(2),
and
(3’)
positions
and
confirm
that
playback
is
effected
respectively.
b)
Return
Knob
(A)
very
‘slowly
from
(1)
(Reel
position),
to
(2')
(Cassette
position).
Just
as
the
lever
is
returning
perfectly
to
(2')
position
(about
1/2mm
before
perfected
position),
the
sound
from
reel
playback
should
be
completely
cut
and
playback
of
cassette
only
should
be
effected.
c)
Similarly,
when
Knob
(A)
is
returned
from
(3')
position
to
(2’)
position,
the
cartridge
sound
should
be
com-
pletely
cut
and
playback
of
cassette
only
should
be
effected.
d)
If
playback
is
not
effected
as
outlined
in
items
b)
and
c)
above,
loosen
screw
(H)
and
adjust
the
position
of
Knob
(A).
e)
Confirm
that
the
microswitch
operates
when
Knob
(A)
is
switched
to
positions
(1'),
(2'),
and
(3’).
