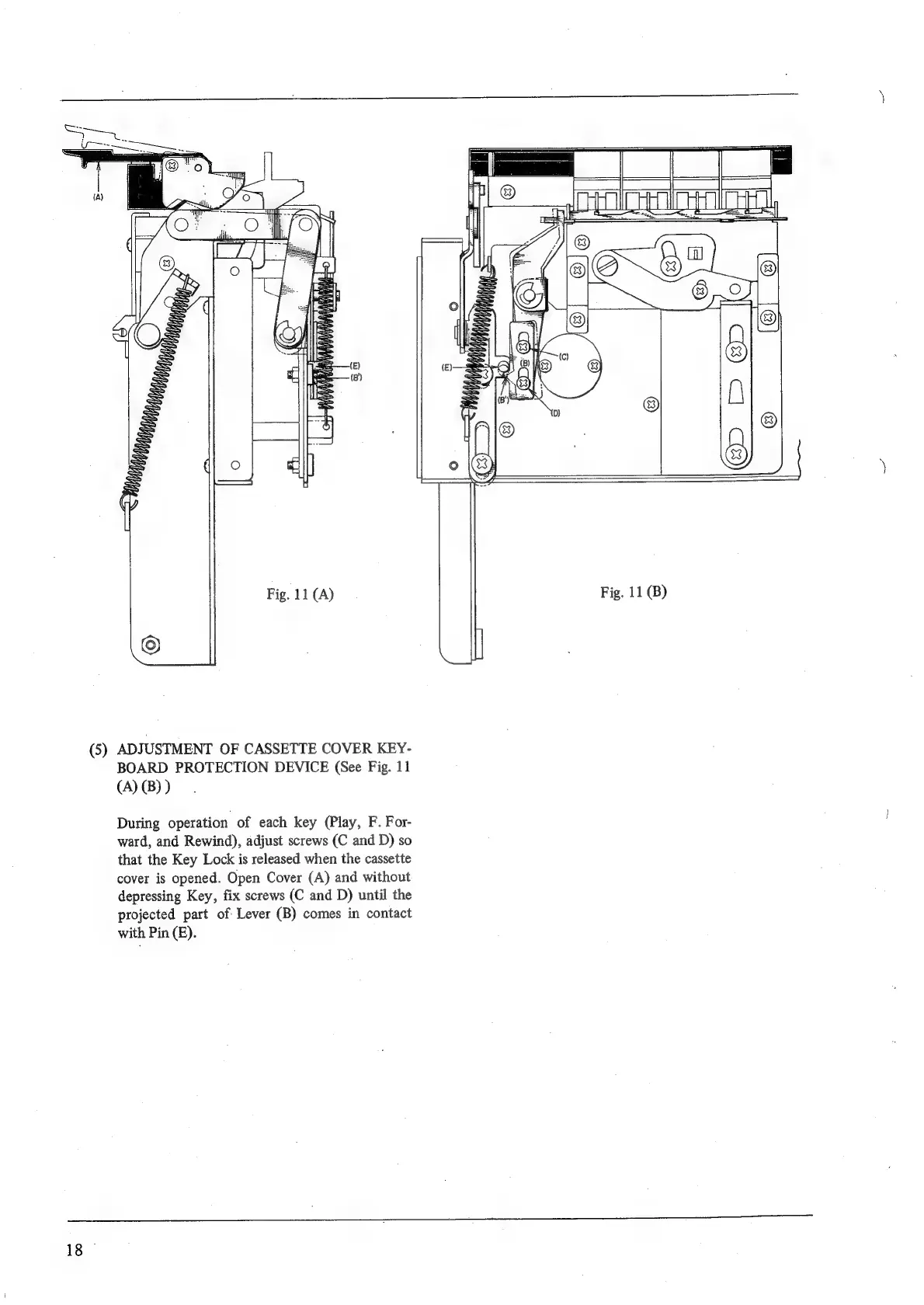

Fig.
11
(A)
(5)
ADJUSTMENT
OF
CASSETTE
COVER
KEY-
BOARD
PROTECTION
DEVICE
(See
Fig.
11
(A)
B))
During
operation
of
each
key
(Play,
F.
For-
ward,
and
Rewind),
adjust
screws
(C
and
D)
so
that
the
Key
Lock
is
released
when
the
cassette
cover
is
opened.
Open
Cover
(A)
and
without
depressing
Key,
fix
screws
(C
and
D)
until
the
projected
part
of
Lever
(B)
comes
in
contact
with
Pin
(E).
13
Ne
E/aeo2
°
C,
L-—
@,2
=a}
|@
®
(E)
{
2
ie
ci
&
RN
/
|
®
°
3
&
|
Fig.
11
(B)
