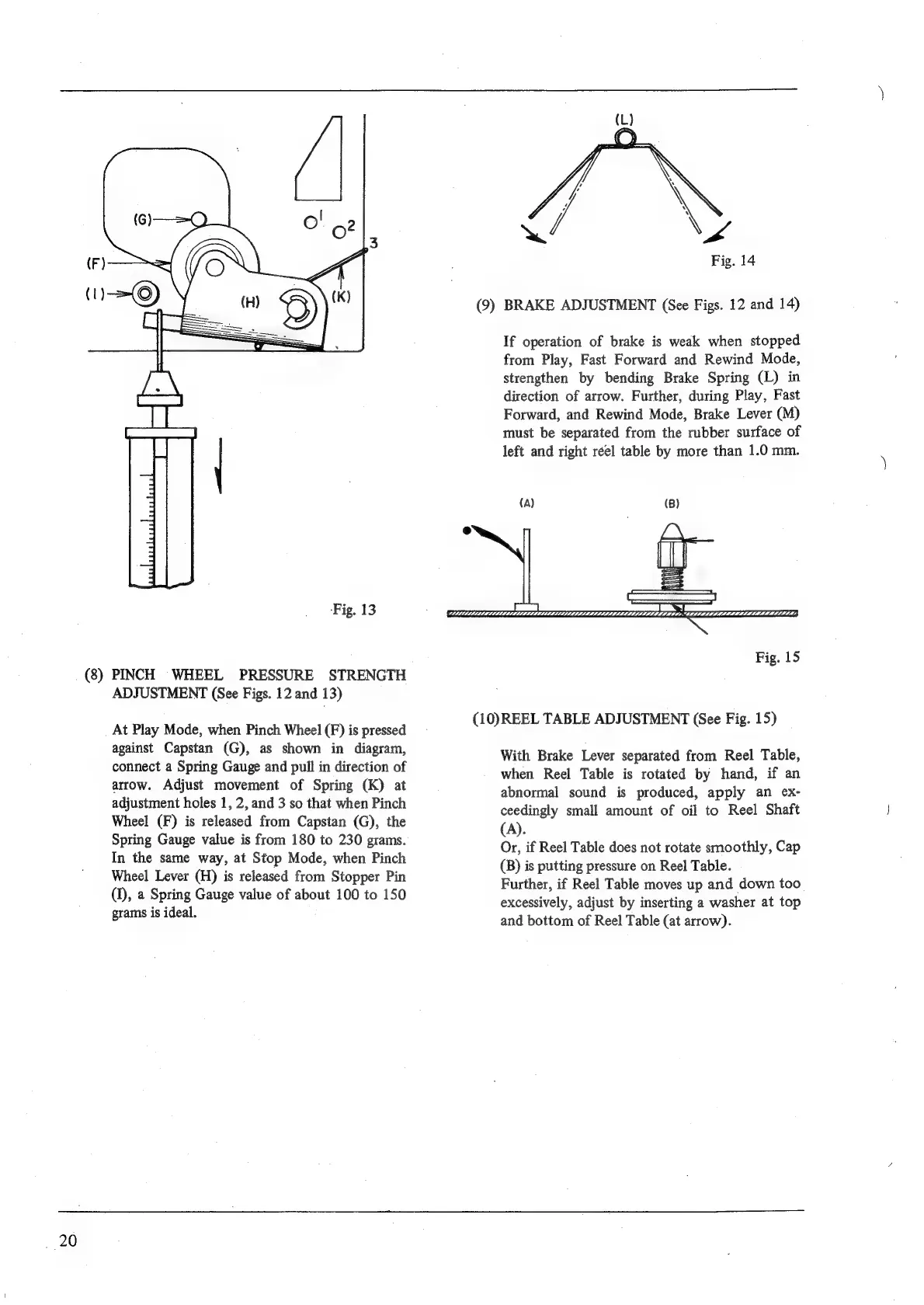

Fig. 13
(8) PINCH WHEEL PRESSURE STRENGTH
ADJUSTMENT (See Figs. 12 and 13)
At Play Mode, when Pinch Wheel (F) is pressed
against Capstan (G), as shown in diagram,
connect a Spring Gauge and pull in direction of
arrow. Adjust movement of Spring (K) at
adjustment holes 1, 2, and 3 so that when Pinch
Wheel (F) is released from Capstan (G), the
Spring Gauge value is from 180 to 230 grams.
In the same way, at Stop Mode, when Pinch
Wheel Lever (H) is released from Stopper Pin
(D, a Spring Gauge value of about 100 to 150
grams is ideal.
(L)
oN
Fig. 14
(9) BRAKE ADJUSTMENT (See Figs. 12 and 14)
If operation of brake is weak when stopped
from Play, Fast Forward and Rewind Mode,
strengthen by bending Brake Spring (L) in
direction of arrow. Further, during Play, Fast
Forward, and Rewind Mode, Brake Lever (M)
must be separated from the rubber surface of
left and right reel table by more than 1.0 mm.
(A) (B)
ddhdaddddadiadidddaiidiiadadddadiadadiaiiiiiivadirigiiddaiddadadadadddabsiadiaas
Fig. 15
(10)REEL TABLE ADJUSTMENT (See Fig. 15)
With Brake Lever separated from Reel Table,
when Reel Table is rotated by hand, if an
abnormal sound is produced, apply an ex-
ceedingly small amount of oil to Reel Shaft
(A).
Or, if Reel Table does not rotate smoothly, Cap
(B) is putting pressure on Reel Table.
Further, if Reel Table moves up and down too
excessively, adjust by inserting a washer at top
and bottom of Reel Table (at arrow).
20
